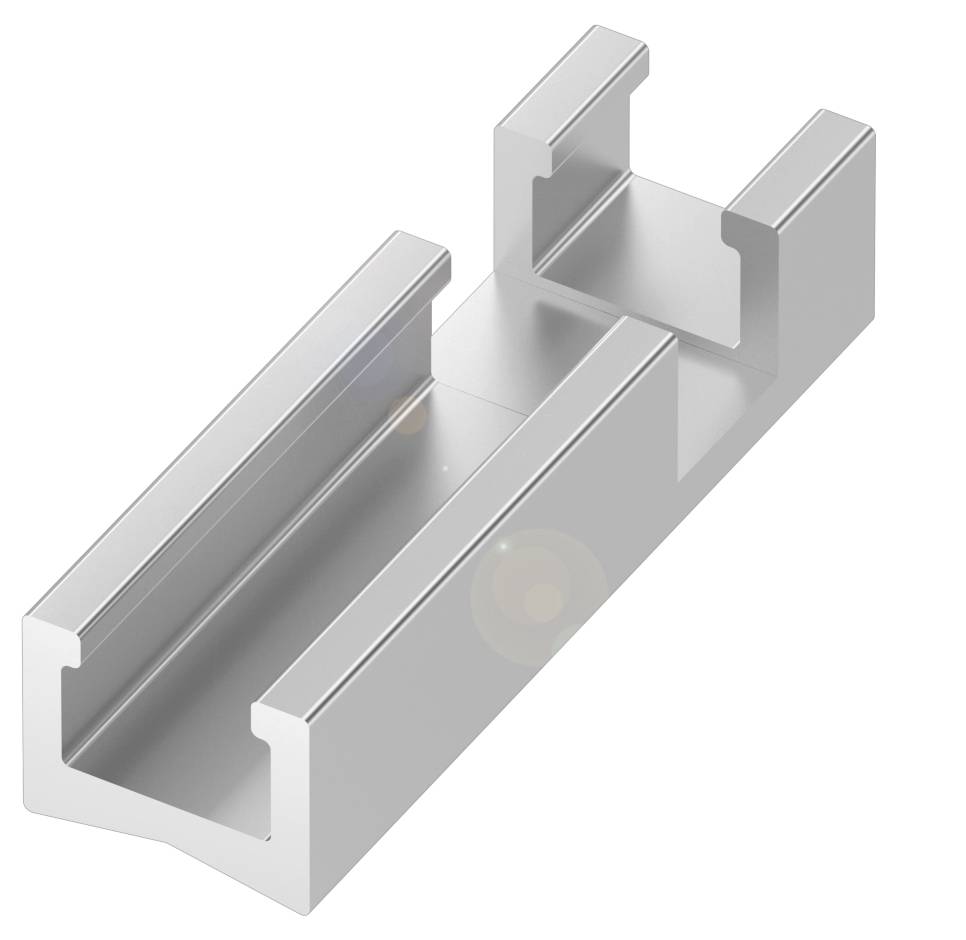

BALLUFF BAM01Y9 Support bracket BAM01Y9 1 pc(s)
EAN:
Part number:
Item no:
Product type
Support bracket
Type
BAM01Y9
Content
1 pc(s)
Length
29.00 mm
Width
8.75 mm
Datasheet (PDF)
Highlights & Details
Balluff BAM01Y9 Angle bracket for magnetic sensors
- Functional principle: BMF retaining bracket
- Ambient temperature -40...85 °C
- Use: For magnetic field sensors BMF 307
- For BMF 235 magnetic field sensors
- Use: Pneumatic cylinders, round without groove or drawbar
- Piston diameter ≤8 - 110 mm
- Material: Aluminium
Technical specifications
- Main features:Application: Pneumatic cylinders, round without groove or drawbar
- Piston diameter ≤8 - 110 mm
- Functional principle: BMF retaining bracket
- Material: Aluminium
- Ambient temperature -40...85 °C
- Use: For magnetic field sensors BMF 307
- For BMF 235 magnetic field sensors
- Additional features:
- Functional principle: BMF retaining bracket
- Scope of delivery: Fastening part|mounting bracket
- Application: For magnetic field sensors BMF 307|for magnetic field sensors BMF 235
- Material: Aluminium
- Dimensions 8.75 x 6.63 x 29 mm
- Tightening torque 0.4 Nm
- Aluminium casing material
- Ambient temperature -40...85 °C
- Tightening torque clamp screw 1.2 Nm
- Shape: Fixing bracket
- Application: Pneumatic cylinders, round without groove|or drawbar|Piston diameter ≤8 - 110 mm
- Mounting sensor: Cylinder screw in sensor|integrated|angular screwdriver ISO 2936|1.5
- Mounting bracket: Hose clamp made of stainless|steel 1.4301
- Product type
Support bracket
- Type
BAM01Y9
- Content
1 pc(s)
- Length
29.00 mm
- Width
8.75 mm
- Height
6.63 mm
- Enclosure material
Aluminium
- Material
Aluminium
Documents & Downloads
Datasheet
Datasheet 3417895 BALLUFF BAM01Y9 Support bracket BAM01Y9 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417895 BALLUFF BAM01Y9 Support bracket BAM01Y9 1 pc(s)
Description
Our sensor holders can be combined with the mounting system BMS. The high-quality sensor holders are designed and tested for Balluff magnetic field sensors. They are characterized by precision and durability. Functional principle=BMF retaining bracket, application=pneumatic cylinder, round without groove or drawbar diameter?8 - 110 mm, use=for magnetic field sensors BMF 307 for magnetic field sensors BMF 235, material=aluminum, ambient temperature=-40...85 °C
This text is machine translated.
This text is machine translated.
