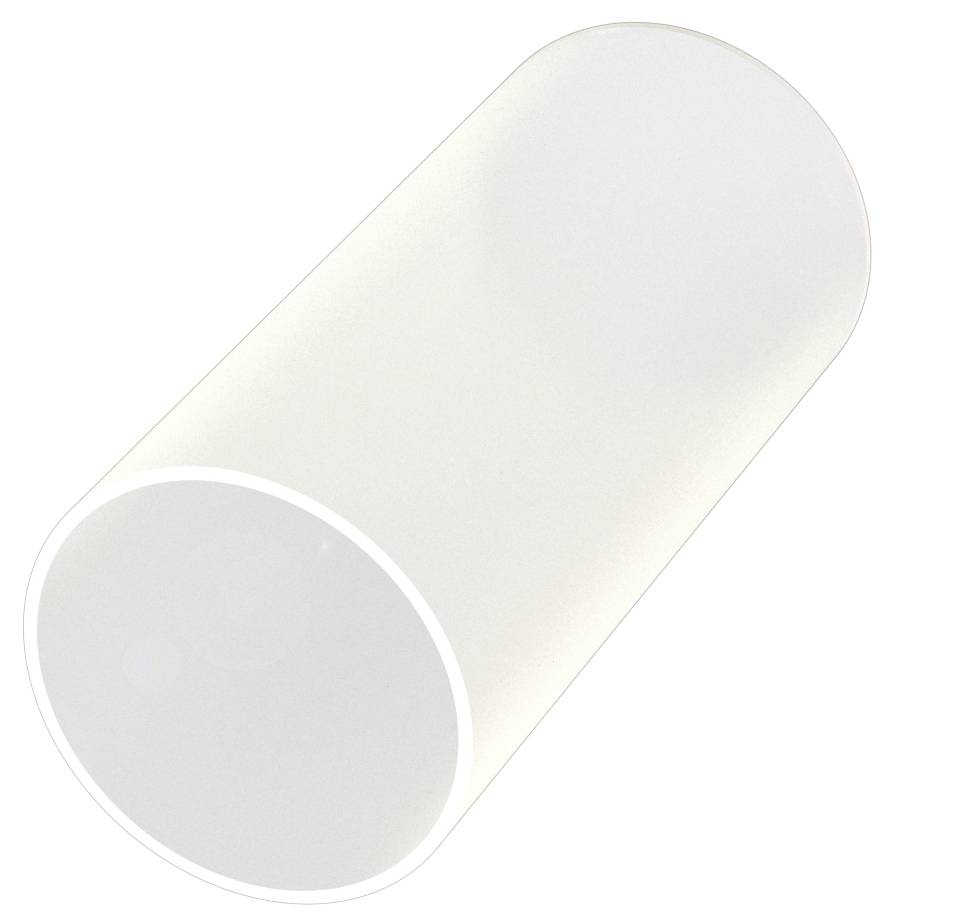

BALLUFF BAM0217 Silicone hose 1 pc(s)
EAN:
Part number:
Item no:
Product type
Silicone hose
Manufacturer part #
BAM0217
Content
1 pc(s)
Length
16000.00 mm
Max. temperature
200 °C
Datasheet (PDF)
Highlights & Details
Balluff BAM0217 Protective hoses for cables
Technical specifications
- Main features:Dimensions: Ø 53.2 x 16000 mm
- Short description: Silicone tube
- Material: Silicone 60 white, translucent
- Ambient temperature -40...200 °C
- Use: For cable protection
- For welding protection
- Additional features:
- Use: For cable protection|for welding protection
- Material: Silicone 60 white, translucent
- Dimensions: Ø 53.2 x 16000 mm
- Ambient temperature -40...200 °C
- Short description: Silicone tube
- Hardness: 60 ±5 shore A
- Tear strength 7.0 N/mm²
- Wall thickness t 1.6 mm
- Stretch: 550%
- Diameter 2: 50.00 mm ±0.8 mm
- Product type
Silicone hose
- Manufacturer part #
BAM0217
- Content
1 pc(s)
- Length
16000.00 mm
- Max. temperature
200 °C
- Min. temperature
-40 °C
- Type
BAM0217
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3422762 BALLUFF BAM0217 Silicone hose 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3422762 BALLUFF BAM0217 Silicone hose 1 pc(s)
Description
Our flexible and robust silicone cable protection protects the cable especially in welding areas. It is characterized by chemical resistance and is temperature resistant up to 250 ° C. You can choose between different versions such as protective hose, protective sheath and protective tape as well as various diameters. Short description=silicon hose, use=for cable protection for welding protection, material=silicon 60 white, translucent, dimensions=Ø 53.2 x 16000 mm, ambient temperature=-40...200 °C
