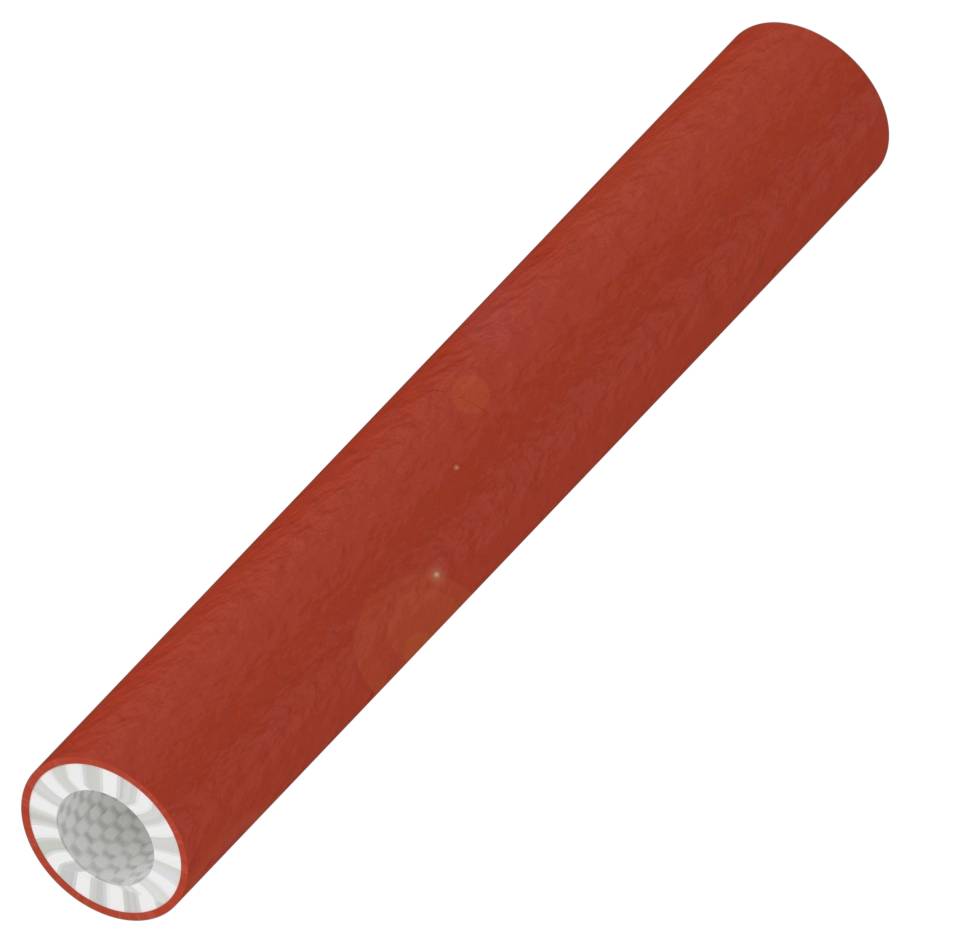

BALLUFF BAM022Z Silicon glassfibre hose 1 pc(s)
EAN:
Part number:
Item no:
Product type
Silicon glassfibre hose
Manufacturer part #
BAM022Z
Content
1 pc(s)
Length
15000.00 mm
Max. temperature
250 °C
Datasheet (PDF)
Highlights & Details
Balluff BAM022Z protective hoses for cable
Technical specifications
- Main features:Dimensions: Ø 17 x 15000 mm
- Short description: Silicone fiberglass hose
- Material: Glass fiber covered
- Silicone-rubber red
- Ambient temperature -40...250 °C
- Use: For cable protection
- For welding protection
- Additional features:
- Supplied with protective tubing, 1 roll
- Use: For cable protection|for welding protection
- Material: Glass fiber sheathed|Silicone rubber red
- Dimensions: Ø 17 x 15000 mm
- Ambient temperature -40...250 °C
- Short description: Silicone fiberglass hose
- Hardness: 35 ±5 shore A
- Tear strength: 2.76…3.45 N/mm²
- Wall thickness t 3.5 mm
- Stretch: 25%
- Diameter 2 10.00 mm
- Product type
Silicon glassfibre hose
- Manufacturer part #
BAM022Z
- Content
1 pc(s)
- Length
15000.00 mm
- Max. temperature
250 °C
- Min. temperature
-40 °C
- Type
BAM022Z
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3422767 BALLUFF BAM022Z Silicon glassfibre hose 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3422767 BALLUFF BAM022Z Silicon glassfibre hose 1 pc(s)
Description
Our flexible and robust silicone cable protection protects the cable especially in welding areas. It is characterized by chemical resistance and is temperature resistant up to 250 ° C. You can choose between different versions such as protective hose, protective sheath and protective tape as well as various diameters. Short description = silicone fiber glass hose, use = for cable protection for welding protection, material = glass-fiber covered silicone rubber red, dimension = Ø 17 x 15000 mm, ambient temperature=-40...250 °C
