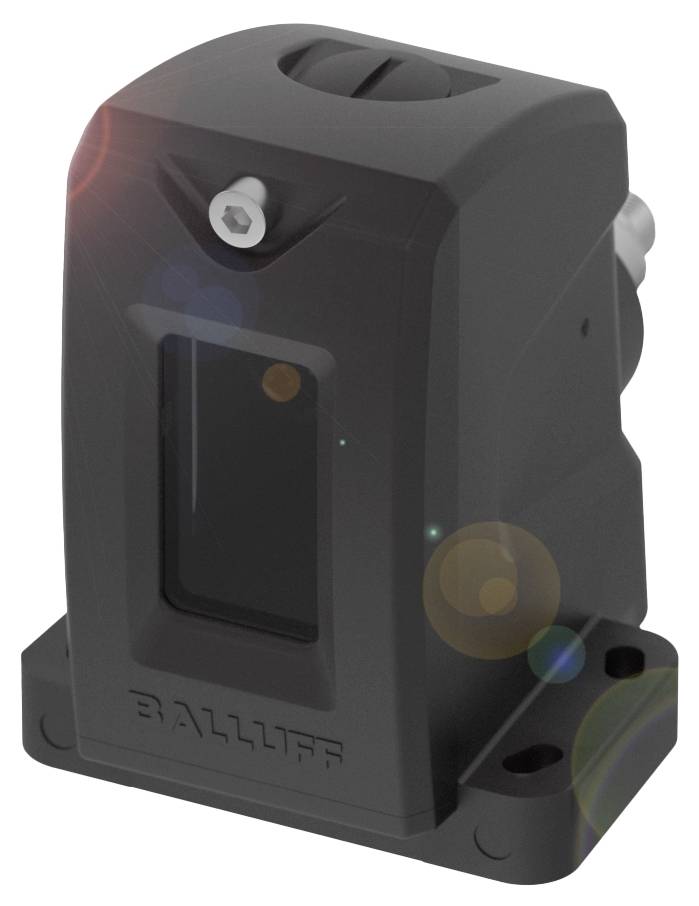

BALLUFF BAM029L Protective housing BAM029L 1 pc(s)
EAN:
Part number:
Item no:
Product type
Protective housing
Type
BAM029L
Content
1 pc(s)
Length
124.50 mm
Width
84.1 mm
Datasheet (PDF)
Highlights & Details
Balluff BAM029L protective case
- Dimensions 84.1 x 107 x 124.5 mm
- Use: For optoelectronic sensors BOS 23K
- Material: Aluminium die-cast coated, black
- Short description: Protective casing
- Protective glass material: Glass ceramic
Technical specifications
- Main features:Dimension 84.1 x 107 x 124.5 mm
- Mounting: Screws
- Terminals
- Short description: Protective casing
- Material: Aluminium die-cast coated, black
- Protective glass material: Glass ceramic
- Ambient temperature -5...70 °C, cooled max. 160 °C, min. 0 °C (Water 8 °C, 2l/min)
- Use: For optoelectronic sensors BOS 23K
- Additional features:
- Scope of delivery: Cover with protective glass|O-ring Ø4.5x1.5|O-ring Ø73x3.0|Execution Conn. M12|Mounting plate|Mounting instructions|Nut ISO 4032-M4 (2x)|Screw ISO 4762-M4x30 (2x)|Screw ISO 4762-M5x12|Protective housing|Screw plug M16
- Use: For optoelectronic sensors|BOS 23K
- Short description: Protective casing
- Ex marking: ATEX: Ex II 3D tc IIIC T90°C dc
- Product type
Protective housing
- Type
BAM029L
- Content
1 pc(s)
- Length
124.50 mm
- Width
84.1 mm
- Height
107 mm
- Material
Aluminium (die-cast)
- Max. temperature
70 °C
- Min. temperature
-5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417934 BALLUFF BAM029L Protective housing BAM029L 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417934 BALLUFF BAM029L Protective housing BAM029L 1 pc(s)
Description
Our robust protective covers and protective housing for various Balluff sensors and devices are easy to mount and mount. Our sensor protection is characterized by its resistance to temperature and chemicals. Short description=protective case, use=for optoelectronic sensors BOS 23K, material=aluminum die-cast coated, black, protective glass material=glass ceramic, dimension=84.1 x 107 x 124.5 mm, fixing=screw terminals, ambient temperature=-5...70 °C, cooled max. 160 °C, min. 0 °C (water 8 °C, 2l/min), approval/conformity=CEATEXWEEE
