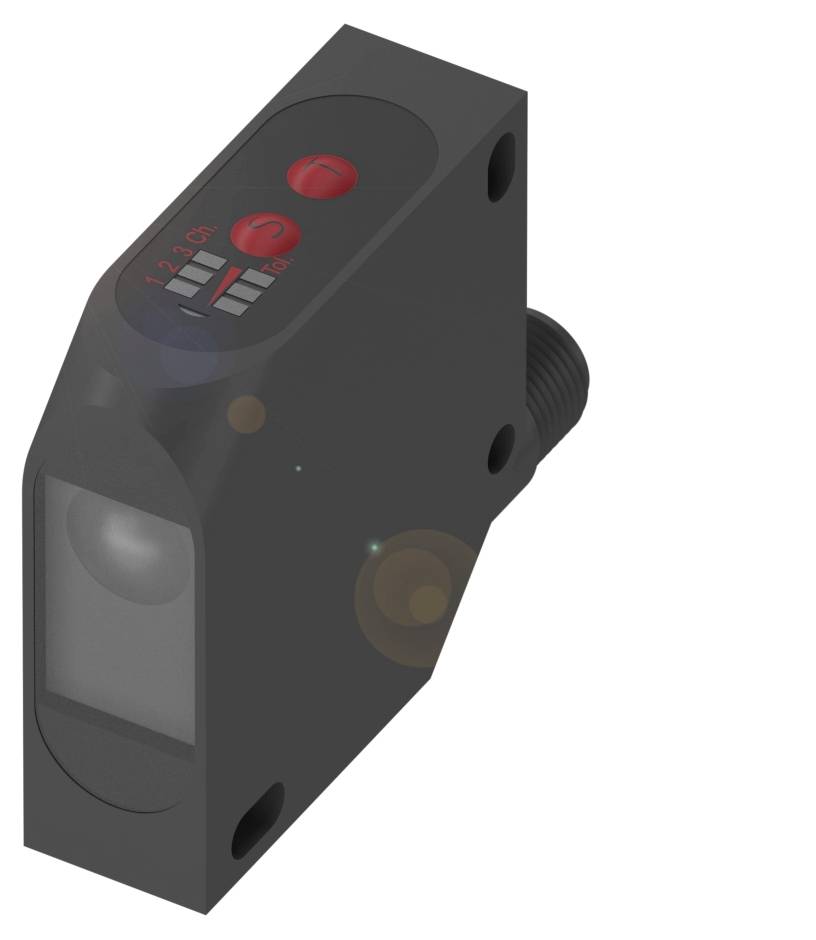

Image similar
BALLUFF BFS0001 BFS0001 Colour sensor 1 pc(s) 24 3 makers (Ø x H) 4 mm x 50.00 mm
EAN:
Part number:
Item no:
Product type
Colour sensor
Min. operating voltage
12.0 V
Max. operating voltage
28.0 V
Type
BFS0001
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Balluff BFS0001 Made of plastic (ABS)
- Dimensions 17 x 50 x 50 mm
- Series 26K
- Interface: 3x PNP NO contact
- Input function: Emitter on/off
- Key lock on/off
- Programming in color (switch point)
- Functional principle: Colour sensor
Technical specifications
- Main features:Dimension 17 x 50 x 50 mm
- Active surface, material: PMMA
- Connection: Connector, M12x1 connector, 8-pin
- Series 26K
- Operating voltage Ub 12...28 VDC
- Input function: Emitter on/off
- Key lock on/off
- Programming in color (switch point)
- Functional principle: Colour sensor
- Optical operating principle: Light sensor, fixed focus
- ABS casing material
- Light type: White light
- Light spot size: Ø 4 mm with 22 mm
- Range 12...32 mm
- Interface: 3x PNP NO contact
- Beam characteristic: Focused
- Additional features:
- Functional principle: Colour sensor
- Dimensions 17 x 50 x 50 mm
- Mounting: M4 screw
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 300 ms
- Operating voltage Ub 12...28 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 500 Hz
- Protection class: II
- Connection: Connector, M12x1 connector, 8-|pin
- Short-circuit protection: Yes
- MTTF (40 °C) 7 a
- Active surface, material: PMMA
- ABS casing material
- Range 12...32 mm
- Setup options: Operating mode Normal/ET|Programming mode Color/Color scan|Color (switching point)|Color channel (output)|Color tolerance level|Time function ON/OFF|Factory setting (reset)
- Series 26K
- Shape: Cube|connection can be rotated
- Display: Output function - yellow LED (3x)|Ready LED green|Tolerance level: Red LED (3x)
- Adjuster: Button (2x)
- Shutdown delay toff max.: 1.0 ms
- ON delay max.: 1.0 ms
- Idle current IO max. at Ue 40 mA
- Voltage drop Ud max. at Ie 2.4 V
- Input function: Emitter on/off|Key lock on/off|Learn color (switching point)
- Reverse polarity protected detection range/measuring range: Yes
- Touch width tolerance: ±6 mm at 22 mm, tolerance level|3
- Product type
Colour sensor
- Type
BFS0001
- Content
1 pc(s)
- Operating voltage
24
- Min. operating voltage
12.0 V
- Max. operating voltage
28.0 V
- Operating voltage
12.0 - 28.0 V
- Contact type
3 makers
- Switching voltage (max.)
28 V DC
- Connection
Connector
IP67
- Min. temperature
-10 °C
- Max. temperature
55 °C
- Length
50.00 mm
- Width
17.00 mm
- Height
50.00 mm
- (Ø)
4 mm
- Dim
(Ø x H) 4 mm x 50.00 mm
- Nominal voltage
28.0 V
- Enclosure material
Acrylonitrile butadiene styrene
- Connector
Plug
Plug
- Material
Acrylonitrile butadiene styrene
- Outputs
PNP
32 mm
- Switching frequency
500 Hz
- Operating current
100 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416229 BALLUFF BFS0001 BFS0001 Colour sensor 1 pc(s) 24 3 makers (Ø x H) 4 mm x 50.00 mm
User & Safety Instructions
User & Safety Instructions 3416229 BALLUFF BFS0001 BFS0001 Colour sensor 1 pc(s) 24 3 makers (Ø x H) 4 mm x 50.00 mm
Description
Balluff's versatile color sensors simplify and accelerate your automated processes. For example, when detecting color nuances in textiles, painted sheets, and color marks on packaging or labels. Our color sensors select bad parts and thus ensure a consistently high product quality. They thus contribute to a reliable production process. Series=26K, dimension=17 x 50 x 50 mm, interface=3x PNP NO, input function=emitter on/off key lock on/out color (switching point), operating principle=color sensor, operational principle optical=light sensor, fixed-focus, beam characteristic=focused, light type=white light, light spot size=Ø 4 mm at 22 mm, range=12...32 mm, connection=connector, M12x1 connector, 8-pin, Housing material=ABS, Active surface, material=PMMA, operating voltage Ub=12...28 VDC, approval/conformity=CecULUSEACWEEE
