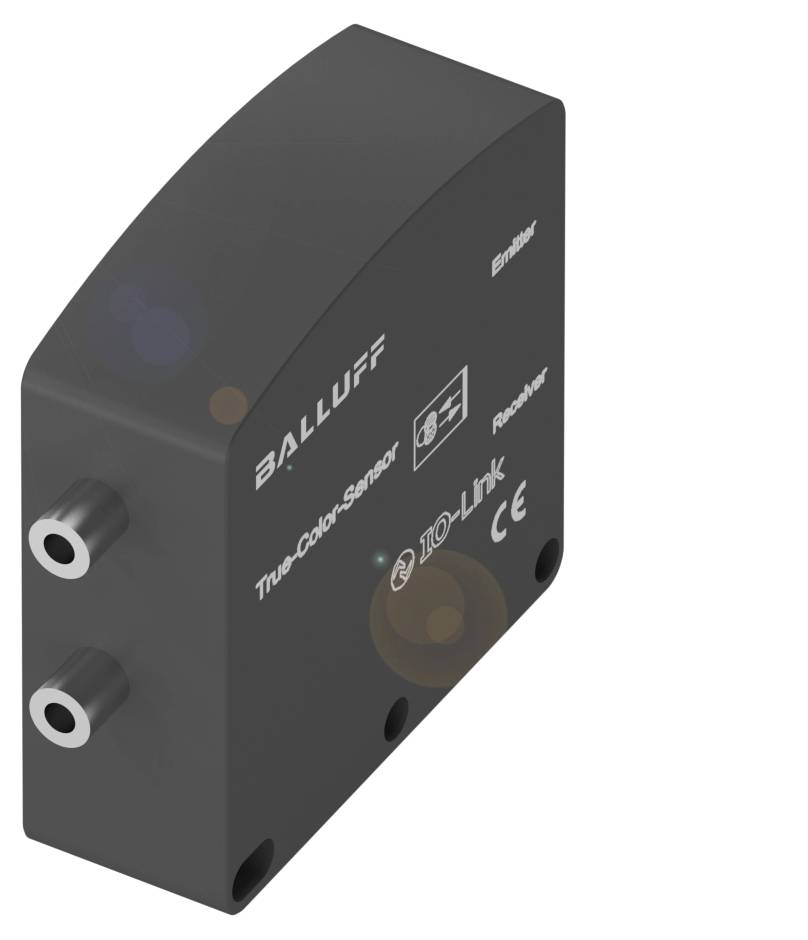

Image similar
BALLUFF BFS000M BFS000M Colour sensor 1 pc(s) 24 (L x W x H) 58.00 x 21.00 x 58.30 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Colour sensor
Min. operating voltage
21.6 V
Max. operating voltage
26.4 V
Type
BFS000M
Datasheet (PDF)
Highlights & Details
Balluff BFS000M Made of aluminum
- Dimensions 21 x 58.3 x 58 mm
- Series 33M
- Interface: IO-Link 1.1
- Functional principle: Colour sensor
- Functional principle optical: Light switch
Technical specifications
- Main features:Dimension 21 x 58.3 x 58 mm
- Connection: Plug connector, M8x1 plug, 4-pin
- Series 33M
- Operating voltage Ub 21.6...26.4 VDC
- Functional principle: Colour sensor
- Functional principle optical: Light switch
- Housing material: Aluminium, anodized
- Light type: White light
- Interface: IO-Link 1.1
- Additional features:
- Functional principle: Colour sensor
- Dimensions 21 x 58.3 x 58 mm
- Mounting: M4 screw
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 21.6...26.4 VDC
- Residual ripple max. (% of Ue): 10%
- Connection: Connector, M8x1 plug, 4-|pin
- Housing material: Aluminium, anodized
- EN 60068-2-27, shock: Half-sine, 30 gn, 11 ms, 3x6
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class: IP54
- Ambient temperature 10...55 °C
- Possible setting: IO-Link
- Surface protection: Anodised
- Series 33M
- Shape: Cube|straight connection
- Adjuster: No
- Idle current IO max. at Ue 60 mA
- External light max. 5000 Lux
- Functional principle optical: Light switch
- Light type: White light
- Wavelength: 400…700 nm
- LED group according to IEC 62471: Free group
- Interface: IO-Link 1.1
- IO-Link Profile IDs: 0x0001 SP0
- Reverse polarity protected IO-Link: Yes
- Packaging type
Piece
- Product type
Colour sensor
- Type
BFS000M
- Content
1 pc(s)
- Operating voltage
24
- Min. operating voltage
21.6 V
- Max. operating voltage
26.4 V
- Operating voltage
21.6 - 26.4 V
- Connection
M8 plug
IP54
- Min. temperature
10 °C
- Max. temperature
55 °C
- Length
58.00 mm
- Width
21.00 mm
- Height
58.30 mm
- Dim
(L x W x H) 58.00 x 21.00 x 58.30 mm
- Nominal voltage
26.4 V
- Wavelength
700 nm
- Enclosure material
Aluminium
- Connector
Plug
Plug
- Material
Aluminium (anodized)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416245 BALLUFF BFS000M BFS000M Colour sensor 1 pc(s) 24 (L x W x H) 58.00 x 21.00 x 58.30 mm Piece
User & Safety Instructions
User & Safety Instructions 3416245 BALLUFF BFS000M BFS000M Colour sensor 1 pc(s) 24 (L x W x H) 58.00 x 21.00 x 58.30 mm Piece
Description
Balluff's versatile color sensors simplify and accelerate your automated processes. For example, when detecting color nuances in textiles, painted sheets, and color marks on packaging or labels. Our color sensors select bad parts and thus ensure a consistently high product quality. They thus contribute to a reliable production process. Series=33M, dimension=21 x 58.3 x 58 mm, interface=IO-Link 1.1 2x closer/opener (NO/NC), operating principle=color sensor, functional principle optical=light switch, type of light=white light, connection=connector, M8x1 plug, 4-pin, housing material=aluminum, operating voltage Ub=21.6...26.4 VDC, approval/conformity=CEWEEE
