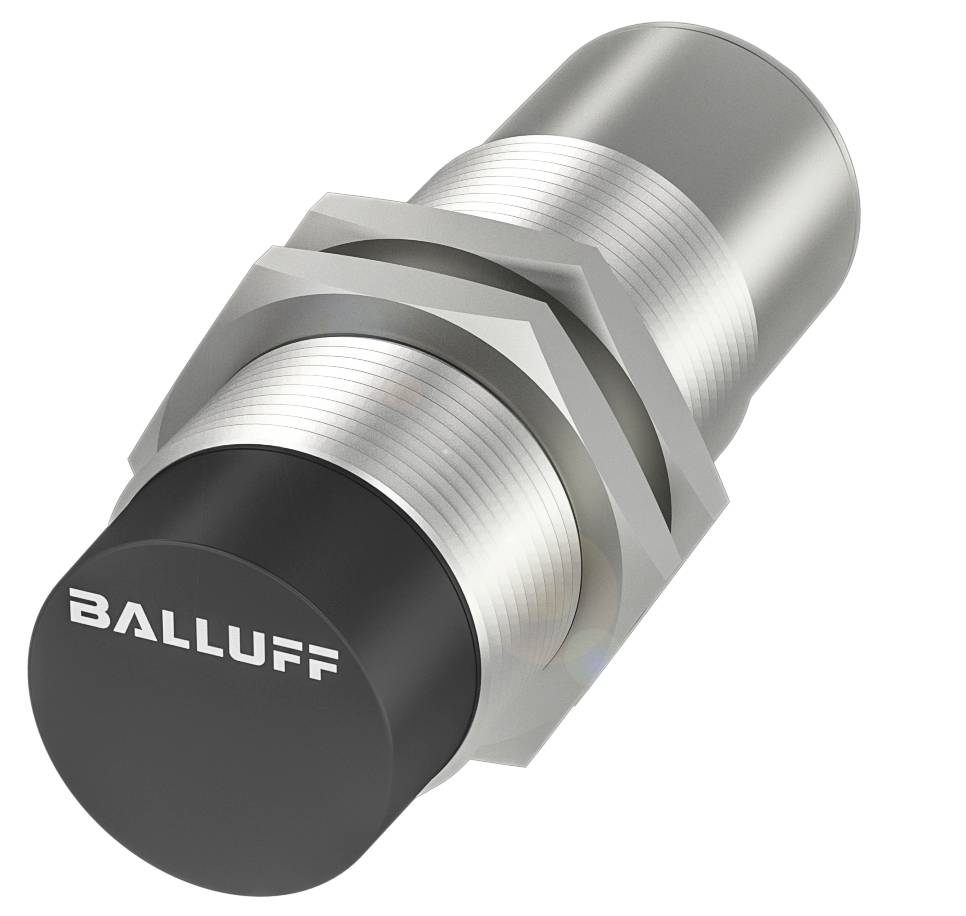

BALLUFF BIC0053 Inductive coupler BIC0053 1 pc(s)
EAN:
Part number:
Item no:
Product type
Inductive coupler
Type
BIC0053
Operating voltage
24
Operating current
24 mA
Connector
M12 plug (4-pin)
Datasheet (PDF)
Highlights & Details
Balluff BIC0053 Inductive couplers for IO-Link signal transmission
- Interface: IO-Link 1.0
- Function: Uni IO-Link
- Signal shape: Unidirectional
- Transfer distance: 0...5 mm
- Component: Base
Technical specifications
- Main features:Dimensions: Ø 30 x 100 mm
- Connection: Connector, M12x1 connector, 4-pin
- Rated operating voltage Ue 24 VDC
- Function: Uni IO-Link
- Housing material: Nickel-plated brass, coated
- Component: Base
- Process data IN: 11 bytes
- Process data OUT: 0 bytes
- Interface: IO-Link 1.0
- Protection class IP67
- Signal shape: Unidirectional
- SIO mode: No.
- Transfer distance: 0...5 mm
- COM2 (38.4 kBaud) transfer rate
- Ambient temperature -5...55 °C
- Additional features:
- Use: For remote inductive coupler|BIC0054|for remote inductive coupler|BIC005H
- Dimensions: Ø 30 x 100 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 1000 mA
- Residual ripple max. (% of Ue): 5%
- Connection: M12x1 connector, 4-pin
- Short-circuit protection: Yes
- MTTF (40 °C) 87 a
- Active surface, material: PC
- Size M30x1.5
- Fitting: Non-shielded
- Housing material: Nickel-plated brass, coated
- Protection class IP67
- Ambient temperature -5...55 °C
- Housing material, surface protection: Coated
- Tightening torque for cable connector 0.6 Nm
- Range 0...5 mm
- Tightening torque max. 70 Nm
- Frame type: 1
- IO-Link Version: 1
- Process data OUT: 0 bytes
- Process data cycle min.: 36 ms
- Storage temperature: -25...75 °C
- Weight 160 g
- Interface: IO-Link 1.0
- Function: Uni IO-Link
- Component: Base
- Master port type A
- Signal shape: Unidirectional
- Transfer distance: 0...5 mm
- Offset: ±4 mm
- Process data IN: 11 bytes
- SIO mode: No.
- COM2 (38.4 kBaud) transfer rate
- IEC 61000-4-2/3/4/5/6
- Display InZone: Yes
- Transfer power 12 W
- Display of data transfer active: Yes
- Product type
Inductive coupler
- Type
BIC0053
- Operating voltage
24
- Operating current
24 mA
- Connector
M12 plug (4-pin)
IP67
- Content
1 pc(s)
- Length
100 mm
- Height
31.00 mm
- (Ø)
30 mm
- Enclosure material
Brass (Ni-plated)
- Weight
160 g
- Material
PC
- Connector standard
Sensor connector
- Connection
Plug
- Connection side A
Plug, straight
- No. of pins
4
- Thread type connection side
M12 x 1
- Max. temperature
55 °C
- Min. temperature
-5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418668 BALLUFF BIC0053 Inductive coupler BIC0053 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418668 BALLUFF BIC0053 Inductive coupler BIC0053 1 pc(s)
Description
With inductive couplers, energy and data are transmitted contact-free via an air gap. This makes mechanical plug contacts unnecessary. If our bi-directional coupling system with IO-Link is used, the data can also be transferred in both directions. Function = Uni IO-Link, Signal form = unidirectional, transfer distance = 0...5 mm, component = base, connector = plug connector, M12x1 plug, 4-pin, rated operating voltage Ue=24 VDC, housing material=brass, ambient temperature=-5...55 °C, Protection class=IP67, transfer rate=COM2 (38.4 kBaud), process data IN=11 bytes, process data OUT=0 bytes, SIO mode=no.
This text is machine translated.
