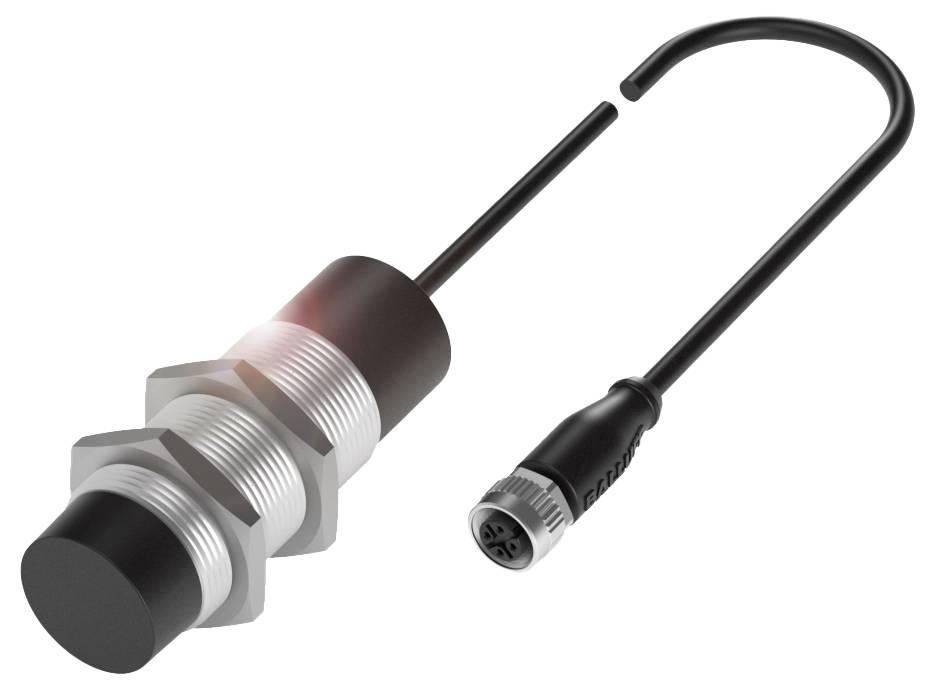

BALLUFF BIC005H Inductive coupler BIC005H 1 pc(s)
EAN:
Part number:
Item no:
Product type
Inductive coupler
Type
BIC005H
Connector
M12 socket (5-pin)
Cable length
0.20 m
IP rating
IP67
Datasheet (PDF)
Highlights & Details
Balluff BIC005H Inductive Coupler for IO-Link Signal Transmission
- Interface: IO-Link 1.0
- Function: Uni IO-Link
- Signal shape: Unidirectional
- Transfer distance: 0...5 mm
- Component: Remote
Technical specifications
- Main features:Dimensions: Ø 30 x 85.5 mm
- Connection: Connector, M12x1 socket, 5-pin, 0.20 m, PUR
- Rated output current 500 mA
- Output voltage 24 VDC
- Function: Uni IO-Link
- Housing material: Nickel-plated brass, coated
- Component: Remote
- Interface: IO-Link 1.0
- Protection class IP67
- Signal shape: Unidirectional
- SIO mode: No.
- Transfer distance: 0...5 mm
- COM2 (38.4 kBaud) transfer rate
- Ambient temperature -5...55 °C
- Additional features:
- Use: For Base|BIC0053 inductive coupler
- Dimensions: Ø 30 x 85.5 mm
- Function display: Yes
- M12x1 socket, 5-pin
- Short-circuit protection: Yes
- MTTF (40 °C) 88 a
- Active surface, material: PC
- Size M30x1.5
- Fitting: Non-shielded
- Connection type: Connector 0.20 m, PUR
- Cable diameter D 4.50 mm
- Cable length 0.2 m
- Housing material: Nickel-plated brass, coated
- Housing material, surface protection: Coated
- Tightening torque for cable connector 0.6 Nm
- Cable, bending radius min., fixed laying: 5 x D
- Cable, minimum bending radius, flexible laying 10 x D
- Range 0...5 mm
- Tightening torque max. 70 Nm
- Frame type: 1
- IO-Link Version: 1
- Jacket material Mechanical features: PUR, shielded
- Weight 160 g
- Interface: IO-Link 1.0
- Function: Uni IO-Link
- Component: Remote
- Rated output current 0.5 A
- Output voltage 24 VDC
- Master port type A
- Residual ripple Ua max. 1.2 V
- Signal shape: Unidirectional
- Transfer distance: 0...5 mm
- Offset: ±4 mm
- SIO mode: No.
- COM2 (38.4 kBaud) transfer rate
- Transfer power 12 W
- Cycle time min.: 3 ms
- Product type
Inductive coupler
- Type
BIC005H
- Connector
M12 socket (5-pin)
- Cable length
0.20 m
IP67
- Content
1 pc(s)
- Length
85.5 mm
- Height
26.00 mm
- (Ø)
30 mm
- Enclosure material
Brass (Ni-plated)
- Weight
160 g
- Material
PC
PUR
- Connector standard
Sensor connector
- Jacket material
PUR
- Connection
Socket
- Connection side A
Socket, straight
- No. of pins
5
- Thread type connection side
M12 x 1
- Max. temperature
55 °C
- Min. temperature
-5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417894 BALLUFF BIC005H Inductive coupler BIC005H 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417894 BALLUFF BIC005H Inductive coupler BIC005H 1 pc(s)
Description
With inductive couplers, energy and data are transmitted contact-free via an air gap. This makes mechanical plug contacts unnecessary. If our bi-directional coupling system with IO-Link is used, the data can also be transferred in both directions. Function = Uni IO-Link, Signal form = unidirectional, transfer distance = 0...5 mm, component = remote, connector = plug connector, M12x1 plug, 5-pin, 0.20 m, PUR, output voltage=24 VDC, Output rated current=500 mA, housing material=brass, ambient temperature=-5...55 °C, protection class=IP67, transfer rate=COM2 (38.4 kBaud), SIO mode=no.
This text is machine translated.
This text is machine translated.
