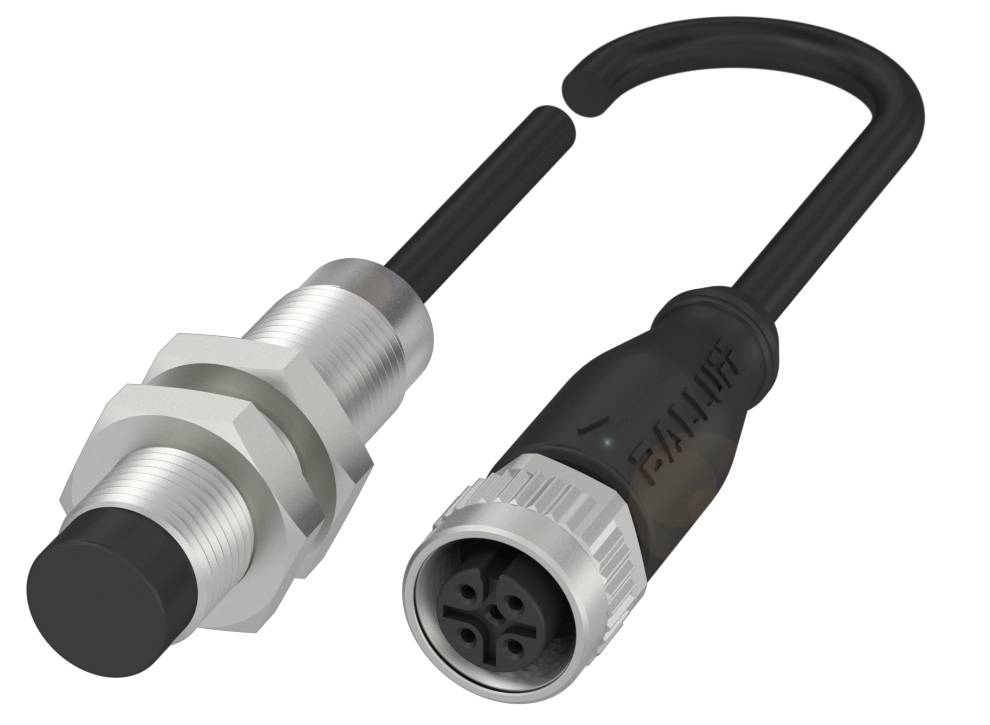

BALLUFF BIC0078 Inductive coupler BIC 2I1-P2A05-M12MF-BPX0-003-M44A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Inductive coupler
Type
BIC 2I1-P2A05-M12MF-BPX0-003-M44A
Connector
M12 (5-pin)
Cable length
0.30 m
IP rating
IP67
Datasheet (PDF)
Highlights & Details
Balluff BIC0078 Inductive couplers for signal transmission
- Function: Signal transmission
- Signal shape: Unidirectional
- Transfer distance: 0...2.5 mm
- Component: Remote
- Digital inputs 2 x PNP
Technical specifications
- Main features:Dimensions: Ø 12 x 44 mm
- Connection: Plug connector M12x1, 5-pin, 0.30 m, PUR
- Rated output current 50 mA
- Output voltage 24 VDC
- Digital inputs 2 x PNP
- Function: Signal transmission
- Housing material: Nickel-plated brass, coated
- Component: Remote
- Protection class IP67
- Signal shape: Unidirectional
- Transfer distance: 0...2.5 mm
- Ambient temperature -10...50 °C
- Additional features:
- Use: For Base|BIC0077 inductive coupler
- Dimensions: Ø 12 x 44 mm
- Function display: No.
- Switching frequency 60 Hz
- Connection M12x1, 5-pin
- Short-circuit protection: Yes
- MTTF (40 °C) 10 a
- Size M12x1
- Fitting: Non-shielded
- Connection type: Connector 0.30 m, PUR
- Cable diameter D 3.50 mm
- Cable length 0.3 m
- Housing material: Nickel-plated brass, coated
- Sheath material: PUR
- Protection class IP67
- Ambient temperature -10...50 °C
- Housing material, surface protection: Coated
- Conductor cross-section: 0.14 mm²
- Tightening torque for cable connector 0.6 Nm
- Cable, bending radius min., fixed laying: 5 x D
- Cable, minimum bending radius, flexible laying 10 x D
- Range 0...2.5 mm
- Storage temperature: -20...60 °C
- Weight 40 g
- Function: Signal transmission
- Component: Remote
- Rated output current 0.05 A
- Output voltage 24 VDC
- Signal shape: Unidirectional
- Transfer distance: 0...2.5 mm
- Offset: ±1 mm
- IEC 61000-4-2/3/4/5/6
- Current load per output max. 50 mA
- Transfer power 1.2 W
- Digital inputs ambient conditions 2x PNP
- Product type
Inductive coupler
- Type
BIC 2I1-P2A05-M12MF-BPX0-003-M44A
- Connector
M12 (5-pin)
- Cable length
0.30 m
IP67
- Content
1 pc(s)
- Length
44 mm
- (Ø)
12 mm
- Enclosure material
Brass (Ni-plated)
- Material
PUR
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417876 BALLUFF BIC0078 Inductive coupler BIC 2I1-P2A05-M12MF-BPX0-003-M44A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417876 BALLUFF BIC0078 Inductive coupler BIC 2I1-P2A05-M12MF-BPX0-003-M44A 1 pc(s)
Description
Our inductive coupler system is designed for up to eight sensor signals and eight actuator control signals. The system is bidirectional, in other words it transmits signals in both directions. Its Remote unit can individually control and operate clamping units. Up to eight signals can be transmitted from the base station, four channels can be controlled independently of each other. Function = signal transmission, waveform = unidirectional, digital inputs = 2x PNP, transmission distance = 0...2.5 mm, component = remote, connection=plug connector M12x1, 5-pin, 0.30 m, PUR, Output voltage=24 VDC, output nominal current=50 mA, case material=brass nickel-plated, dimension=Ø 12 x 44 mm, ambient temperature=-10...50 °C, protection class=IP67
