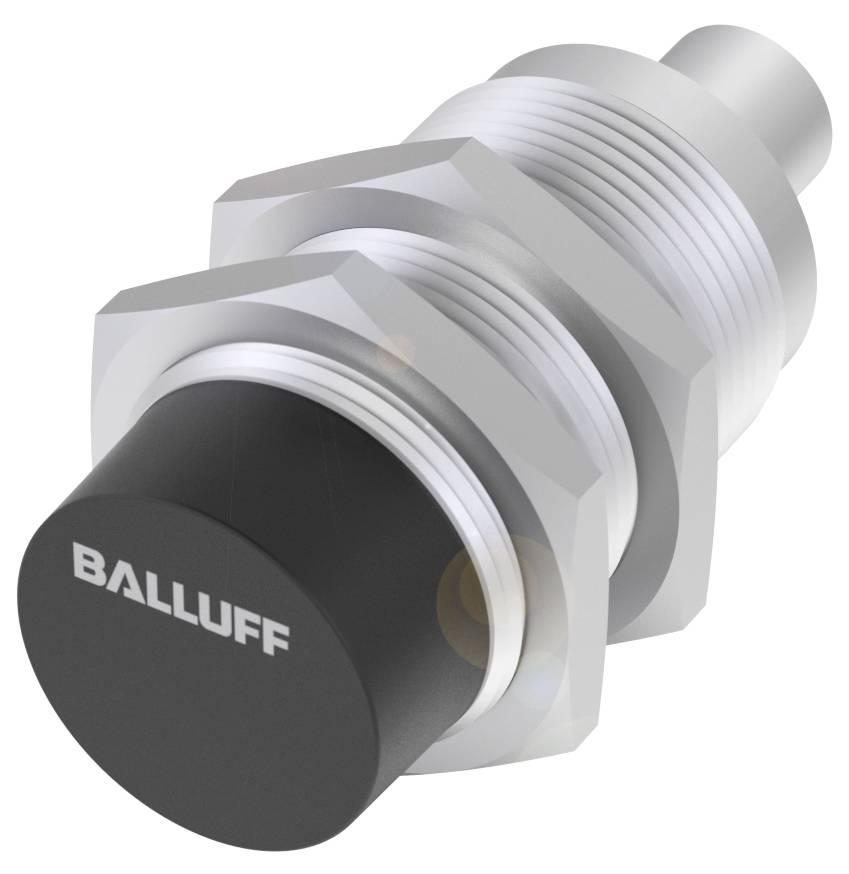

BALLUFF BIC007E Inductive coupler BIC007E 1 pc(s)
EAN:
Part number:
Item no:
Product type
Inductive coupler
Type
BIC007E
Connector
M12 socket (5-pin)
IP rating
IP67
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Balluff BIC007E Inductive couplers for IO-Link signal transmission
- Interface: IO-Link 1.1
- Function: IO-Link signal transmission
- Signal shape: Bidirectional
- Transfer distance: 0...10 mm
- Component: Remote
Technical specifications
- Main features:Dimensions: Ø 30 x 72.1 mm
- Additive cycle time: Device + 2.0 ms
- Connection: Connector, M12x1 socket, 5-pin
- Rated output current 650 mA
- Output voltage 24 VDC
- Output current max. 5 A / 0.12 ms
- Function: IO-Link signal transmission
- Housing material: Brass, coated
- Component: Remote
- Process data IN: 0…32 bytes
- Process data OUT: 0…32 bytes
- Interface: IO-Link 1.1
- Protection class IP67
- Signal shape: Bidirectional
- SIO mode: Yes
- Transfer distance: 0...10 mm
- COM2 (38.4 kBaud) transfer rate
- Ambient temperature -5...55 °C
- Additional features:
- Dimensions: Ø 30 x 72.1 mm
- Operating voltage display: Yes
- Function display: Yes
- M12x1 socket, 5-pin
- Short-circuit protection: Yes
- MTTF (40 °C) 293 a
- Active surface, material: PA 12
- Size M30x1.5
- Housing material: Brass, coated
- Protection class IP67
- Ambient temperature -5...55 °C
- Housing material, surface protection: Coated
- Output current max. 5 A / 0.12 ms
- Tightening torque for cable connector 0.6 Nm
- Range 0...10 mm
- Tightening torque max. 70 Nm
- Frame type: Device dependent
- IO-Link Version: 1.1
- Process data OUT: 0…32 bytes
- Process data cycle min.: 2 ms
- Storage temperature: -25...70 °C
- Interface: IO-Link 1.1
- Function: IO-Link signal transmission
- Component: Remote
- Rated output current 0.65 A
- Output voltage 24 VDC
- Master port type A
- Residual ripple Ua max. 1.2 V
- Signal shape: Bidirectional
- Transfer distance: 0...10 mm
- Offset: ±6 mm
- Additive cycle time: Device + 2.0 ms
- Process data IN: 0…32 bytes
- SIO mode: Yes
- COM2 (38.4 kBaud) transfer rate
- Immunity speed EN 61000-6-2
- Product type
Inductive coupler
- Type
BIC007E
- Connector
M12 socket (5-pin)
IP67
- Content
1 pc(s)
- Length
72.10 mm
- Width
19 mm
- (Ø)
30 mm
- Enclosure material
Brass
- Material
PA12
- Connector standard
Sensor connector
- Connection
Socket
- Connection side A
Socket, straight
- No. of pins
5
- Thread type connection side
M12 x 1
- Max. temperature
55 °C
- Min. temperature
-5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417857 BALLUFF BIC007E Inductive coupler BIC007E 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417857 BALLUFF BIC007E Inductive coupler BIC007E 1 pc(s)
Description
Inductive couplers for IO-Link signal transmission are used for non-contact transmission of energy and data via an air gap. This makes mechanical plug contacts unnecessary. And when using our bi-directional coupling system with IO-Link, data exchange even works in both directions.The non-contact signal transmission to the IO-Link standard is transparent: The system behaves "invisible" and does not have to be parameterized. You can easily integrate it between IO-Link Master and IO-Link device and communicate immediately.The system has a full IO-Link interface, regardless of the IO-Link revision version. This allows events, parameter and process data to be exchanged directly between the Master and the device. Function = IO-Link signal transmission, waveform = bidirectional, transfer distance = 0...10 mm, component = remote, interface = IO-Link 1.1, connection = plug connector, M12x1 socket, 5-pin, output voltage = 24 VDC, output current = 30 mA, output current max. = 72.1 A / 0.12 ms, housing material = brass, coated, dimension = Ø 650 x 5 mm, Ambient temperature = -5...55 °C, protection class = IP67, transfer rate = COM2 (38.4 kBaud), additive cycle time = device + 2.0 ms, process data IN = 0.32 bytes, process data OUT = 0.32 bytes, SIO mode = yes
