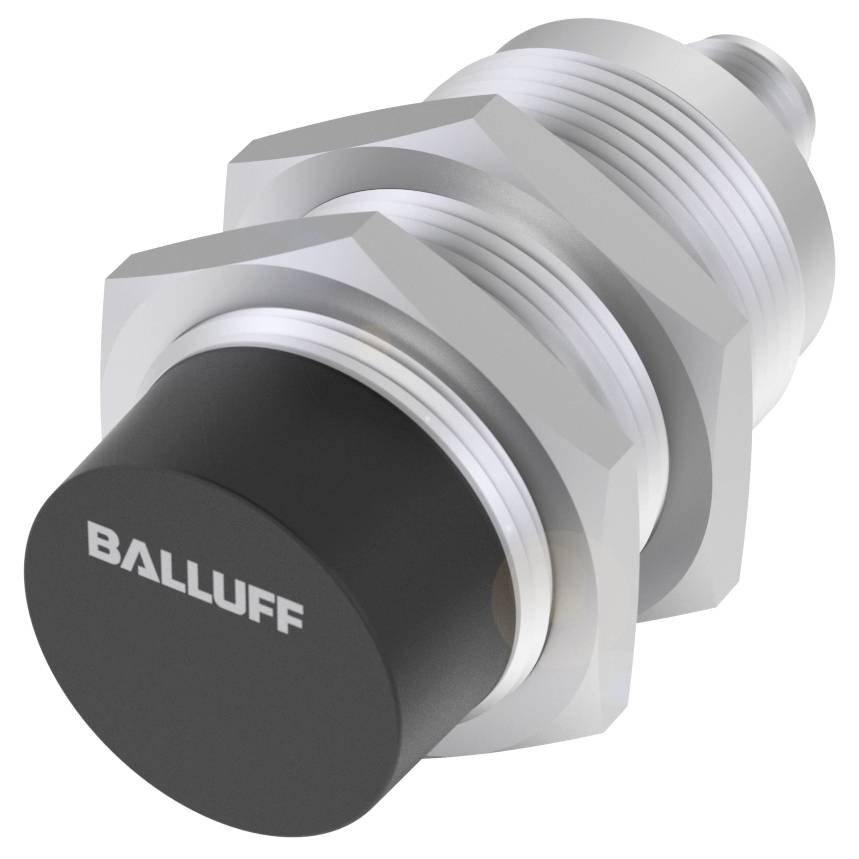

BALLUFF BIC007L Inductive coupler BIC007L 1 pc(s)
EAN:
Part number:
Item no:
Product type
Inductive coupler
Type
BIC007L
Operating voltage
24
Operating current
24 mA
Connector
M12 plug (5-pin)
Datasheet (PDF)
Highlights & Details
Balluff BIC007L Inductive couplers for IO-Link signal transmission
- Interface: IO-Link 1.1
- Function: IO-Link signal transmission
- Signal shape: Bidirectional
- Transfer distance: 0...10 mm
- Component: Base
Technical specifications
- Main features:Dimensions: Ø 30 x 66.2 mm
- Additive cycle time: Device + 2.0 ms
- Connection: Connector, M12x1 connector, 5-pin
- Rated operating voltage Ue 24 VDC
- Function: IO-Link signal transmission
- Housing material: Brass, coated
- Component: Base
- Process data IN: 0…32 bytes
- Process data OUT: 0…32 bytes
- Interface: IO-Link 1.1
- Protection class IP67
- Signal shape: Bidirectional
- SIO mode: Yes
- Transfer distance: 0...10 mm
- COM2 (38.4 kBaud) transfer rate
- Ambient temperature -5...55 °C
- Additional features:
- Dimensions: Ø 30 x 66.2 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 1200 mA
- Residual ripple max. (% of Ue): 10%
- Connection: M12x1 connector, 5-pin
- Short-circuit protection: Yes
- MTTF (40 °C) 301 a
- Active surface, material: PA 12
- Size M30x1.5
- Housing material: Brass, coated
- Protection class IP67
- Ambient temperature -5...55 °C
- Housing material, surface protection: Coated
- Tightening torque for cable connector 0.6 Nm
- Range 0...10 mm
- Tightening torque max. 70 Nm
- Frame type: Device dependent
- IO-Link Version: 1.1
- Process data OUT: 0…32 bytes
- Process data cycle min.: 2 ms
- Storage temperature: -25...70 °C
- Interface: IO-Link 1.1
- Function: IO-Link signal transmission
- Component: Base
- Master port type A
- Signal shape: Bidirectional
- Transfer distance: 0...10 mm
- Offset: ±6 mm
- Additive cycle time: Device + 2.0 ms
- Process data IN: 0…32 bytes
- SIO mode: Yes
- COM2 (38.4 kBaud) transfer rate
- Immunity speed EN 61000-6-2
- Display of data transfer active: Yes
- Product type
Inductive coupler
- Type
BIC007L
- Operating voltage
24
- Operating current
24 mA
- Connector
M12 plug (5-pin)
IP67
- Content
1 pc(s)
- Length
66.20 mm
- Height
23.65 mm
- (Ø)
30 mm
- Enclosure material
Brass
- Material
PA12
- Connector standard
Sensor connector
- Connection
Plug
- Connection side A
Plug, straight
- No. of pins
5
- Thread type connection side
M12 x 1
- Max. temperature
55 °C
- Min. temperature
-5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417859 BALLUFF BIC007L Inductive coupler BIC007L 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417859 BALLUFF BIC007L Inductive coupler BIC007L 1 pc(s)
Description
Inductive couplers for IO-Link signal transmission are used for non-contact transmission of energy and data via an air gap. This makes mechanical plug contacts unnecessary. And when using our bi-directional coupling system with IO-Link, data exchange even works in both directions.The non-contact signal transmission to the IO-Link standard is transparent: The system behaves "invisible" and does not have to be parameterized. You can easily integrate it between IO-Link Master and IO-Link device and communicate immediately.The system has a full IO-Link interface, regardless of the IO-Link revision version. This allows events, parameter and process data to be exchanged directly between the Master and the device. Function = IO-Link signal transmission, signal form = bidirectional, transfer distance = 0...10 mm, component = base, interface = IO-Link 1.1, connection = plug connector, M12x1 plug, 5-pin, rated operating voltage Ue = 5 VDC, housing material = brass, coated, dimension = Ø 55 x 66.2 mm, ambient temperature = -24...30 °C, protection class = IP67, transfer rate = COM2 (38.4 kBaud), additive cycle time = device + 2.0 ms, process data IN = 0.32 bytes, process data OUT = 0.32 bytes, SIO mode = yes
