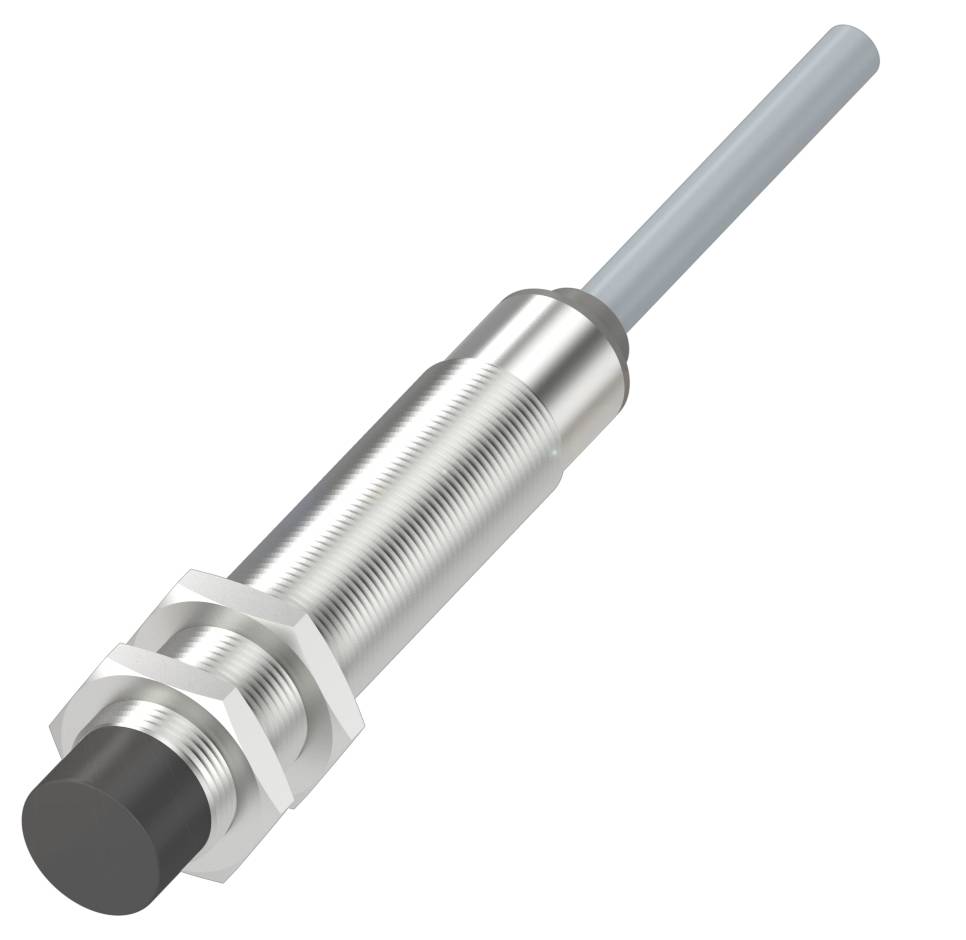

BALLUFF BIC007T Inductive coupler BIC 1I22-P2A02-M18MN2-EPX07-050 1 pc(s)
EAN:
Part number:
Item no:
Product type
Inductive coupler
Type
BIC 1I22-P2A02-M18MN2-EPX07-050
Operating voltage
24 V DC
Operating current
500 mA
Connector
Cable
Datasheet (PDF)
Highlights & Details
Balluff BIC007T Inductive Coupler for Signal Transmission
- Function: Signal transmission
- Signal shape: Unidirectional
- Transfer distance: 1...3 mm
- Component: Base
- Digital outputs 4x PNP
Technical specifications
- Main features:Dimensions: Ø 18 x 94 mm
- Connection: Cable, 5 m, PUR
- Rated operating voltage Ue 24 VDC
- Digital outputs 4x PNP
- Function: Signal transmission
- Housing material: Nickel-plated brass, coated
- Component: Base
- Protection class IP67
- Signal shape: Unidirectional
- Transfer distance: 1...3 mm
- Ambient temperature 0...50 °C
- Additional features:
- Use: For remote inductive coupler|BIC007U
- Dimensions: Ø 18 x 94 mm
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 500 mA
- Standby delay TV max.: 80 ms
- Residual ripple max. (% of Ue): 10%
- Switching frequency 60 Hz
- Short-circuit protection: Yes
- MTTF (40 °C) 6 a
- Active surface, material: PA 6.6
- Size M18x1
- Fitting: Non-shielded
- Connection type: Cable, 5 m, PUR
- Cable diameter D 4.5 mm
- Cable length 5 m
- Housing material: Nickel-plated brass, coated
- Sheath material: PUR
- Protection class IP67
- Ambient temperature 0...50 °C
- Housing material, surface protection: Coated
- Number of conductors: 7
- Conductor cross-section: 0.34 mm²
- LED display of switching function
- Cable, bending radius min., fixed laying: 5 x D
- Cable, minimum bending radius, flexible laying 10 x D
- Range 1...3 mm
- Tightening torque max. 70 Nm
- Storage temperature: -10...70 °C
- Weight: 210 g
- Function: Signal transmission
- Component: Base
- Signal shape: Unidirectional
- Transfer distance: 1...3 mm
- Offset: ±3 mm
- IEC 61000-4-2/3/4/5/6
- Display InZone: Yes
- Current load per output max. 50 mA
- Digital outputs 4x PNP
- Product type
Inductive coupler
- Type
BIC 1I22-P2A02-M18MN2-EPX07-050
- Operating voltage
24 V DC
- Operating current
500 mA
- Connector
Cable
- Cable length
5 m
- Outputs
PNP
IP67
- Content
1 pc(s)
- Length
94 mm
- (Ø)
18 mm
- Enclosure material
Brass (Ni-plated)
- Material
PA 6.6
PUR
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417875 BALLUFF BIC007T Inductive coupler BIC 1I22-P2A02-M18MN2-EPX07-050 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417875 BALLUFF BIC007T Inductive coupler BIC 1I22-P2A02-M18MN2-EPX07-050 1 pc(s)
Description
Our inductive coupler system is designed for up to eight sensor signals and eight actuator control signals. The system is bidirectional, in other words it transmits signals in both directions. Its Remote unit can individually control and operate clamping units. Up to eight signals can be transmitted from the base station, four channels can be controlled independently of each other. Function = signal transmission, waveform = unidirectional, digital outputs = 4x PNP, transmission distance = 1...3 mm, component = base, connection=cable, 5 m, PUR, rated operating voltage Ue=24 VDC, casing material=brass, Dimensions=Ø 18 x 94 mm, ambient temperature=0...50 °C, protection class=IP67
