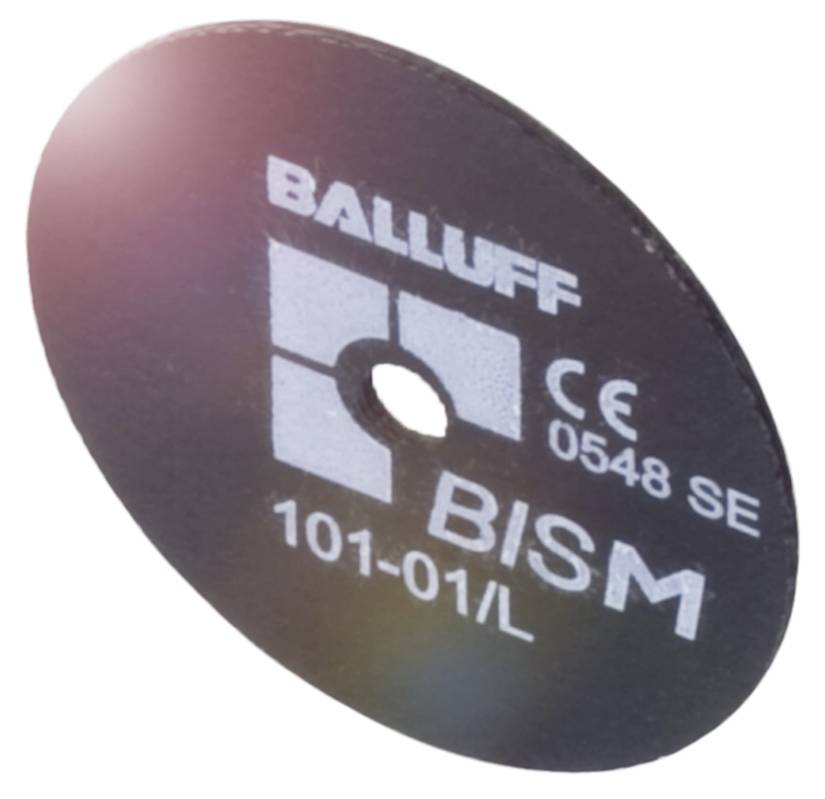

BALLUFF BIS003Y RFID-Tag BIS M-101-01/L 1 pc(s)
EAN:
Part number:
Item no:
Product type
RFID-Tag
Type
BIS M-101-01/L
IP rating
IP67
Content
1 pc(s)
Length
1 mm
Datasheet (PDF)
Highlights & Details
Balluff BIS003Y RFID HF-tags (13.56 MHz)
- Dimensions: Ø 30 x 1 mm
- Product group: HF (13.56 MHz)
- Antenna shape: Round
- UID serial number, read-only: 4 bytes
- Memory type: EEPROM
Technical specifications
- Main features:Dimensions: Ø 30 x 1 mm
- Antenna shape: Round
- Installation: Metal-free (free zone)
- Housing material: Epoxy glass fiber, GF
- Storage temperature: -25...85 °C
- User data, read/write: 752 bytes
- Product group: HF (13.56 MHz)
- Protection class IP67
- Memory type: EEPROM
- UID serial number, read-only: 4 bytes
- Ambient temperature: -25 to 70 °C
- Supported media types: DIN ISO 14443
- Additional features:
- Functional principle: Data carrier
- Dimensions: Ø 30 x 1 mm
- Housing material: Epoxy glass fiber, GF
- EN 60068-2-27, Shock: Yes
- EN 60068-2-6, Vibration: Yes
- Protection class IP67, 1 m, 30 min
- Ambient temperature: -25 to 70 °C
- Application weight 1.60 g
- Antenna shape: Round
- EN 55011: Gr. 1, class A
- Constant shock load: Yes
- EN 60068-2-32, Free Case: Yes
- Storage temperature: -25...85 °C
- Reading time: For 16 bytes: 0.02 s|User ID for 4 bytes: 0.02 s.
- Read cycles: Unlimited
- Programming time: For 16 byte: 0.040s
- Programming cycles: ≥ 100,000
- Memory organization: 47 × 16 bytes
- User data, read/write: 752 bytes
- Memory type: EEPROM
- EN 55022: Gr. 1, Cl. B
- Data retention time/years: ≥ 10
- UID serial number, read-only: 4 bytes
- Supported media types: DIN ISO 14443
- Mounting ambient conditions: Metal-free (free zone)
- Product type
RFID-Tag
- Type
BIS M-101-01/L
IP67
- Content
1 pc(s)
- Length
1 mm
- (Ø)
30 mm
- Enclosure material
Epoxy resin
Fibreglass
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3418023 BALLUFF BIS003Y RFID-Tag BIS M-101-01/L 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418023 BALLUFF BIS003Y RFID-Tag BIS M-101-01/L 1 pc(s)
Description
Data carriers accompany the workpieces throughout the entire production process. They are sometimes exposed to extreme conditions due to high temperatures, metal environment and environmental influences. Our RF disks can withstand the high demands of such environments. In the broad Balluff portfolio you will always find the right product for the most different situations. Product group = HF (13.56 MHz), dimension = Ø 30 x 1 mm, UID serial number, readable only = 4 bytes, user data, read/write = 752 bytes , memory type = EEPROM, supported data carrier types = DIN ISO 14443, antenna form = round, installation = metal free (free zone), storage temperature = -70...85 °C, ambient temperature = -25...25 °C, housing material = epoxy glass, GF, Protection class = IP67, Approval/conformity = CE, UKCA WEEE
