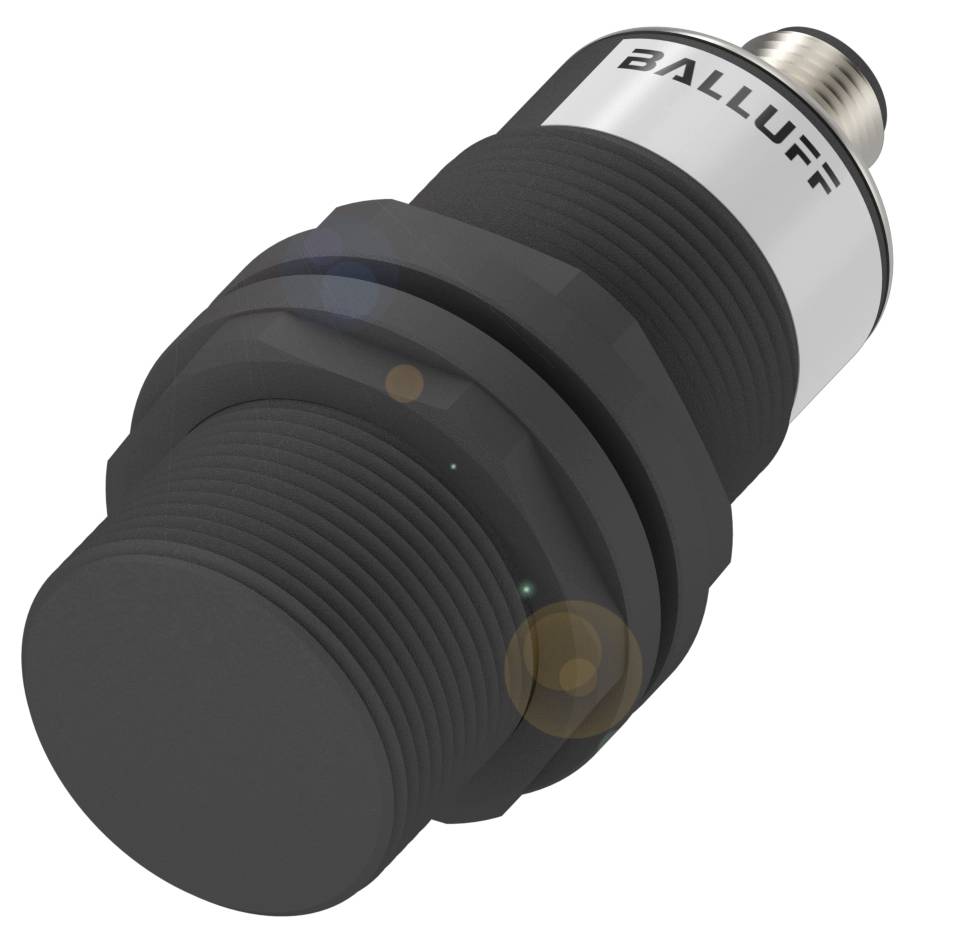

BALLUFF BIS004R RFID reader BIS004R 1 pc(s)
EAN:
Part number:
Item no:
Product type
RFID reader
Type
BIS004R
Connector
Plug
IP rating
IP67
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Balluff BIS004R RFID LF reader (125 kHz)
- Dimensions: Ø 30 x 82 mm
- Installation: Metal-free (free zone)
- Product group: LF (125 kHz)
- Antenna shape: Round
- Communication: Write/read
Technical specifications
- Main features:Dimensions: Ø 30 x 82 mm
- Connection: Plug, 8-pin
- Antenna shape: Round
- Installation: Metal-free (free zone)
- Casing material: PVDF, PA 6.6 nuts
- Communication: Write/read
- Storage temperature: -20...85 °C
- Product group: LF (125 kHz)
- Protection class IP67
- Ambient temperature 0...70 °C
- Additional features:
- Functional principle: Write/read head
- Dimensions: Ø 30 x 82 mm
- Male, 8-pin, A-coded
- Size M30x1.5
- Installation: Metal-free (free zone)
- Casing material: PVDF, PA 6.6 nuts
- EN 60068-2-27, Shock: Yes
- EN 60068-2-6, Vibration: Yes
- Protection class IP67
- Ambient temperature 0...70 °C
- Pollution level: 2
- Application weight 130.00 g
- Antenna shape: Round
- EN 55011: Gr. 1, class A
- Constant shock load: Yes
- EN 60068-2-32, Free Case: Yes
- Storage temperature: -20...85 °C
- Operating location: Indoors
- Maximum altitude: 2000 m.
- Relative humidity: 0…90%, non-condensing
- Product type
RFID reader
- Type
BIS004R
- Connector
Plug
IP67
- Content
1 pc(s)
- Length
82.00 mm
- (Ø)
30 mm
- Enclosure material
PVDF
- Weight
200 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417986 BALLUFF BIS004R RFID reader BIS004R 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417986 BALLUFF BIS004R RFID reader BIS004R 1 pc(s)
Description
BIS L uses the low frequency (LF) 125 kHz and uses passive disks. Read/write heads are the link between data carrier and evaluation unit. BIS L read/write heads provide absolute data security. Thanks to a wide range of designs and dimensions, plant-specific requirements from a wide range of industries such as intralogistics, production, etc. can be taken into account. Product group=LF (125 kHz), dimension=Ø 30 x 82 mm, installation=metal-free (free zone), antenna form=round, connection=plug, 8-pole, Housing material=PVDF, nuts PA 6.6, storage temperature=-20...85 °C, ambient temperature=0...70 °C, protection class=IP67, Approval/conformity=CecULusWEEE
