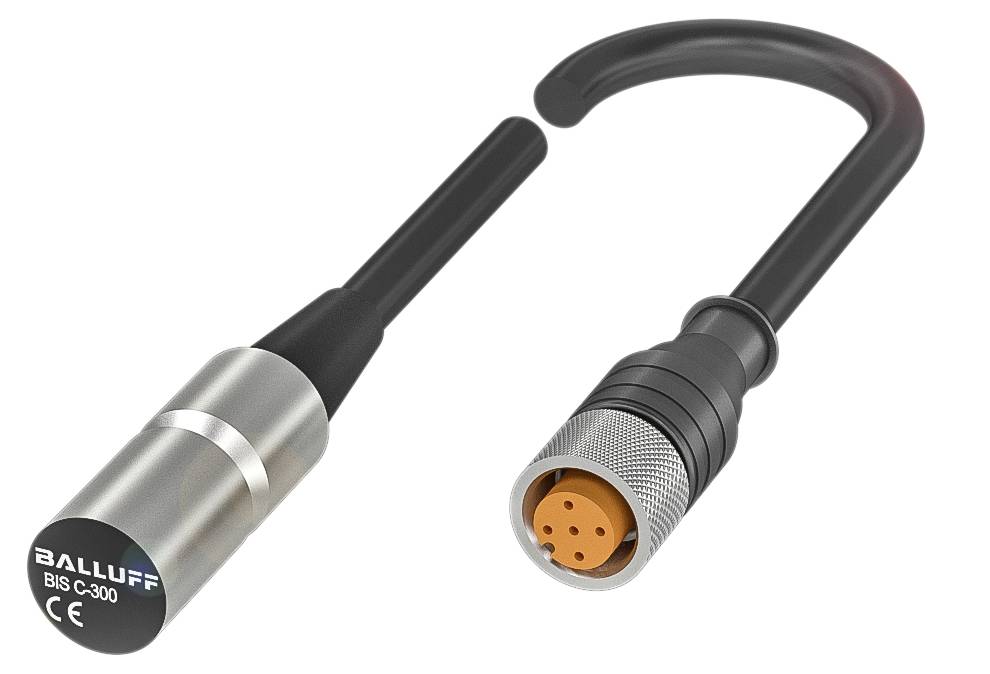

BALLUFF BIS005W RFID reader BIS C-300-05 1 pc(s)
EAN:
Part number:
Item no:
Product type
RFID reader
Type
BIS C-300-05
Cable length
5 m
IP rating
IP67
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Balluff BIS005W Reader for the LF range (70/455 kHz)
- 5.00 m, PU connection
- Dimensions: Ø 14.5 x 35 mm
- Installation: Metal-free (free zone)
- On metal
- Shielded in metal
- Product group: LF (70/455 kHz)
- Antenna shape: Round
Technical specifications
- Main features:Dimensions: Ø 14.5 x 35 mm
- 5.00 m, PU connection
- Antenna shape: Round
- Installation: Metal-free (free zone)
- On metal
- Shielded in metal
- Housing material: Nickel-plated brass
- Storage temperature: -20...85 °C
- Product group: LF (70/455 kHz)
- Protection class IP67
- Ambient temperature 0...70 °C
- Additional features:
- Functional principle: Write/read head
- Dimensions: Ø 14.5 x 35 mm
- MTTF (40 °C) 15080 a
- Mounting: Metal-free (free zone)|on metal|flush in metal
- Connection type 5.00 m, PU
- Cable diameter D 4.80 mm
- Cable length 5 m
- Housing material: Nickel-plated brass
- Casing material PU
- EN 60068-2-27, Shock: Yes
- EN 60068-2-6, Vibration: Yes
- Protection class IP67
- Ambient temperature 0...70 °C
- Housing material, surface protection: Nickel-plated
- Cable, bending radius min., fixed laying: 3 x D
- Cable, minimum bending radius, flexible laying 3 x D
- Cable temperature, fixed installation: -40...70 °C.
- Application weight 210.00 g
- Antenna shape: Round
- EN 55011: Gr. 1, class A
- Constant shock load: Yes
- EN 60068-2-32, Free Case: Yes
- Storage temperature: -20...85 °C
- Product type
RFID reader
- Type
BIS C-300-05
- Cable length
5 m
IP67
- Content
1 pc(s)
- Length
35 mm
- (Ø)
14.5 mm
- Enclosure material
Brass (Ni-plated)
- Material
PU
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417850 BALLUFF BIS005W RFID reader BIS C-300-05 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417850 BALLUFF BIS005W RFID reader BIS C-300-05 1 pc(s)
Description
BIS C operates at low frequency (LF) and uses two frequencies: 455 kHz for writing and 70 kHz for reading. Read/write heads are the link between data carrier and evaluation unit. These are available in different designs, dimensions - e.g. as round/rod antenna. BIS C is established as a standard for tool identification. It is flush-mounted, even directly onto metal. Product group=LF (70/455 kHz), dimension=Ø 14.5 x 35 mm, installation=metal-free (free zone) on metal flush in metal, antenna form=round, connection=5.00 m, PU, casing material=brass, Storage temperature=-20...85 °C, ambient temperature=0...70 °C, protection class=IP67, approval/conformity=CEEEEE
