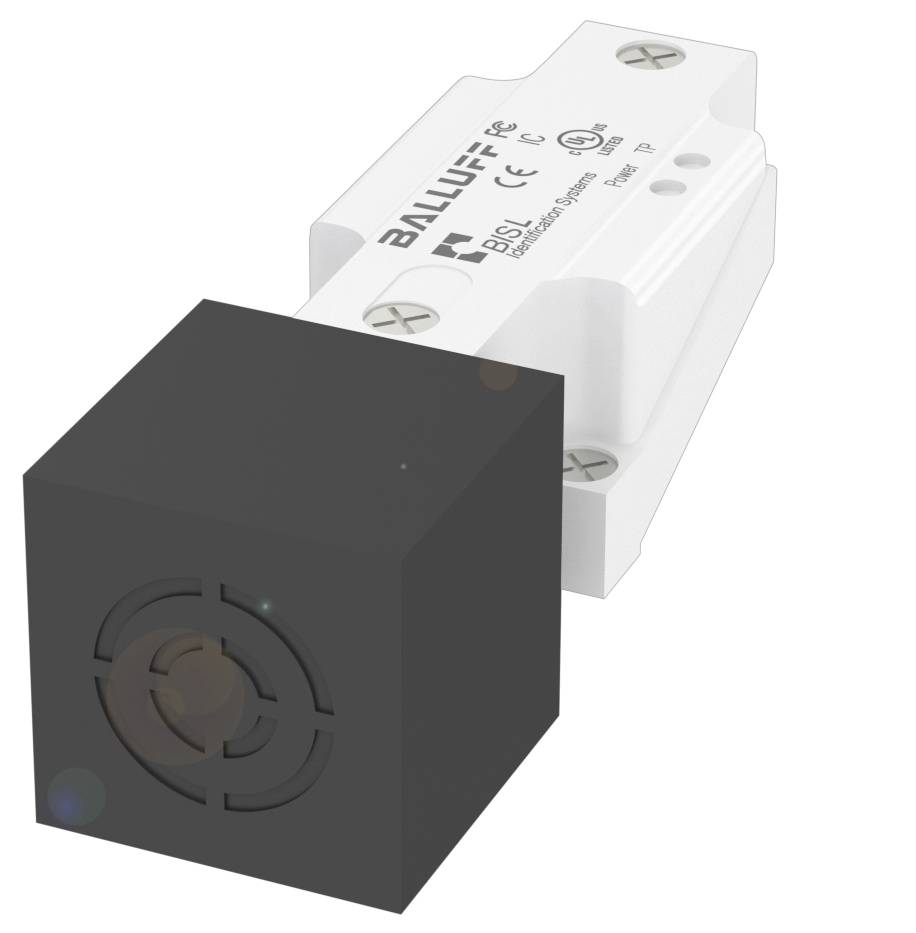

BALLUFF BIS00CM Reader BIS00CM 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reader
Type
BIS00CM
Min. operating voltage
19.2 V
Max. operating voltage
26.4 V
Operating voltage
19.2 - 26.4 V
Datasheet (PDF)
Highlights & Details
Balluff BIS00CM IO-Link Reader for the LF range (125kHz)
- Dimensions 40 x 41 x 120 mm
- Installation: Metal-free (free zone)
- Function principle: Reader
- Product group: LF (125 kHz)
- Antenna shape: Round
Technical specifications
- Main features:Dimension 40 x 41 x 120 mm
- Antenna shape: Round
- Operating voltage Ub 19.2...26.4 VDC
- Installation: Metal-free (free zone)
- Function principle: Reader
- PBT casing material
- Product group: LF (125 kHz)
- Interface: Parallel
- Protection class IP67
- Ambient temperature 0...70 °C
- Additional features:
- Function principle: Reader
- Dimensions 40 x 41 x 120 mm
- Operating voltage Ub 19.2...26.4 VDC
- Connection: (Voltage supply/10|outputs, 2 inputs: TO L-503-|xx)
- Installation: Metal-free (free zone)
- PBT casing material
- Application weight 170.00 g
- Antenna shape: Round
- EN 55011: Gr. 1, class A
- Interface: Parallel
- Input current max. at 24 V: 3 mA
- Remaining ripple max.: Inclusive
- Control input:2 (Optocoupler disconnected)
- Control voltage active: 17…27 V.
- Control voltage inactive: 0…6 V.
- Current consumption max. 50 mA at 24 V DC
- Overflow: LED yellow, flashes
- Power (ON): Green LED
- Tag Present (TP): Yellow LED
- Control output 10 PNP
- Product type
Reader
- Type
BIS00CM
- Min. operating voltage
19.2 V
- Max. operating voltage
26.4 V
- Operating voltage
19.2 - 26.4 V
- Operating current
50 mA
IP67
- Content
1 pc(s)
- Length
120.00 mm
- Width
40.00 mm
- Height
41.00 mm
- Enclosure material
PBT
- Weight
57 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417997 BALLUFF BIS00CM Reader BIS00CM 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417997 BALLUFF BIS00CM Reader BIS00CM 1 pc(s)
Description
BIS L uses the low frequency (LF) 125 kHz and uses passive disks. The read heads with integrated evaluation unit can be connected directly and easily to the higher-level control system via IO-Link, RS232/RS422 or signal-parallel. With multiple designs, dimensions and variants with remote or integrated reading head, you can solve most of the requirements. Product group=LF (125 kHz), operating principle=write/read device, dimension=40 x 41 x 120 mm, installation=metal-free (free zone), antenna form=round, housing material=PBT, interface=parallel, Operating voltage Ub=19.2...26.4 VDC, ambient temperature=0...70 °C, protection class=IP67, approval/conformity=CecULusWEEE
