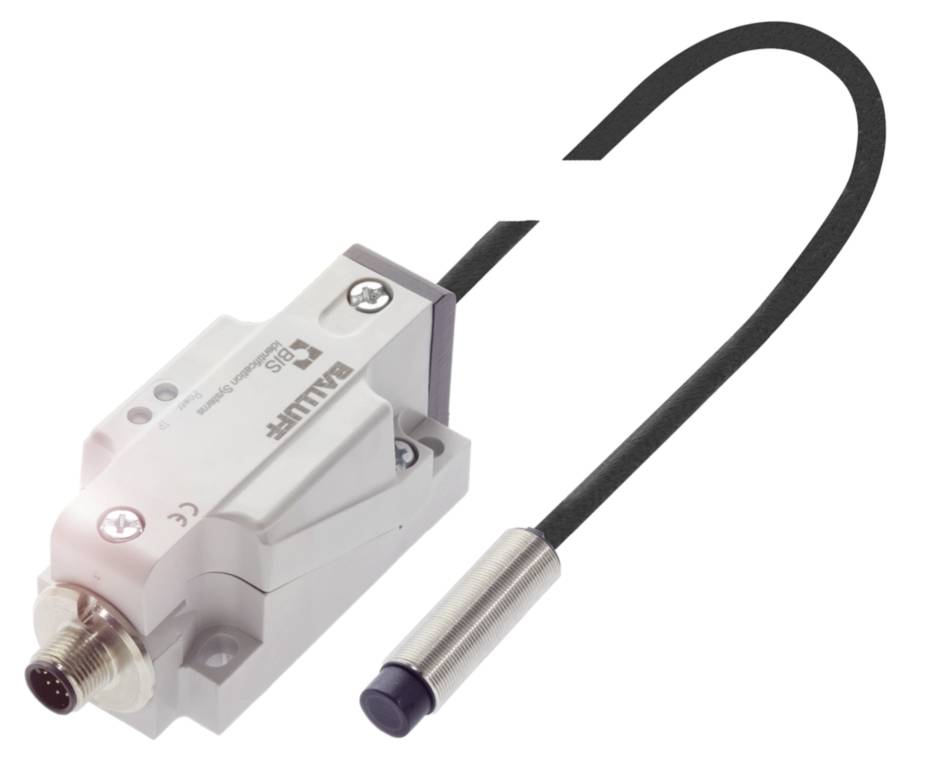

Image similar
Image similar
BALLUFF BIS00E1 Reader BIS L-409-045-003-07-S4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reader
Type
BIS L-409-045-003-07-S4
Min. operating voltage
18 V DC
Max. operating voltage
30 V DC
Operating voltage
18 - 30 V DC
Datasheet (PDF)
Highlights & Details
Balluff BIS00E1 IO-Link Reader for the LF range (125kHz)
- Dimensions: Ø 12 x 53 mm
- Installation: Metal-free (free zone)
- Function principle: Reader
- Product group: LF (125 kHz)
- Antenna shape: Round
Technical specifications
- Main features:Dimensions: Ø 12 x 53 mm
- Connection: Connector, M12x1 connector, 4-pin, 0.50 m, PU
- Antenna shape: Round
- Operating voltage Ub 18...30 VDC
- Installation: Metal-free (free zone)
- Function principle: Reader
- Housing material: Brass, interface PBT, nickel-plated
- Product group: LF (125 kHz)
- Process data IN: 8 bytes
- Process data OUT: 8 bytes
- Interface: IO-Link
- Protection class IP67
- Ambient temperature 0...70 °C
- Additional features:
- Function principle: Reader
- Dimensions: Ø 12 x 53 mm
- Operating voltage Ub 18...30 VDC
- Connection: M12x1 4-pin connector, A-coded
- Size M12x1
- Installation: Metal-free (free zone)
- Connection type: Connector, 0.50 m, PU
- Cable length 0.5 m
- Housing material: Brass, interface PBT, nickel-plated
- Casing material PU
- Housing material, surface protection: Nickel-plated
- Application weight 170.00 g
- Antenna shape: Round
- Interface: IO-Link
- Process data IN: 8 bytes
- Current load capacity in SIO mode: ≤ 50 mA|Output short-circuit proof
- Remaining ripple max. 1.3 Vss
- Current consumption max. 150 mA at 24 V DC
- Power (ON): Green LED
- Tag Present (TP): Yellow LED
- Product type
Reader
- Type
BIS L-409-045-003-07-S4
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Operating voltage
18 - 30 V DC
- Operating current
150 mA
- Connector
M12 plug (4-pin, A coded)
- Cable length
0.50 m
IP67
- Content
1 pc(s)
- Length
53 mm
- (Ø)
12 mm
- Enclosure material
Brass
PBT
- Material
PU
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417974 BALLUFF BIS00E1 Reader BIS L-409-045-003-07-S4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417974 BALLUFF BIS00E1 Reader BIS L-409-045-003-07-S4 1 pc(s)
Description
BIS L uses the low frequency (LF) 125 kHz and uses passive disks. The read heads with integrated evaluation unit can be connected directly and easily to the higher-level control system via IO-Link, RS232/RS422 or signal-parallel. With multiple designs, dimensions and variants with remote or integrated reading head, you can solve most of the requirements. Product group=LF (125 kHz), operating principle=reader, dimension=Ø 12 x 53 mm, installation=metal free (free zone), antenna form=round, connection=connector, M12x1 connector, 4-pole, 0.50 m, PU, housing material=brass, interface PBT, Interface=IO-Link, process data IN=8 bytes, process data OUT=8 bytes, operating voltage Ub=18...30 VDC, ambient temperature=0...70 °C, Protection class=IP67, Approval/conformity=CecULusWEEE
