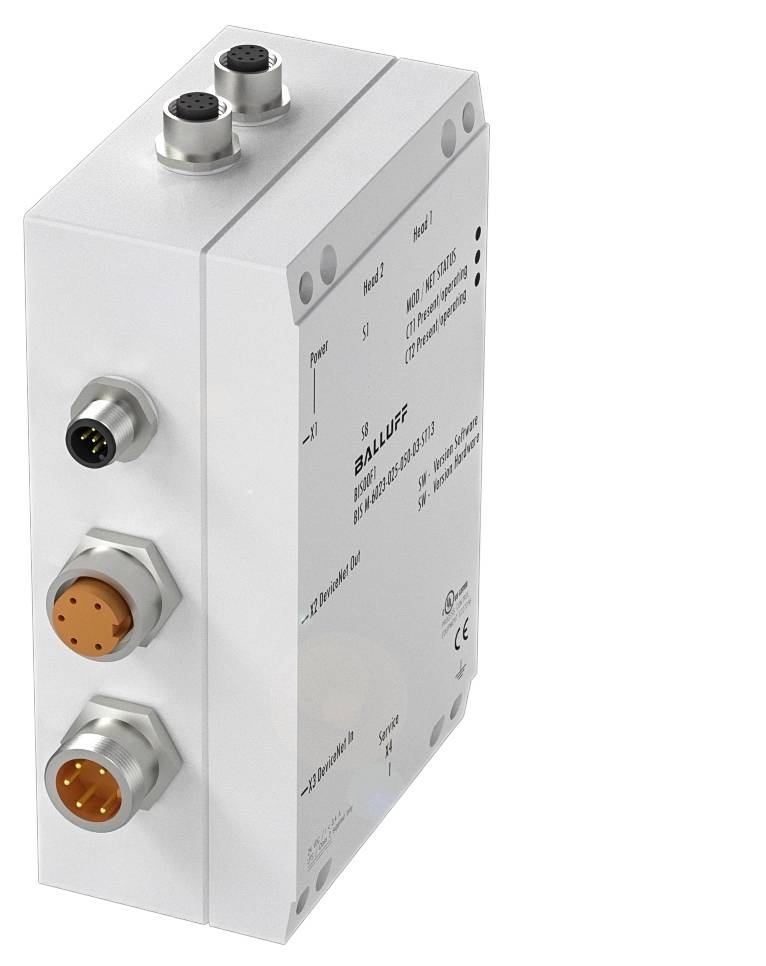

BALLUFF BIS00F1 Signal processing module BIS00F1 1 pc(s)
EAN:
Part number:
Item no:
Product type
Signal processing module
Type
BIS00F1
Operating voltage
24
Min. operating voltage
19.2 V
Max. operating voltage
28.8 V
Datasheet (PDF)
Highlights & Details
Balluff BIS00F1 evaluation units for the HF range (13.56 MHz)
- Operating voltage Ub 19.2...28.8 VDC
- Interface: DeviceNet
- electrically isolated
- Product group: HF (13.56 MHz)
- Supported RFID technologies: HF 13.56 MHz (TO M)
- Number of connectable S/L heads / antennas: 2
Technical specifications
- Main features:Connection: Plug, 5-pin
- Bushing, 5-pin
- Plug, 5-pin
- Number of connectable S/L heads / antennas: 2
- Operating voltage Ub 19.2...28.8 VDC
- Housing material: Aluminium, die-cast
- Product group: HF (13.56 MHz)
- Interface: DeviceNet
- electrically isolated
- Protection class IP65, with connector
- Ambient temperature 0...60 °C
- Supported RFID technologies: HF 13.56 MHz (TO M)
- Additional features:
- Functional principle: Evaluation unit
- Material: Undefined
- Operating voltage Ub 19.2...28.8 VDC
- Housing material: Aluminium, die-cast
- Connection Slots: Head 1: Jack, 8-pin|Head 2: Jack, 8-pin
- EN 55011: Gr. 1, class A
- Connection (power supply IN): X1 (power supply/|digital input):|5-pin plug
- Input current max. at 24 V: 11 mA
- Remaining ripple max. 10%
- Control input:1 (Optocoupler disconnected)
- Control voltage active: 4…40 V.
- Control voltage inactive: 1.5…-40 V.
- Current consumption max. 400 mA at 24 V DC
- Delay time typ.: 5 ms
- Connection (COM 1): X3 (DeviceNet IN): Plug, 5-pin
- Connection port 01, note connection type for all M-3… with plug, 8-pin
- Connection (COM 2): X2 (DeviceNet OUT): Jack, 5-|pin
- Code tag 1 present/operating: LED green/yellow
- Code tag 2 present/operating: LED green/yellow
- MOD/NET STATUS: LED green/LED red
- Connection (Service): X4:|Plug, 4-pin
- Product type
Signal processing module
- Type
BIS00F1
- Operating voltage
24
- Min. operating voltage
19.2 V
- Max. operating voltage
28.8 V
- Operating voltage
19.2 - 28.8 V
- Operating current
24 mA
- Connector
Plug (5-pin)
Socket
Plug (5-pin)
IP65
- Content
1 pc(s)
- Length
160.00 mm
- Width
100.00 mm
- Height
60.00 mm
- Enclosure material
Aluminium
- Weight
840 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418674 BALLUFF BIS00F1 Signal processing module BIS00F1 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418674 BALLUFF BIS00F1 Signal processing module BIS00F1 1 pc(s)
Description
With our evaluation unit UP TO V you can use up to four read/write heads simultaneously for each evaluation unit. Its frequency independence enables the mixed operation of all frequencies (UP TO M, UP TO L, UP TO C, UP TO U). Thus, only one evaluation unit type has to be kept, WAS greatly simplifies storage. For an industry-independent use the evaluation unit is also available with all the popular bus systems worldwide. Product group = HF (13.56 MHz), interface = DeviceNet galvanically isolated, supported RFID technologies = HF 13.56 MHz (TO M), number of connectable S/L heads / antennas = 2, operating voltage Ub = 19.2...28.8 VDC, housing material = aluminum, die-cast, ambient temperature = 0...60 °C, protection type = IP65, with connector, approval/conformity = CE, UKCA, cULus, WEEE, connector = plug, 5-pin socket, 5-pin plug, 5-pin
