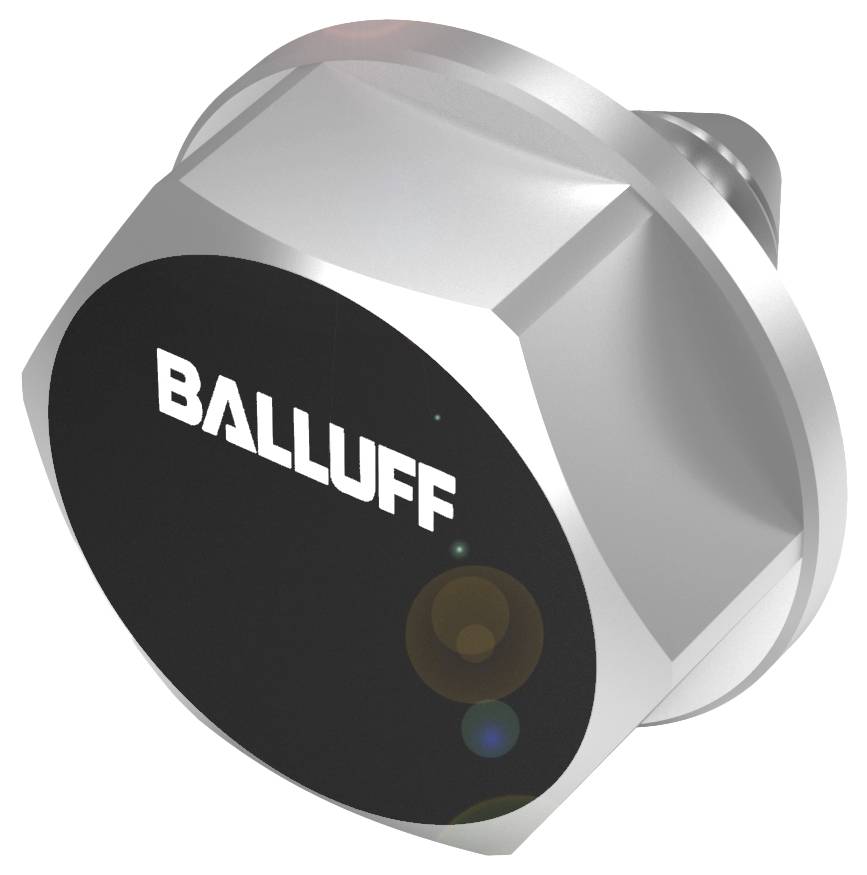

BALLUFF BIS00J2 Part info screw BIS C-140-05/L-M8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Part info screw
Type
BIS C-140-05/L-M8
Content
1 pc(s)
Length
21 mm
(Ø)
22 mm
Datasheet (PDF)
Highlights & Details
Balluff BIS00J2 Data Screws for LF Range (70/455 kHz)
- Dimensions: Ø 22 x 21 mm
- Product group: LF (70/455 kHz)
- Antenna shape: Round
- Memory type: EEPROM
- User data, read/write: 1023 bytes
Technical specifications
- Main features:Dimensions: Ø 22 x 21 mm
- Antenna shape: Round
- Installation: Metal-free (free zone)
- On metal
- Shielded in metal
- Housing material: Steel, PA 12, GF30, coated
- Storage temperature: -25...95 °C
- User data, read/write: 1023 bytes
- Product group: LF (70/455 kHz)
- Memory type: EEPROM
- Ambient temperature: -25 to 70 °C
- Additional features:
- Functional principle: Data carrier
- Antenna shape: Round
- EN 55011: Gr. 1, class A
- Reading time: For 32x8 bit:0.19 sec.
- Read cycles: Unlimited
- Programming time: For 1x8 bit: 0.3s|for 32x8 bit: 0.6s
- Programming cycles: Up to 30 °C: 1,000,000|to 70 °C: 500,000
- 32 × 8-bit memory organization
- User data, read/write: 1023 bytes
- Memory type: EEPROM
- Product type
Part info screw
- Type
BIS C-140-05/L-M8
- Content
1 pc(s)
- Length
21 mm
- (Ø)
22 mm
- Enclosure material
Steel (coated)
PA 12
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3417861 BALLUFF BIS00J2 Part info screw BIS C-140-05/L-M8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417861 BALLUFF BIS00J2 Part info screw BIS C-140-05/L-M8 1 pc(s)
Description
BIS C operates at low frequency (LF) and uses two frequencies: 455 kHz for writing and 70 kHz for reading. Due to the large variety of passive data carriers in dimensions, design, memory size, working temperature, material, Assembly, range can be converted to application-optimized for almost any technical task. BIS C is established as a tool identification standard. Product group=LF (70/455 kHz), dimension=Ø 22 x 21 mm, user data, read/write=1023 bytes, memory type=EEPROM, antenna form=round, flush-mounted=metal (free zone) in metal, storage temperature=-25...95 °C, ambient temperature=-25...70 °C, casing material=steel, PA 12, GF30, approval/conformity=CecULusWEEE
