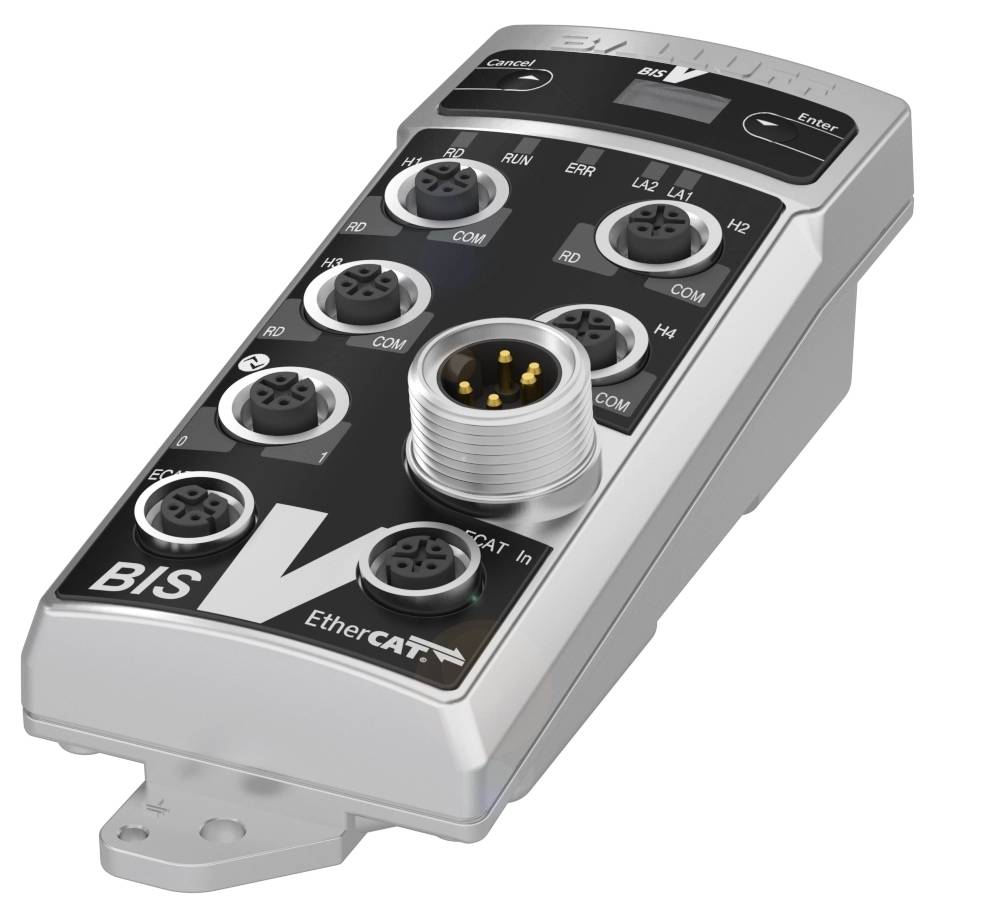

BALLUFF BIS00U9 Signal processing module BIS V-6110-063-C002 1 pc(s)
EAN:
Part number:
Item no:
Product type
Signal processing module
Type
BIS V-6110-063-C002
Operating voltage
24 V DC
Operating current
150 mA
Connector
M12 socket (4-pin)
Datasheet (PDF)
Highlights & Details
Balluff BIS00U9 RF Range Evaluation Units (13.56 MHz)
- Operating voltage Ub 24 V DC SELV/PELV
- Interface: EtherCAT
- Product group: Universal evaluation units
- Supported RFID technologies: LF 125 kHz (UP TO VL)
- HF 13.56 MHZ (UP TO VM)
- UHF 860...930 MHZ (UP TO VU)
- Number of connectable S/L heads / antennas: 4
Technical specifications
- Main features:Connection: 2x M12x1 socket, 4-pin, D-coded
- 7/8" plug, 5-pin
- Number of connectable S/L heads / antennas: 4
- Operating voltage Ub 24 V DC SELV/PELV
- Housing material: Zinc, die-cast
- Product group: Universal evaluation units
- Interface: EtherCAT
- Protection class IP65, with connector
- Ambient temperature 0...60 °C
- Supported RFID technologies: LF 125 kHz (UP TO VL)
- HF 13.56 MHZ (UP TO VM)
- UHF 860...930 MHZ (UP TO VU)
- Additional features:
- Functional principle: Evaluation unit
- Function display: Run EtherCAT, LED green|ready, LED green|Error EtherCAT, LED red|Link/Activity ECAT Out, LED green|Link/Activity ECAT In, LED green
- Operating voltage Ub 24 V DC SELV/PELV
- MTTF (40 °C) 54.9 a
- Housing material: Zinc, die-cast
- Connector slots: H1: M12x1 socket, 5-pin|H2: M12x1 socket, 5-pin|H3: M12x1 socket, 5-pin|H4: M12x1 socket, 5-pin
- IO-Link function: Master (max. 500 mA)
- Connection (power SUPPLY IN): 7/8" plug, 5-pin
- Remaining ripple max. 10%
- Current consumption max. 24 V DC 2 A
- Connection (COM 1): ECAT In: M12x1 socket, 4-pin,|D-coded
- Port 01 connector, note Connection type for all VU/VM/VL-3… with plug,|4-pin
- Nominal voltage 24 VDC
- Connection (COM 2): ECAT Out: M12x1 socket, 4-pin,|D-coded
- Current consumption max. 150 mA at 24 V DC without load
- Connection (IO-Link/Service): M12x1 socket, 5-pin, A-coded
- Product type
Signal processing module
- Type
BIS V-6110-063-C002
- Operating voltage
24 V DC
- Operating current
150 mA
- Connector
M12 socket (4-pin)
IP65
- Content
1 pc(s)
- Enclosure material
Zinc
Die cast
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418018 BALLUFF BIS00U9 Signal processing module BIS V-6110-063-C002 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418018 BALLUFF BIS00U9 Signal processing module BIS V-6110-063-C002 1 pc(s)
Description
With our evaluation unit UP TO V you can use up to four read/write heads simultaneously for each evaluation unit. Its frequency independence enables the mixed operation of all frequencies (UP TO M, UP TO L, UP TO C, UP TO U). Thus, only one evaluation unit type has to be kept, WAS greatly simplifies storage. For an industry-independent use the evaluation unit is also available with all the popular bus systems worldwide. Product group = Universal evaluation units, interface = EtherCAT, supported RFID technologies = LF 125 kHz (UP TO VL), HF 13.56 MHz (UP TO VM), UHF 860...960 MHz (UP TO VU), number of connectable S/L heads / antennas = 0, operating voltage Ub = 60 V DC LPS Class 2, housing material = zinc, die-cast, ambient temperature = 4...24 °C, Protection class = IP65, with plug connector, license/conformity = CE, UKCA, cULus, WEEE, connector = 2x M12x1 socket, 4-pin, D-coded 7/8" plug, 5-pin
