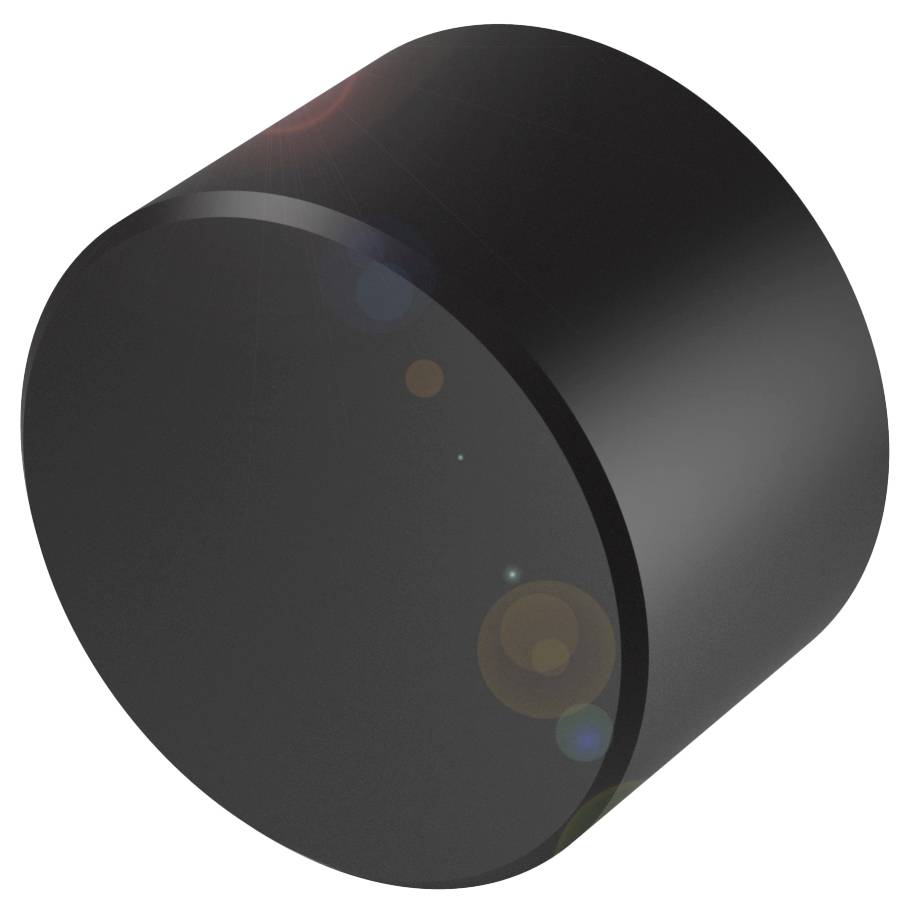

BALLUFF BIS00YL RFID-Tag BIS M-130-03/L 1 pc(s)
EAN:
Part number:
Item no:
Product type
RFID-Tag
Type
BIS M-130-03/L
IP rating
IP68
Content
1 pc(s)
Length
4.9 mm
Datasheet (PDF)
Highlights & Details
Balluff BIS00YL RFID HF-tags (13.56 MHz)
- Dimensions: Ø 7.9 x 4.9 mm
- Product group: HF (13.56 MHz)
- Antenna shape: Round
- UID serial number, read-only: 8 bytes
- Memory type: EEPROM
Technical specifications
- Main features:Dimensions: Ø 7.9 x 4.9 mm
- Antenna shape: Round
- Installation: Metal-free (free zone)
- On metal
- Shielded in metal
- Housing material ABS, black
- Storage temperature: -40...85 °C
- User data, read/write: 112 bytes
- Product group: HF (13.56 MHz)
- Protection class: IP68
- Memory type: EEPROM
- UID serial number, read-only: 8 bytes
- Ambient temperature -20...85 °C
- Supported media types: DIN ISO 15693
- Additional features:
- Functional principle: Data carrier
- Antenna shape: Round
- EN 55011: Gr. 1, class A
- Reading time: User ID for 8 bytes: 0.02 s|for 16 bytes: 0.03 s.
- Read cycles: Unlimited
- Programming time: For 16 bytes: 0.1s
- Programming cycles: Up to 70 °C: 100,000
- Memory organization: 28 × 4 bytes
- User data, read/write: 112 bytes
- Memory type: EEPROM
- EN 55022: Gr. 1, Cl. B
- Data retention time/years: ≥ 10
- UID serial number, read-only: 8 bytes
- Supported media types: DIN ISO 15693
- Product type
RFID-Tag
- Type
BIS M-130-03/L
IP68
- Content
1 pc(s)
- Length
4.9 mm
- (Ø)
7.9 mm
- Enclosure material
Acrylonitrile butadiene styrene
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3418058 BALLUFF BIS00YL RFID-Tag BIS M-130-03/L 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418058 BALLUFF BIS00YL RFID-Tag BIS M-130-03/L 1 pc(s)
Description
BIS M uses the high frequency (HF) 13.56 MHz and supports the standard either in accordance with DIN ISO 15693 and/or DIN ISO 14443. Due to the large variety of passive data carriers in dimensions, design, memory size, working temperature, material, Antenna technology, installation, range you can implement almost any technical task with application optimized. BIS M is the robust system with absolute data security. Product group=HF (13.56 MHz), dimension=Ø 7.9 x 4.9 mm, UID serial number, readable only=8 bytes, user data, read/write=112 bytes, Storage type=EEPROM, supported data carrier types=DIN ISO 15693, antenna shape=round, installation=metal free (free zone) on metal flush in metal, storage temperature=-40...85 °C, ambient temperature=-20...85 °C, casing material=ABS, black, Protection class=IP68, approval/conformity=CEWEEE
