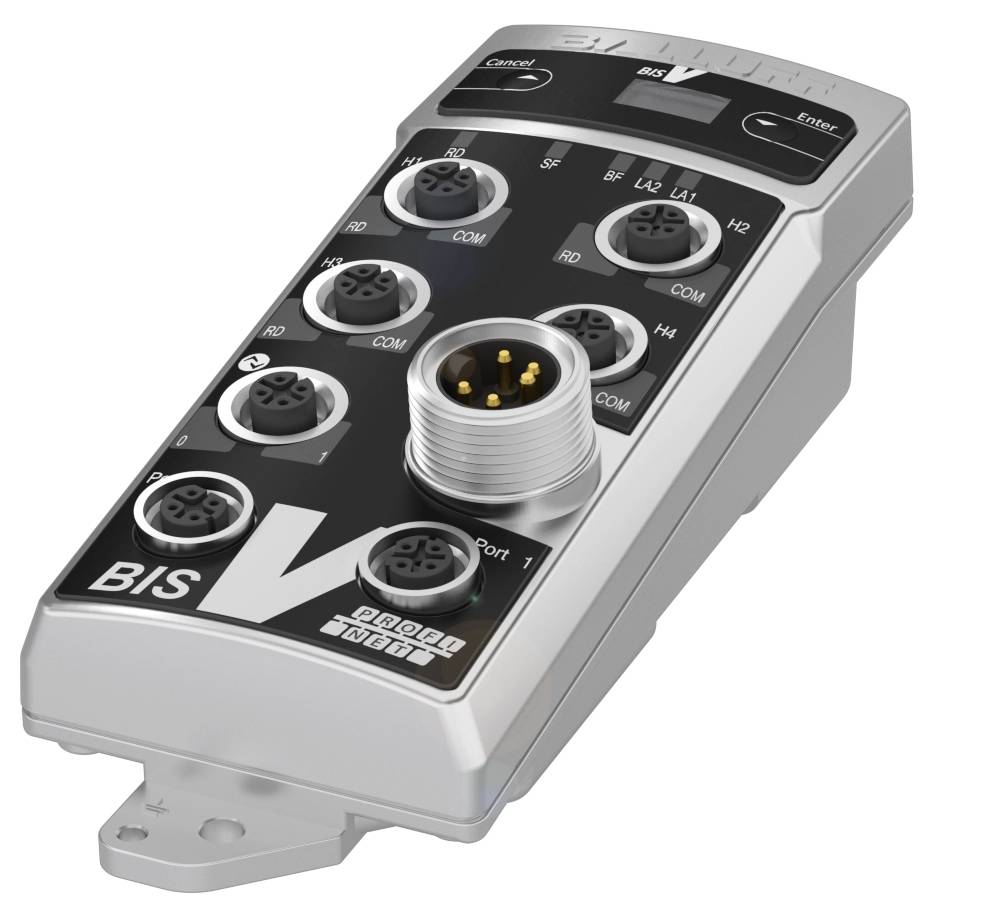

BALLUFF BIS013W Signal processing module BIS013W 1 pc(s)
EAN:
Part number:
Item no:
Product type
Signal processing module
Type
BIS013W
Operating voltage
24 V DC
Operating current
150 mA
Connector
M18
Datasheet (PDF)
Highlights & Details
Balluff BIS013W Evaluation Units for the LF Range (70/455 kHz)
- Operating voltage Ub 24 V DC SELV/PELV
- Profinet I/O (IRT) interface
- 2-port switch
- Product group: Universal evaluation units
- Supported RFID technologies: LF 125 kHz (UP TO VL)
- LF 70/455 KHZ (TO C)
- HF 13.56 MHZ (UP TO VM)
- UHF 860...930 MHZ (UP TO VU)
- Number of connectable S/L heads / antennas: 4
Technical specifications
- Main features:Connection: 2x M12x1 socket, 4-pin, D-coded
- 7/8" plug, 5-pin
- Number of connectable S/L heads / antennas: 4
- Operating voltage Ub 24 V DC SELV/PELV
- Housing material: Zinc, die-cast
- Product group: Universal evaluation units
- Profinet I/O (IRT) interface
- 2-port switch
- Protection class IP65, with connector
- Ambient temperature 0...60 °C
- Supported RFID technologies: LF 125 kHz (UP TO VL)
- LF 70/455 KHZ (TO C)
- HF 13.56 MHZ (UP TO VM)
- UHF 860...930 MHZ (UP TO VU)
- Additional features:
- Functional principle: Evaluation unit
- Function display: System Failure Status, LED red|BUS Failure Status, LED red|Ready, LED green|Link/Activity Port2, LED green|Link/Activity Port1, LED green
- Operating voltage Ub 24 V DC SELV/PELV
- MTTF (40 °C) 18.5 a
- Housing material: Zinc, die-cast
- Connector slots: H1: M12x1 socket, 5-pin|H2: M12x1 socket, 5-pin|H3: M12x1 socket, 5-pin|H4: M12x1 socket, 5-pin
- IO-Link function: Master (max. 500 mA)
- Connection (power SUPPLY IN): 7/8" plug, 5-pin
- Remaining ripple max. 10%
- Current consumption max. 24 V DC 2 A
- Connection (COM 1): Port 1: M12x1 socket, 4-pin, D-|coded
- Connection port 01, note Connection type for all VU/VM/VL-3… with plug,|4-pin and C-3… with adapter
- Nominal voltage 24 VDC
- Connection (COM 2): Port 2: M12x1 socket, 4-pin, D-|coded
- Current consumption max. 150 mA at 24 V DC without load
- Connection (IO-Link/Service): M12x1 socket, 5-pin, A-coded
- EN 301489-1/-3: EN55022 (CLASS A)
- Product type
Signal processing module
- Type
BIS013W
- Operating voltage
24 V DC
- Operating current
150 mA
- Connector
M18
IP65
- Content
1 pc(s)
- Length
172.00 mm
- Width
48.00 mm
- Height
62.00 mm
- Enclosure material
Zinc
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418004 BALLUFF BIS013W Signal processing module BIS013W 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418004 BALLUFF BIS013W Signal processing module BIS013W 1 pc(s)
Description
With our evaluation unit UP TO V you can use up to four read/write heads simultaneously for each evaluation unit. Its frequency independence enables the mixed operation of all frequencies (UP TO M, UP TO L, UP TO C, UP TO U). Thus, only one evaluation unit type has to be kept, WAS greatly simplifies storage. For an industry-independent use the evaluation unit is also available with all the popular bus systems worldwide. Product group = universal evaluation units, interface = Profinet I/O (IRT) 2-port switch, supported RFID technologies = LF 125 kHz (UP TO VL), LF 70/455 kHz (UP TO C), HF 13.56 MHz (UP TO VM), UHF 860...960 MHz (UP TO VU), number of connectable S/L heads / antennas = 4, Operating voltage Ub = 24 V DC LPS Class 2, casing material = zinc, die-cast iron, ambient temperature = 0...60 °C, protection class = IP65, with connector, certification/conformity = CE, UKCA, cULus, WEEE, connector = 2x M12x1 socket, 4-pin, D-coded 7/8" plug, 5-pin
