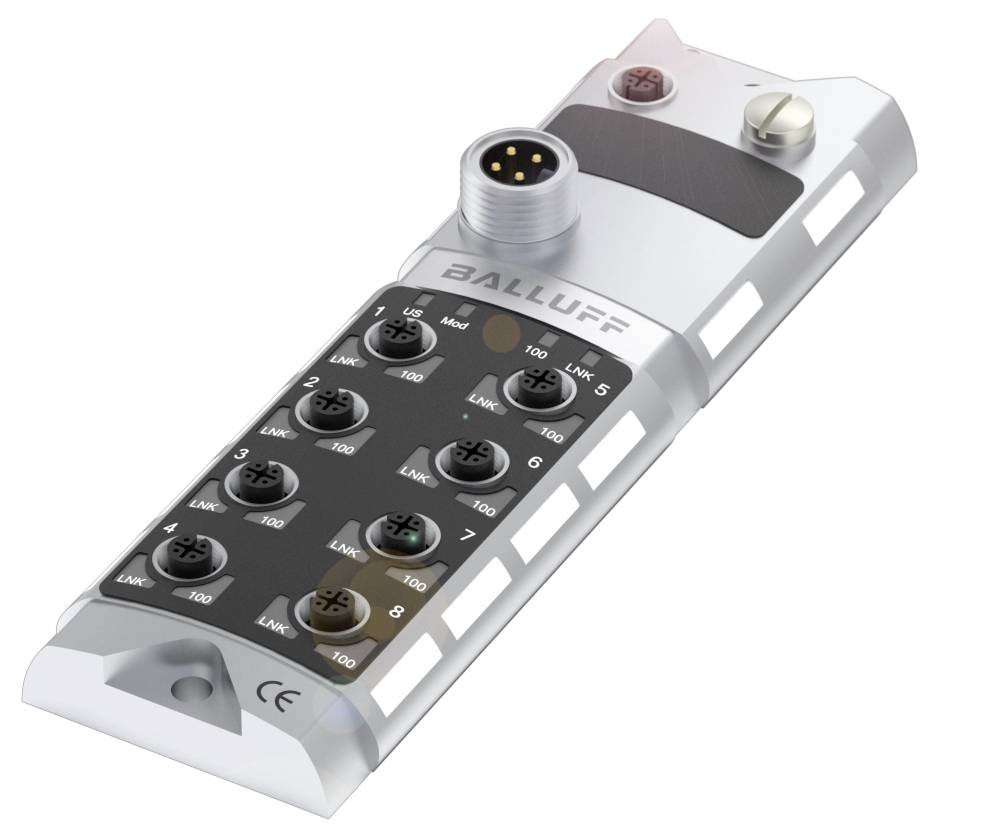

BALLUFF BNI000F Splitter BNI EIP-950-000-Z009 1 pc(s)
EAN:
Part number:
Item no:
Product type
Splitter
Type
BNI EIP-950-000-Z009
Min. operating voltage
18 V DC
Max. operating voltage
30.2 V DC
Operating voltage
18 - 30.2 V DC
Datasheet (PDF)
Highlights & Details
Balluff BNI000F unmanaged switches
- Dimensions 68 x 32.4 x 224 mm
- Interface: Ethernet TCP/IP
- 10 base-T/100 base-TX
- Principle of operation: Active distributor
- Attachment: 2-hole screw fixing
- Housing material: Zinc die-cast, nickel-plated
Technical specifications
- Main features:Dimension 68 x 32.4 x 224 mm
- Connection slots: 8x M12x1 socket, 4-pin, D-coded
- Attachment: 2-hole screw fixing
- Operating voltage Ub 18...30.2 VDC
- Principle of operation: Active distributor
- Housing material: Zinc die-cast, nickel-plated
- Interface: Ethernet TCP/IP
- 10 base-T/100 base-TX
- Protection class IP67
- Ambient temperature -5...55 °C
- Additional features:
- Delivery: Label plate (20x)|Blind plugs M12 (4x)|Earthing band|Spring ring|Quick start guide|Screw M4x6
- Dimensions 68 x 32.4 x 224 mm
- Attachment: 2-hole screw fixing
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 18...30.2 VDC
- MTTF (40 °C) 43 a
- Housing material: Zinc die-cast, nickel-plated
- EN 60068-2-6, vibration: 61…500 Hz, constant|acceleration 15 g|5…61 Hz, constant amplitude 1|mm
- Protection class IP67, screwed down
- Ambient temperature -5...55 °C
- Display of switching function: Yes
- Connection slots: 8x M12x1 socket, 4-pin, D-|coded
- Module supply display: Green LED
- Contacts, surface protection: Nickel-plated 2 µm/gold-plated 0.4 µm
- Case shielding: Yes
- Surface protection: Cu 15 µm|Ni 15 µm
- Shape: Double-row
- Storage temperature: -25...75 °C
- Interface: Ethernet TCP/IP|10Base-T/100Base-TX
- Transfer rate 10/100 Mbit/s.
- Display of data transmission active: Green LED
- Seal material FKM 75
- Input current max. at 24 V: 130 mA
- Connection (COM 1): UPLINK: M12x1 connector, 4-pin,|D-coded
- Display Sensor Supply US: YES
- Inputs/outputs can be configured: No.
- Total current us, sensor 9.0 A
- Mounting earthing strap M4
- Additional interfaces: 8x Ethernet/IP 10Base-T/|100Base-TX
- Display Data rate: Yellow LED
- Flow control: Half duplex/full duplex (IEEE|802.3x pause)
- Cable types according to IEEE 802.3: Shielded twisted pair: At least STP|CAT5/STP CAT5e
- Product type
Splitter
- Type
BNI EIP-950-000-Z009
- Min. operating voltage
18 V DC
- Max. operating voltage
30.2 V DC
- Operating voltage
18 - 30.2 V DC
- Connector
M12 plug (4-pin)
IP67
- Content
1 pc(s)
- Length
68 mm
- Width
32.4 mm
- Height
224 mm
- Enclosure material
Zinc (die-cast, Ni-plated)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418879 BALLUFF BNI000F Splitter BNI EIP-950-000-Z009 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418879 BALLUFF BNI000F Splitter BNI EIP-950-000-Z009 1 pc(s)
Description
With our unmanaged switches, 5-port and 8-port Ethernet devices can be connected in a star-shaped way on one component. The unmanaged switches meet both protection class IP67 and IP20 and support the transfer rates 10 and 100 Mbit/s. The transmission rate is set automatically via the auto-negotiation function. Operational principle = Active distributor, dimension=68 x 32.4 x 224 mm, fixing=2-hole screw mounting, housing material=zinc, die casting, interface=Ethernet TCP/IP 10Base-T/100Base-TX, Operating voltage Ub=18...30.2 VDC, connection slots=8x M12x1 socket, 4-pin, D-coded, ambient temperature=-5...55 °C, Protection class=IP67
