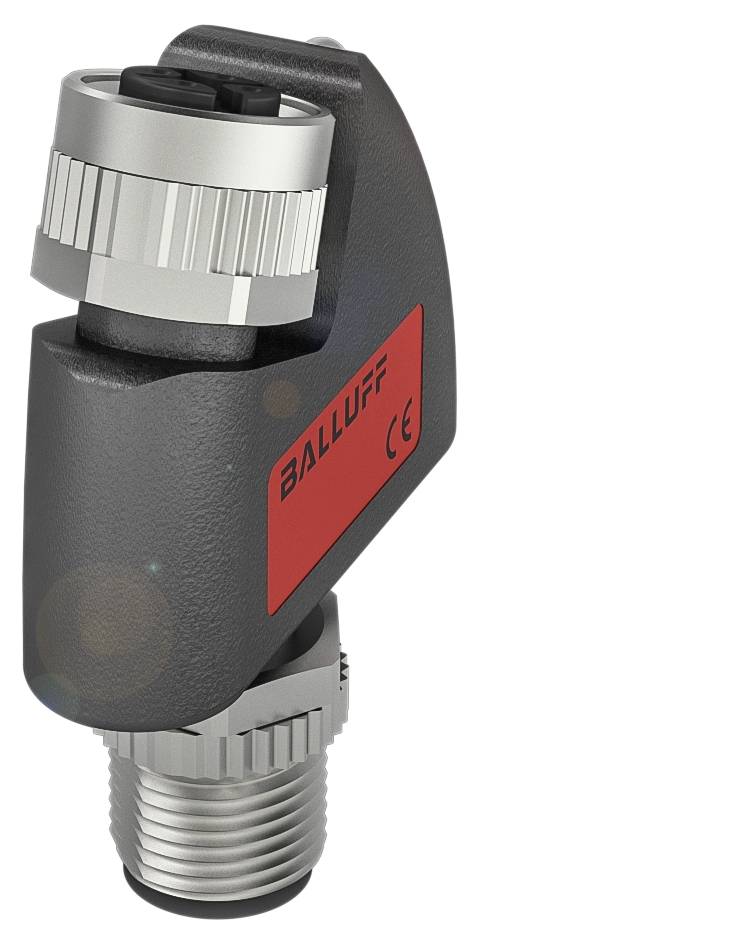

Image similar
BALLUFF BNI0041 Signal converter BNI IOL-712-000-K023 1 pc(s)
EAN:
Part number:
Item no:
Product type
Signal converter
Type
BNI IOL-712-000-K023
Min. operating voltage
18 V DC
Max. operating voltage
30.2 V DC
Operating voltage
18 - 30.2 V DC
Datasheet (PDF)
Highlights & Details
Balluff BNI0041 signal converter
- Operating voltage Ub 18...30.2 VDC
- Interface: IO-Link 1.0
- Design: Analogue converter
- Inputs/outputs can be configured: No.
- Analog inputs: Analog, current (0…20 mA)
Technical specifications
- Main features:Dimension 14.2 x 50.4 x 40 mm
- Analog inputs: Analog, current (0…20 mA)
- Connection: M12x1 4-pin connector, A-coded
- Sensor connection: M12x1 socket, 4-pin, A-coded
- Resolution ≤ 14 Bit
- Design: Analogue converter
- Operating voltage Ub 18...30.2 VDC
- Inputs/outputs can be configured: No.
- PA casing material
- Process data IN: 2 bytes
- Process data cycle min.: 3 ms
- Interface: IO-Link 1.0
- Protection class IP67, screwed down
- COM2 (38.4 kBaud) transfer rate
- Ambient temperature -5...70 °C
- Additional features:
- Delivery: Quick instructions
- Dimensions 14.2 x 50.4 x 40 mm
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 18...30.2 VDC
- MTTF (40 °C) 418 a
- PA casing material
- Protection class IP67, screwed down
- Ambient temperature -5...70 °C
- Connection slots: M12x1 socket, 4-pin, A-coded
- Display IO-Link communication: Green LED
- Module supply display: Green LED
- Contacts, surface protection: Nickel-plated 2 µm/gold-plated 0.4 µm
- Case shielding: No.
- IO-Link Version: 1
- IO-Link function: Device
- Process data cycle min.: 3 ms
- Storage temperature: -25...70 °C
- Resolution ≤ 14 Bit
- Interface: IO-Link 1.0
- Process data IN: 2 bytes
- COM2 (38.4 kBaud) transfer rate
- Seal material FKM 75
- Cycle time min.: 3 ms
- Connection (COM 1): M12x1 connector, 4-pin, A-coded
- Inputs/outputs can be configured: No.
- Total current us, sensor 4 A
- Analog inputs: Analog, current (0…20 mA)
- IO-Link ports, number: 1
- Power consumption without load max. 30 mA
- Product type
Signal converter
- Type
BNI IOL-712-000-K023
- Min. operating voltage
18 V DC
- Max. operating voltage
30.2 V DC
- Operating voltage
18 - 30.2 V DC
- Operating current
30 mA
- Connector
M12 socket (4-pin)
IP67
- Content
1 pc(s)
- Length
14.2 mm
- Width
50.4 mm
- Height
40 mm
- Enclosure material
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418645 BALLUFF BNI0041 Signal converter BNI IOL-712-000-K023 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418645 BALLUFF BNI0041 Signal converter BNI IOL-712-000-K023 1 pc(s)
Description
With our signal converters, you can change output signals or count and time functions in a simple way. For this, signal converters are available for sensors with analogue/switching outputs as well as signal amplifiers. They can be flexibly mounted in the switch cabinet or even on site. Interface = IO-Link 1.0, operating voltage Ub = 18...30.2 VDC, connection (COM 1) = M12x1 plug, 4-pin, A-coded, connection slots = M12x1 socket, 4-pin, A-coded, analog inputs = analog, current (0.20 mA), configurable inputs/outputs = no, total current US, sensor = 40 A, housing material = PA, dimension = 14.2 x 50.4 x 4 mm, Ambient temperature = -5...70 °C, protection class = IP67, bolted condition, transfer rate = COM2 (38.4 kBaud), process data cycle min. = 3 ms, process data IN = 2 bytes
