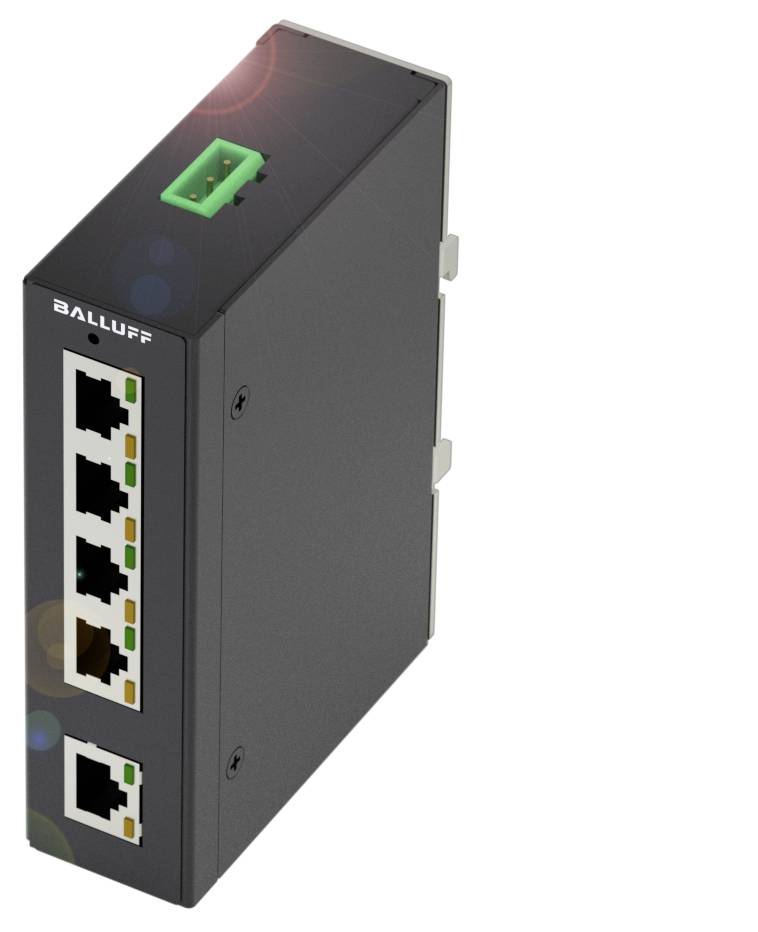

BALLUFF BNI005E Splitter BNI TCP-951-000-E028 1 pc(s)
EAN:
Part number:
Item no:
Product type
Splitter
Type
BNI TCP-951-000-E028
Min. operating voltage
12 V DC
Max. operating voltage
48 V DC
Operating voltage
12 - 48 V DC
Datasheet (PDF)
Highlights & Details
Balluff BNI005E unmanaged switches
- Dimensions 30 x 76.5 x 110 mm
- Interface: Ethernet TCP/IP
- 10 base-T/100 base-TX
- Principle of operation: Active distributor
- Mounting: DIN rail mounting
- Housing material: Steel, coated
Technical specifications
- Main features:Dimension 30 x 76.5 x 110 mm
- Connection slots: 5x RJ45-socket, 8-pin
- Mounting: DIN rail mounting
- Operating voltage Ub 12...48 VDC
- Principle of operation: Active distributor
- Housing material: Steel, coated
- Interface: Ethernet TCP/IP
- 10 base-T/100 base-TX
- IP30 protection
- Ambient temperature -10...60 °C
- Additional features:
- Dimensions 30 x 76.5 x 110 mm
- Mounting: DIN rail mounting
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 12...48 VDC
- Housing material: Steel, coated
- EN 60068-2-6, vibration 5 g, 10…150 Hz, amplitude 0.35|mm
- IP30 protection
- Ambient temperature -10...60 °C
- Connection slots: 5x RJ45-socket, 8-pin
- Module supply display: Green LED
- Case shielding: Yes
- Shape: Single-row
- Storage temperature: -25...85 °C
- Interface: Ethernet TCP/IP|10Base-T/100Base-TX
- Transfer rate 10/100 Mbit/s.
- Display of data transmission active: Green LED
- Input current max. at 24 V: 150 mA
- Connection (COM 1): UPLINK: RJ45 jack, 8-pin
- Additional interfaces: 4x Ethernet TCP 10Base-T/|100Base-TX
- Display Data rate: Yellow LED
- Flow control: Half duplex/full duplex (IEEE|802.3x pause)
- Cable types according to IEEE 802.3: Shielded twisted pair: At least STP|CAT5/STP CAT5e
- Product type
Splitter
- Type
BNI TCP-951-000-E028
- Min. operating voltage
12 V DC
- Max. operating voltage
48 V DC
- Operating voltage
12 - 48 V DC
- Connector
RJ45 (9-pin)
IP30
- Content
1 pc(s)
- Length
30 mm
- Width
76.5 mm
- Height
110 mm
- Enclosure material
Steel (coated)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418888 BALLUFF BNI005E Splitter BNI TCP-951-000-E028 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418888 BALLUFF BNI005E Splitter BNI TCP-951-000-E028 1 pc(s)
Description
With our unmanaged switches, 5-port and 8-port Ethernet devices can be connected in a star-shaped way on one component. The unmanaged switches meet both protection class IP67 and IP20 and support the transfer rates 10 and 100 Mbit/s. The transmission rate is set automatically via the auto-negotiation function. Operational principle = Active distributor, dimension=30 x 76.5 x 110 mm, mounting=DIN rail mounting, housing material=steel, coated, interface=Ethernet TCP/IP 10Base-T/100Base-TX, Operating voltage Ub=12...48 VDC, connection slots=5x RJ45-socket, 8-pin, ambient temperature=-10...60 °C, protection class=IP30
