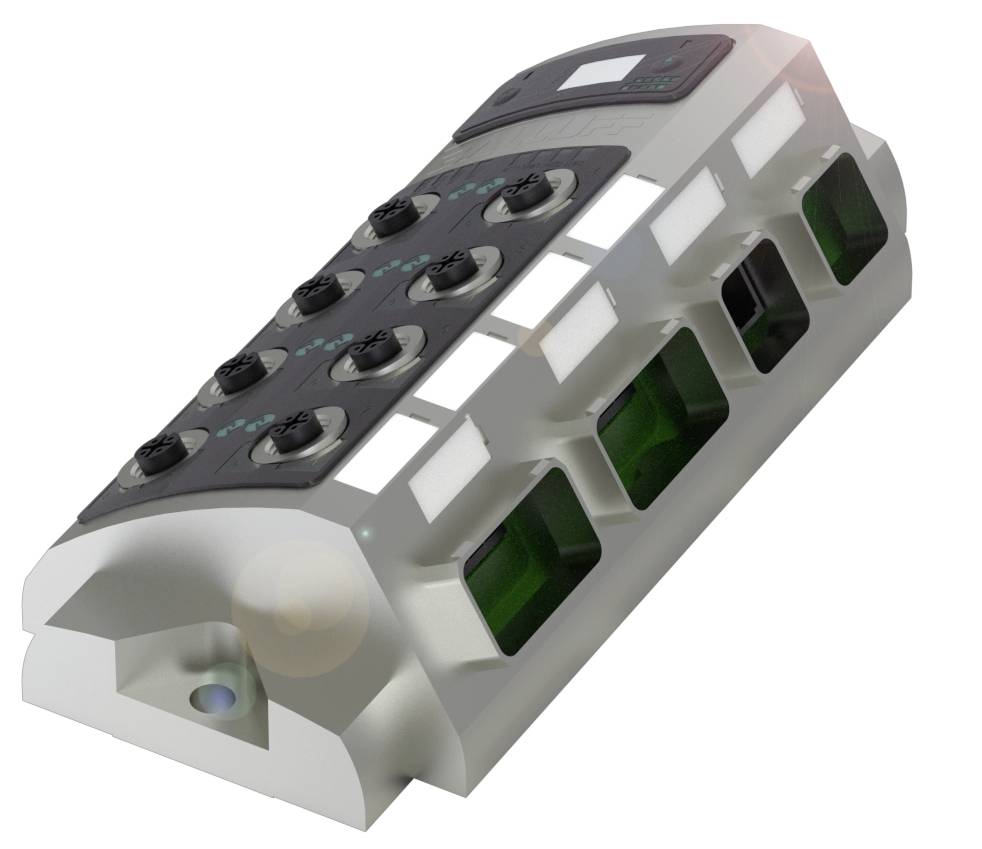

Image similar
Image similar
BALLUFF BNI007K Network module BNI007K 1 pc(s)
EAN:
Part number:
Item no:
Product type
Network module
Type
BNI007K
Min. operating voltage
18 V DC
Max. operating voltage
30.2 V DC
Operating voltage
18 - 30.2 V DC
Datasheet (PDF)
Highlights & Details
Balluff BNI007K Network Modules for Profinet
- Output current max. 2 A
- Interface: Profinet
- Additional interfaces: 8x IO-Link
- Port class A
- Fast start-up (FSU): Yes
Technical specifications
- Main features:Dimension 84.4 x 47 x 185.4 mm
- Connection (COM 1): Push-pull RJ45, 8-pin
- Connection (COM 2): Push-pull RJ45, 8-pin
- Connection (power supply IN): Push-pull, 5-pin
- Connection (OUT power supply): Push-pull, 5-pin
- Connection slots: 8x M12x1 socket, 5-pin, A-coded
- Output current max. 2 A
- Operating voltage Ub 18...30.2 VDC
- Digital outputs at 16 x PNP
- Digital inputs: 16x PNP, type 2
- Inputs/outputs can be configured: Yes
- Fast start-up (FSU): Yes
- Housing material: Zinc die-cast, nickel-plated
- IO-Link Version: 1.1
- Port class A
- Safety hub support: Yes
- Interface: Profinet
- Protection class IP67
- Total current UA, actuator 16.0 A
- Total current us, sensor 16.0 A
- Ambient temperature -5...70 °C
- Additional interfaces: 8x IO-Link
- Additional features:
- Delivery: Label plate (20x)|Blind plugs M12 (4x)|Earthing band|Spring ring|Quick start guide|Screw M4x6
- Dimensions 84.4 x 47 x 185.4 mm
- Attachment: 2-hole screw fixing
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 18...30.2 VDC
- Housing material: Zinc die-cast, nickel-plated
- EN 60068-2-6, vibration: 5…61 Hz, constant amplitude 1|mm|61…500 Hz, constant|acceleration 15 g.
- Protection class IP67, screwed down
- Ambient temperature -5...70 °C
- Display switching function LED yellow
- Output current max. 2 A
- Connection slots: 8x M12x1 socket, 5-pin, A-|coded
- Display IO-Link communication: Green LED
- Contacts, surface protection: NiAu
- Case shielding: Yes
- Surface protection Cu 15 µm
- IO-Link Version: 1.1
- IO-link function: Master
- Shape: Double-row
- Storage temperature: -25...70 °C
- Profinet I/O interface
- Digital outputs at 16 x PNP
- Digital inputs: 16x PNP, type 2
- Seal material FKM 75
- Connection (power supply IN): Push-pull, 5-pin
- Connection (COM 1): Push-pull RJ45, 8-pin
- Supported web browsers: Google chrome|Mozilla Firefox
- Display of actuator supply UA: LED green
- Display Sensor supply US: Green LED
- Address range: IPV4
- Inputs/outputs can be configured: Yes
- Total current UA, actuator 16.0 A
- Total current us, sensor 16.0 A
- Transmission rate Electrical connection: 10/100 Mbit/s.
- Connection (COM 2): Push-pull RJ45, 8-pin
- Connection (OUT power supply): Push-pull, 5-pin
- Mounting earthing strap M4
- Fast start-up (FSU): Yes
- Compliance class: B.
- Network load class III
- Port class A
- Additional interfaces: 8x IO-Link
- Ambient temperature UL max. 45 °C
- Product type
Network module
- Type
BNI007K
- Min. operating voltage
18 V DC
- Max. operating voltage
30.2 V DC
- Operating voltage
18 - 30.2 V DC
- Connector
RJ45 (9-pin)
- Outputs
PNP
IP67
- Content
1 pc(s)
- Length
84.4 mm
- Width
47 mm
- Height
185.4 mm
- Enclosure material
Zinc (die-cast, Ni-plated)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417891 BALLUFF BNI007K Network module BNI007K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417891 BALLUFF BNI007K Network module BNI007K 1 pc(s)
Description
It is understandable that industrial automation has developed significantly through Profinet. With Profinet you can integrate drives and safety systems directly into the network world. The Ethernet-based system is much faster than Profibus, but can easily be combined with it. Functional principle=Active distributor, interface=Profinet I/O, Fast Start-Up (FSU)=yes, operating voltage Ub=18...30.2 VDC, connection (COM 1)=Push-Pull RJ45, 8-pole connection (COM 2)=Push-Pull RJ45, 8-pole connection (power supply IN)=Push-Pull, 5-pole connection (power OUT)=Push-Pull, 5-pin, connector slots=8x M12x1 socket, 5-pin, A-coded, digital inputs=16x PNP, Type2, digital outputs=16x PNP, inputs/outputs configurable=yes, output current max.=2 A, total current US, Sensor = 16.0 A, total current UA, actuator = 16.0 A, case material = zinc, cast iron, Dimensions=84.4 x 47 x 185.4 mm, ambient temperature=-5...70 °C, protection class=IP67, additional interfaces=8x IO-Link, IO-Link version=1.1, Port class = Type A
