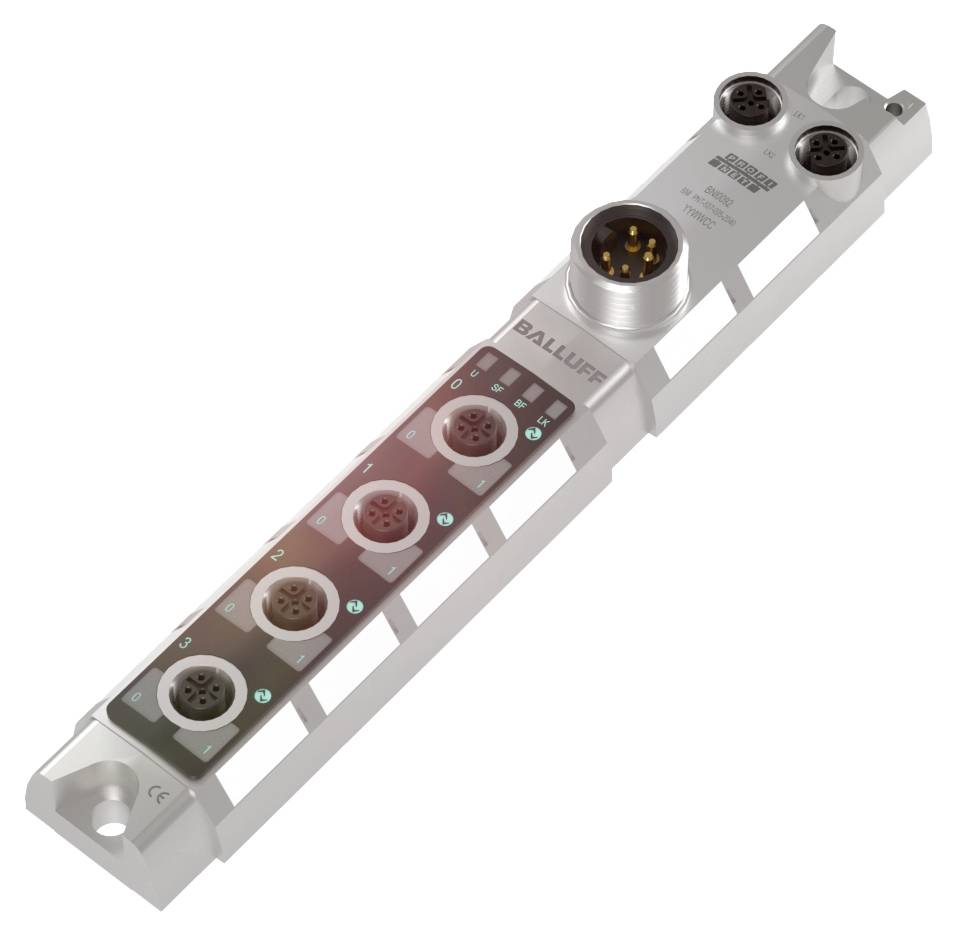

BALLUFF BNI0092 Network module BNI0092 1 pc(s)
EAN:
Part number:
Item no:
Product type
Network module
Type
BNI0092
Min. operating voltage
18 V DC
Max. operating voltage
30.2 V DC
Operating voltage
18 - 30.2 V DC
Datasheet (PDF)
Highlights & Details
Balluff BNI0092 Network Modules for Profinet
- Output current max. 2 A
- Interface: Profinet
- Additional interfaces: 4x IO-Link
- Port class A
- Fast start-up (FSU): Yes
Technical specifications
- Main features:Dimension 37 x 32.6 x 224 mm
- Connection (COM 1): M12x1 socket, 4-pin, D-coded
- Connection (COM 2): M12x1 socket, 4-pin, D-coded
- Connection (power SUPPLY IN): 7/8" plug, 5-pin
- Connection slots: 4x M12x1 socket, 5-pin, A-coded
- Output current max. 2 A
- Operating voltage Ub 18...30.2 VDC
- Digital outputs 8 x PNP
- Digital inputs 8 x PNP, type 3
- Inputs/outputs can be configured: Yes
- Fast start-up (FSU): Yes
- Housing material: Zinc die-cast, nickel-plated
- IO-Link Version: 1.1
- Port class A
- Safety hub support: Yes
- Interface: Profinet
- Protection class IP67
- Total current UA, actuator 9.0 A
- Total current us, sensor 9.0 A
- Ambient temperature -40...70 °C
- Additional interfaces: 4x IO-Link
- Additional features:
- Delivery: Label plate (20x)|Blind plugs M12 (4x)|Earthing band|Spring ring|Quick start guide|Screw M4x6
- Dimensions 37 x 32.6 x 224 mm
- Attachment: 2-hole screw fixing
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 18...30.2 VDC
- MTTF (40 °C) 48 a
- Housing material: Zinc die-cast, nickel-plated
- Display switching function LED yellow
- Output current max. 2 A Short circuit and overload protected
- Connection slots: 4x M12x1 socket, 5-pin, A-|coded
- Display IO-Link communication: Green LED
- Contacts, surface protection: NiAu
- Case shielding: Yes
- Surface protection: Cu 15 µm|Ni 15 µm
- IO-Link Version: 1.1
- IO-link function: Master
- Shape: Single-row
- Profinet I/O interface
- Transfer rate 10/100 Mbit/s.
- Digital outputs 8 x PNP
- Digital inputs 8 x PNP, type 3
- Seal material FKM 75
- Connection (power SUPPLY IN): 7/8" plug, 5-pin
- Connection (COM 1): M12x1 socket, 4-pin, D-coded
- Supported web browsers: Google chrome|Mozilla Firefox
- Display of actuator supply UA: LED green
- Address range: IPV4
- Inputs/outputs can be configured: Yes
- Total current UA, actuator 9.0 A
- Total current us, sensor 9.0 A
- Connection (COM 2): M12x1 socket, 4-pin, D-coded
- Mounting earthing strap M4
- Fast start-up (FSU): Yes
- Compliance class: B.
- Network load class III
- Port class A
- Additional interfaces: 4x IO-Link
- Display Sensor supply US Electrical characteristics: Green LED
- Product type
Network module
- Type
BNI0092
- Min. operating voltage
18 V DC
- Max. operating voltage
30.2 V DC
- Operating voltage
18 - 30.2 V DC
- Connector
M12 socket (4-pin)
- Outputs
PNP
IP67
- Content
1 pc(s)
- Length
37 mm
- Width
32.6 mm
- Height
224 mm
- Enclosure material
Zinc (die-cast, Ni-plated)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417893 BALLUFF BNI0092 Network module BNI0092 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417893 BALLUFF BNI0092 Network module BNI0092 1 pc(s)
Description
It is understandable that industrial automation has developed significantly through Profinet. With Profinet you can integrate drives and safety systems directly into the network world. The Ethernet-based system is much faster than Profibus, but can easily be combined with it. Operating principle = Active distributor, interface = Profinet I/O, Fast Start-Up (FSU)=yes, operating voltage Ub=18...30.2 VDC, connection (COM 1)=M12x1 socket, 4-pin, D-coded, connector (COM 2)=M12x1 socket, 4-pin, D-coded, Connection (power supply IN)=7/8" plug, 5-pole, connector slots=4x M12x1 socket, 5-pole, A-coded, Digital inputs=8x PNP, Typ 3, Digital outputs=8x PNP, inputs/outputs configurable=yes, Output current max.=2 A, Total current us, sensor=9.0 A, total current UA, actuator=9.0 A, case material=zinc, Die-cast, dimension=37 x 32.6 x 224 mm, ambient temperature=-40...70 °C, protection class=IP67, additional interfaces=4x IO-Link, IO-Link version=1.1, Port class = Type A
