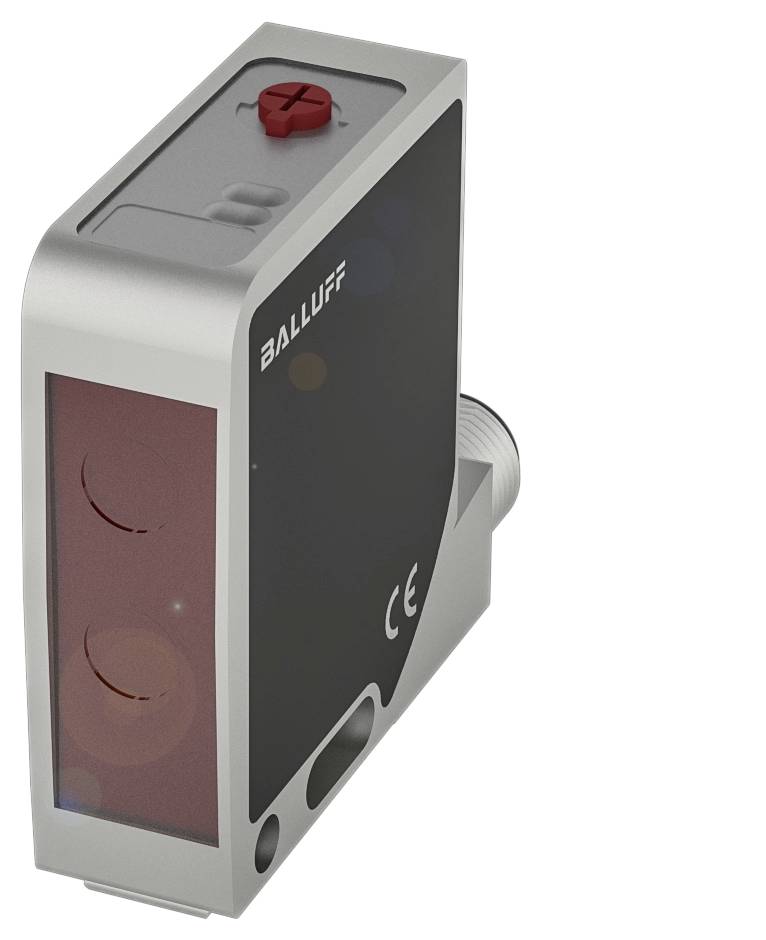

BALLUFF BOD000R Proximity sensor 1 pc(s) 24 Max. range (open field): 200 mm (L x W x H) 50.00 x 15.00 x 42.50 mm
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Proximity sensor
Min. operating voltage
18.0 V
Max. operating voltage
30.0 V
Max. range
200 mm
Datasheet (PDF)
Highlights & Details
Balluff BOD000R distance sensors with metal housing and red light laser and glass as material for the active surface
- Dimensions 15 x 42.5 x 50 mm
- Series 21M
- Interface: Analog, current 4…20 mA
- linear rising
- 2x PNP/NPN NO/NC
- Functional principle: Optoelectronic distance sensor
- Optical functional principle: Triangulation
Technical specifications
- Main features:Dimension 15 x 42.5 x 50 mm
- Connection: Connector, M12x1 connector, 5-pin
- Resolution 100...200 µm
- Series 21M
- Operating voltage Ub 18...30 VDC
- Functional principle: Optoelectronic distance sensor
- Optical functional principle: Triangulation
- Housing material: Zinc, die-cast
- Aluminium
- Accuracy ±1% FS
- Light: Red laser light
- Light spot size: Ø 1 mm with 200 mm
- Range: Adjustable from 20...200 mm
- Interface: Analog, current 4…20 mA
- linear rising
- 2x PNP/NPN NO/NC
- Beam characteristic: Collimated
- Repeatability 1% FS
- Additional features:
- Functional principle: Optoelectronic distance sensor
- Dimensions 15 x 42.5 x 50 mm
- Mounting: M4 screw
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 300 ms
- Operating voltage Ub 18...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 0.1 µF
- Residual ripple max. (% of Ue): 15%
- Switching frequency 70 Hz
- Connection: Connector, M12x1 connector, 5-|pin
- Short-circuit protection: Yes
- Hysteresis H max. (% of Sr): 3.0%
- Rated switching distance Sn: 200 mm, adjustable
- MTTF (40 °C) 69 a
- Active surface, material: Glass
- Housing material: Zinc, die cast|aluminum
- Range: Adjustable from 20...200 mm
- Adjustment range|Switching distance (Sn)
- Contacts, surface protection: Gold-plated
- Series 21M
- Shape: Cube|connection can be rotated
- Display: Output function Output 1 -|LED yellow|LED green: Operating voltage
- Adjuster: Rotary switch 5 positions
- Shutdown delay toff max.: 7 ms
- ON delay max.: 7 ms
- Idle current IO max. at Ue 50 mA
- Voltage drop Ud max. at Ie 2 V
- Application: Distance measurement
- Resolution 100...200 µm
- Repeatability 1% FS
- Load resistance RL min. (Analogue U): 2 kOhm
- Accuracy ±1% FS
- Distance deviation 6 % max. (% of Sr): 1.5 %
- Reverse polarity protected detection range/measuring range: Yes
- Packaging type
Piece
- Product type
Proximity sensor
- Type
BOD000R
- Content
1 pc(s)
- Operating voltage
24
- Min. operating voltage
18.0 V
- Max. operating voltage
30.0 V
- Operating voltage
18.0 - 30.0 V
- Features
Incl. background suppression
- Outputs
NPN, change-over, PNP, change-over
200 mm
- Connector
Plug
Plug
IP67
- Min. temperature
-10 °C
- Max. temperature
50 °C
- Length
50.00 mm
- Width
15.00 mm
- Height
42.50 mm
- Dim
(L x W x H) 50.00 x 15.00 x 42.50 mm
- Connection
Connector
- Manufacturer part #
BOD000R
- Nominal voltage
30.0 V
- Enclosure material
Zinc
- Material
Zinc (die-cast)
Aluminium
- Response time
20 ms
- Switching distance (max.)
200 mm
- Switching frequency
70 Hz
- Operating current
100 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416200 BALLUFF BOD000R Proximity sensor 1 pc(s) 24 Max. range (open field): 200 mm (L x W x H) 50.00 x 15.00 x 42.50 mm
User & Safety Instructions
User & Safety Instructions 3416200 BALLUFF BOD000R Proximity sensor 1 pc(s) 24 Max. range (open field): 200 mm (L x W x H) 50.00 x 15.00 x 42.50 mm
Description
Balluff's optoelectronic distance sensors support you in positioning, material flow control or level query as well as in many other applications. Whether in the automotive industry, factory automation and logistics or in steel construction, you can achieve noticeable increases in productivity everywhere with reliable and distance measurement and can prevent errors. For this purpose, different measurement ranges from 20 mm to 20 m are available, some of which can be set, and variants with and without background suppression are available. Our sensors use red light or laser based on the triangulation principle or time of flight technology (TOF) without contact and thus wear. They are housed in durable plastic or metal enclosures and have analog power and voltage outputs and digital serial or IO-Link interfaces. Our opto-electronic distance sensors are available in degree of protection IP65/67 and IP69K, so that they are suitable even for harsh environments. Series = 21M, dimension = 15 x 42.5 x 50 mm, interface = analogue, current 4.20 mA linear increasing 2x PNP/NPN NO/NC contact (NO/NC), operating principle = optoelectronic distance sensor, optical functional principle = triangulation, beam characteristic = collimated, light type = laser red light, light spot size = Ø 1 mm at 200 mm, Range = 20...200 mm adjustable, accuracy = ±1% FS, repeatability = 1% FS, resolution = 100...200 µm, connection = connector, M12x1 connector, 5-pin, case material = zinc, Die-cast aluminum, operating voltage Ub = 18...30 VDC, approval/conformity = CE, UKCA, cULus, WEEE
