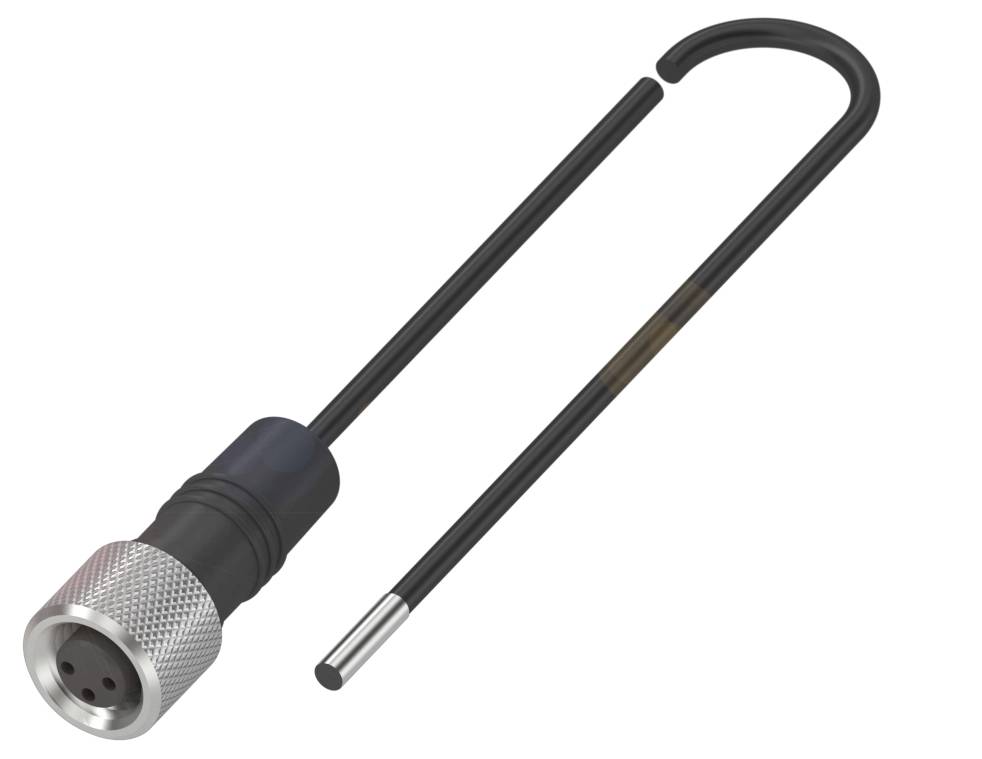

BALLUFF BOH0002 BOH0002 Optical sensor head 1 pc(s) (Ø x L) 2 mm x 8.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Optical sensor head
Type
BOH0002
Content
1 pc(s)
IP rating
IP65
Datasheet (PDF)
Highlights & Details
Balluff BOH0002 light sensors with different light types
- Dimensions: Ø 2 x 8 mm
- Series G02
- Interface: For switching amplifier
- Optical sensor head
- Optical functional principle: Light switch, energetic
Technical specifications
- Main features:Dimensions: Ø 2 x 8 mm
- Active surface, material: Epoxy
- Connection: Cable with connector, M8x1 socket, 1 m, PUR
- Series G02
- Mounting: Clamps
- Optical sensor head
- Optical functional principle: Light switch, energetic
- Housing material: Stainless steel
- Smallest part type: 0.1 mm
- LED infrared light
- Range 0...12 mm
- Interface: For switching amplifier
- Beam characteristics: Varied
- Additional features:
- Optical sensor head
- Connection: Cable with connector, M8x1-|female, 1 m, PUR
- Rated switching distance Sn: 12 mm
- Cable diameter D 1.80 mm
- Cable length 1 m
- Range 0...12 mm
- Series G02
- Shape: Cylinder|straight lens
- Reference basic device: BAE SA-OH-059-…
- Packaging type
Piece
- Product type
Optical sensor head
- Type
BOH0002
- Content
1 pc(s)
IP65
- Min. temperature
-10 °C
- Max. temperature
55 °C
- Length
8.00 mm
- Width
8 mm
- (Ø)
2 mm
- Dim
(Ø x L) 2 mm x 8.00 mm
- Cable length
1 m
- Enclosure material
Stainless steel
- Connector
Plug
Socket
- Transmitter type
LED IR
- Smallest detectable object size (diameter)
0.1 mm
12 mm
- Switching distance (max.)
12 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416193 BALLUFF BOH0002 BOH0002 Optical sensor head 1 pc(s) (Ø x L) 2 mm x 8.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3416193 BALLUFF BOH0002 BOH0002 Optical sensor head 1 pc(s) (Ø x L) 2 mm x 8.00 mm Piece
Description
The Microremote sensors' modular system with innovative sensor elements meets your individual requirements: Various housing designs ensure a particularly high degree of design freedom, precise optoelectronic components ensure a high level of process accuracy in every application. Series=G02, Dimension=Ø 2 x 8 mm, interface=for switching amplifier, functional principle=optical sensor head, functional principle optical=light switch, energetic, Beam characteristic=divergent, light type=infra-red, range=0...12 mm, connection=cable with connector, M8x1 connector, 1.00 m, PUR, housing material=stainless steel, active surface, material=epoxy, Approval/conformity=CEEEEE
