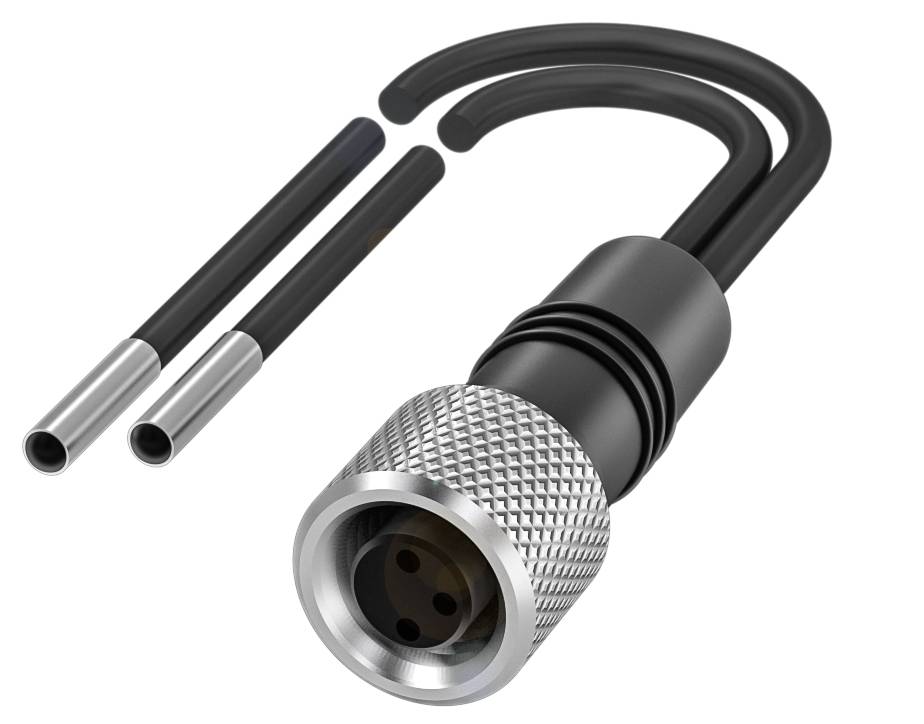

BALLUFF BOH000J BOH000J Optical sensor head 1 pc(s) (Ø x L) 2 mm x 8.60 mm
EAN:
Part number:
Item no:
Product type
Optical sensor head
Type
BOH000J
Content
1 pc(s)
IP rating
IP65
Min. temperature
-10 °C
Datasheet (PDF)
Highlights & Details
Balluff BOH000J one-way light barriers in different light types
- Dimensions: Ø 2 x 8.6 mm
- Series G02
- Interface: For switching amplifier
- Optical sensor head
- Application: Water detection
Technical specifications
- Main features:Dimensions: Ø 2 x 8.6 mm
- Active surface, material: PMMA
- Connection: Cable with plug connector, M8x1 jack, 3-pin, 1 m, PUR
- Application: Water detection
- Series G02
- Attachment: Diameter 2.0 mm
- Optical sensor head
- Optical functional principle: One-way light barrier
- Housing material: Stainless steel
- Light type: LED near-infrared for water detection
- Light spot size: Ø 35 mm with 100 mm
- Optical special feature: Light absorption by water
- Range 0...250 mm
- Interface: For switching amplifier
- Beam characteristics: Varied
- Additional features:
- Optical sensor head
- Dimensions: Ø 2 x 8.6 mm
- Attachment: Diameter 2.0 mm
- Connection: Cable with connector, M8x1-|female, 3-pin, 1 m, PUR
- Rated switching distance Sn: 250 mm
- Active surface, material: PMMA
- Switching output: For switching amplifier
- Cable diameter D 1.80 mm
- Cable length 1 m
- Housing material: Stainless steel
- Protection system: IP65
- Ambient temperature -10...55 °C
- Range 0...250 mm
- Series G02
- Shape: Cylinder|straight lens
- Optical functional principle: One-way light barrier
- Type of light: LED near infrared for|water detection
- Light spot size: Ø 35 mm with 100 mm
- Optical special feature: Light absorption by water
- Beam characteristics: Varied
- Wavelength 1550 nm
- LED group according to IEC 62471: Free group
- Jacket material Mechanical characteristics: PUR
- Application: Water detection
- Reference basic device: BAE SA-OH-059-…
- Product type
Optical sensor head
- Type
BOH000J
- Content
1 pc(s)
IP65
- Min. temperature
-10 °C
- Max. temperature
55 °C
- Length
8.60 mm
- Width
8.6 mm
- (Ø)
2 mm
- Dim
(Ø x L) 2 mm x 8.60 mm
- Cable length
1 m
- Depth
8.6 m
- Wavelength
1550 nm
- Enclosure material
Stainless steel
- Connector
Plug
Socket
- Material
Stainless steel
- Material properties
rust-proof
- Transmitter type
LED IR
250 mm
- Switching distance (max.)
250 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416206 BALLUFF BOH000J BOH000J Optical sensor head 1 pc(s) (Ø x L) 2 mm x 8.60 mm
User & Safety Instructions
User & Safety Instructions 3416206 BALLUFF BOH000J BOH000J Optical sensor head 1 pc(s) (Ø x L) 2 mm x 8.60 mm
Description
The Microremote sensors' modular system with innovative sensor elements meets your individual requirements: Various housing designs ensure a particularly high degree of design freedom, precise optoelectronic components ensure a high level of process accuracy in every application. Series=G02, Dimension=Ø 2 x 8.6 mm, interface=for switching amplifier, operational principle=optical sensor head, operational principle optical=one-way light barrier, optical special feature=light absorption by water, radiation characteristic=diverse, light type=infrared for water detection, range=0...250 mm, connection=cable with connector, M8x1 plug, 1.00 m, PUR, casing material=stainless steel, active surface, material=PMMA, certification/conformity=CEWEEE
