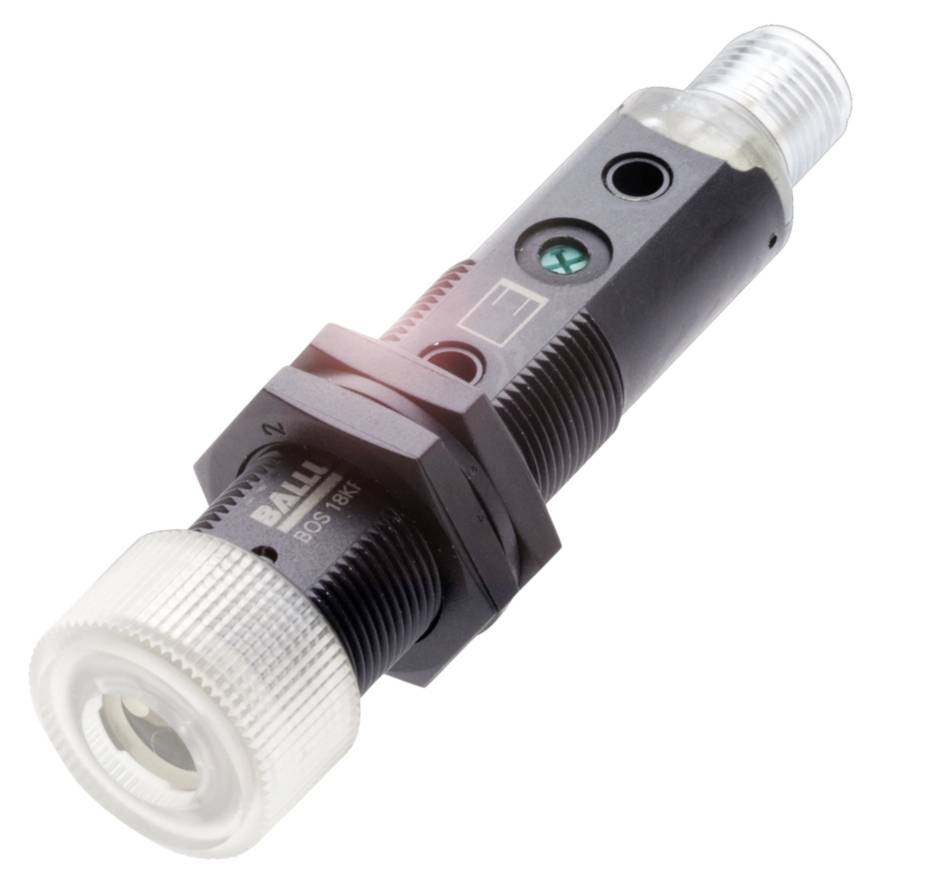

BALLUFF BOS00JJ BOS00JJ FO basis module 1 pc(s) 24 1 PNP (Ø x H) 18 mm x 14.00 mm
EAN:
Part number:
Item no:
Product type
FO basis module
Min. operating voltage
10.0 V
Max. operating voltage
30.0 V
Type
BOS00JJ
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Balluff BOS00JJ fiber base equipment for plastic and glass fibers
- Dimensions: Ø 18 x 87 mm
- Series: 18KF
- PNP NO interface
- PNP NC
- Functional principle: Light-conductor device
- Setting option: Sensitivity (Sn)
Technical specifications
- Main features:Dimensions: Ø 18 x 87 mm
- Connection: Connector, M12x1 connector, 4-pin
- Series: 18KF
- Operating voltage Ub 10...30 VDC
- Setting option: Sensitivity (Sn)
- Functional principle: Light-conductor device
- PBT casing material
- LED red light
- Switching frequency 1000 Hz
- PNP NO interface
- PNP NC
- Additional features:
- Functional principle: Light-conductor device
- Dimensions: Ø 18 x 87 mm
- Attachment: Screw M3|nut M18x1
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 10...30 VDC
- Residual ripple max. (% of Ue): 8%
- Switching frequency 1000 Hz
- Connection: Connector, M12x1 connector, 4-|pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- MTTF (40 °C) 774 a
- Switching output: PNP NO
- PBT casing material
- EN 60068-2-27, shock: Half-sine, 30 gn, 11 ms, 3x6
- EN 60068-2-6, vibration: 10…55 Hz, amplitude 1 mm, 3x30|min.
- Protection class IP67
- Ambient temperature: -25 to 55 °C
- Range: Depends on fiber optic
- Tightening torque max. 1.5 Nm
- Setting option: Sensitivity (Sn)
- Series: 18KF
- Shape: Cylinder flat|Straight optics
- Display: Output function - LED yellow|stability - LED green
- Potentiometer 270°
- Shutdown delay toff max.: 0.5 ms
- ON delay max.: 0.5 ms
- Idle current IO max. at Ue 35 mA
- Voltage drop Ud max. at Ie 2 V
- External light max. 5000 Lux
- Optical functional principle: Depending on fiber optic
- LED red light
- Optical switching function: Light/dark switching|light switching
- Wavelength 660 nm
- Connection of fiber optics: Ø 2.2 mm
- Product type
FO basis module
- Type
BOS00JJ
- Content
1 pc(s)
- Operating voltage
24
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 PNP
- Connection
Connector
IP67
- Min. temperature
-25 °C
- Max. temperature
55 °C
- Length
87.00 mm
- Width
87 mm
- Height
14.00 mm
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 14.00 mm
- Nominal voltage
30.0 V
- Wavelength
660 nm
- Enclosure material
PBT
- Connector
Plug
Plug
- Material
PBT
- Outputs
PNP
- Switching frequency
1000 Hz
- Operating current
100 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416267 BALLUFF BOS00JJ BOS00JJ FO basis module 1 pc(s) 24 1 PNP (Ø x H) 18 mm x 14.00 mm
User & Safety Instructions
User & Safety Instructions 3416267 BALLUFF BOS00JJ BOS00JJ FO basis module 1 pc(s) 24 1 PNP (Ø x H) 18 mm x 14.00 mm
Description
The fiber optic sensors from Balluff are used when a conventional opto sensor is too large or too inflexible for the application. Our fiber optic sensors are optionally combined with a plastic or a glass fiber optics to form a complete sensor. Their various properties give you maximum flexibility depending on your application. Light conductor unit, light transmitter = LED, connection type = connector, switch output = PNP NO; PNP NC (Pins 4-2
