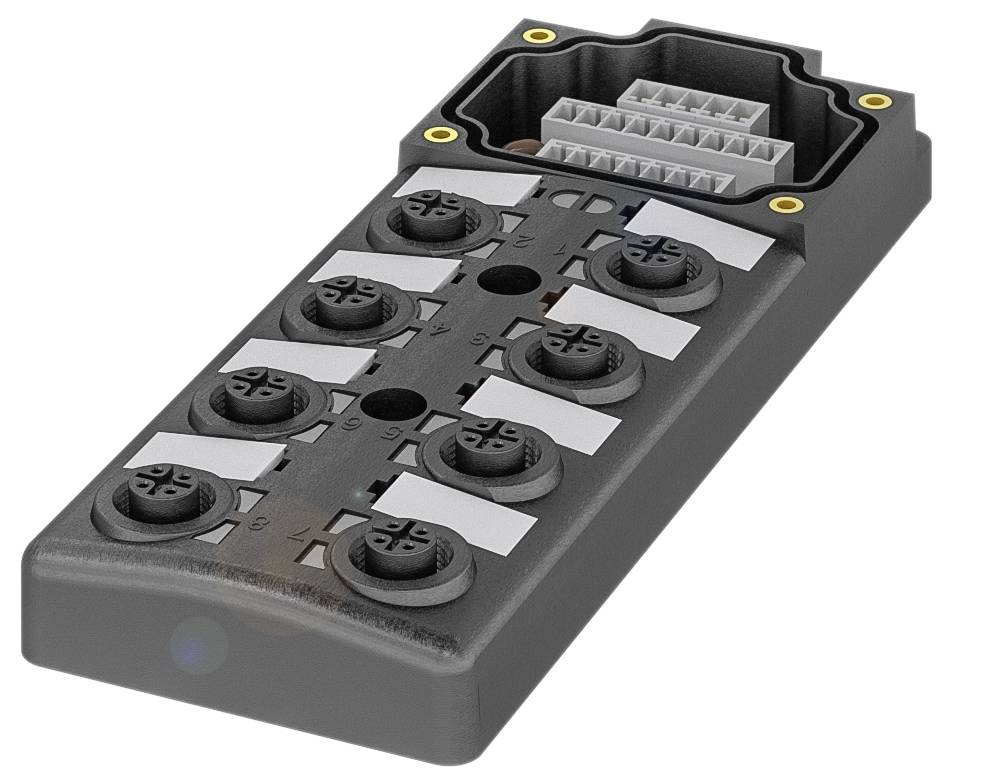

BALLUFF BPI007F Sensor & actuator box (passive) Multi splitter 1 pc(s) Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Sensor & actuator box (passive)
No. of signal spaces
8
No. of splitters
8-way
Type
BPI007F
Datasheet (PDF)
Highlights & Details
Balluff BPI007F Passive Distributor
- Operating voltage display: Green LED (2x)
- Connection (COM 1): Plug-in terminals
- Connection slots: 8x M12x1 socket, 5-pin
- Display of switching function: Yellow LED (16x)
- PNP signal type
Technical specifications
- Main features:Connection (COM 1): Plug-in terminals
- Connection slots: 8x M12x1 socket, 5-pin
- Display of switching function: Yellow LED (16x)
- Output current max. 4 A
- Operating voltage Ub 18...30 VDC
- Operating voltage display: Green LED (2x)
- PNP signal type
- Total current max. 8 A (for 2-way supply);8 A (for 1-way supply)
- Ambient temperature: -25 to 80 °C
- Additional features:
- Included: Identification plates (24x)|closure cap (4x)
- M4 fixings (4x)
- Operating voltage display: Green LED (2x)
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 18...30 VDC
- Tightening torque 1.2 Nm ±0.2 (M4)
- PBT casing material
- EN 60068-2-27, shock 100 g, 6 ms
- EN 60068-2-6, vibration: 10…60 Hz, constant amplitude 2|mm|61…500 Hz, constant|acceleration 15 g.
- Ambient temperature: -25 to 80 °C
- Contact material: Brass
- Display of switching function: Yellow LED (16x)
- Output current max. 4 A
- Insulation resistance ≥ 10 GOhm
- Total current max. 8 A (for 2-way supply)|8 A (for 1-way supply)
- Connection slots: 8x M12x1 socket, 5-pin
- Contact carrier material PA 6.6
- Cable plug tightening torque: 0.6 Nm + 0.1 Nm (M12|Connector)
- Forget: Yes
- Not included in delivery: M4 retaining screw
- Potential separation: +24 V and 0 V for left side|(slots 1, 3) and right side|(slots 2, 4) through|Cable bridge
- Surge voltage resistance: 800 V
- Power consumption per LED 4 mA
- Packaging type
Single
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
8
- Type
BPI007F
- No. of splitters
8-way
- Status indicator
LED
- Signal type
PNP
- Connection
M12 socket
- Max. power rating per slot
4 A
- Total current (direct supply)
8 A
- Max. temperature
80 °C
- Min. temperature
-25 °C
- Connector type (distribution boxes)
M12 socket
- Total no. of pins
5
- Manufacturer part #
BPI007F
- Content
1 pc(s)
- Number of pins
5
- Power rating (total)
8 A
- Power rating per I/O
4 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3423125 BALLUFF BPI007F Sensor & actuator box (passive) Multi splitter 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 3423125 BALLUFF BPI007F Sensor & actuator box (passive) Multi splitter 1 pc(s) Single
Description
Passive distributors from Balluff connect sensors and actuators to the controller. Ideal are suitable for harsh conditions, especially when cooling and lubricating materials are used. Its fully cast housing offers a high degree of protection and excellent shock and vibration resistance.Its design makes these interfaces fit perfectly into all systems and machines, with metallic screw inserts guaranteeing the fit of the connectors.All distributors can be flexibly mounted on all standard profiles and base plates: Their mounting holes are positioned in the center. And the passive interface can also be laterally mounted by additional side fastening holes. The flexible mounting supports easily visible LEDs. Connection slots = 8x M12x1 socket, 5-pin, operating voltage display = LED green (2x), display switching function = LED yellow (16x), signal type = PNP, connection (COM 1 8) = plug-in terminals, operating voltage Ub = 8 1...2 VDC, output current max. = 4 A, total current max. = 18 A (with 30-way feed); Ambient temperature = -25...80 °C
