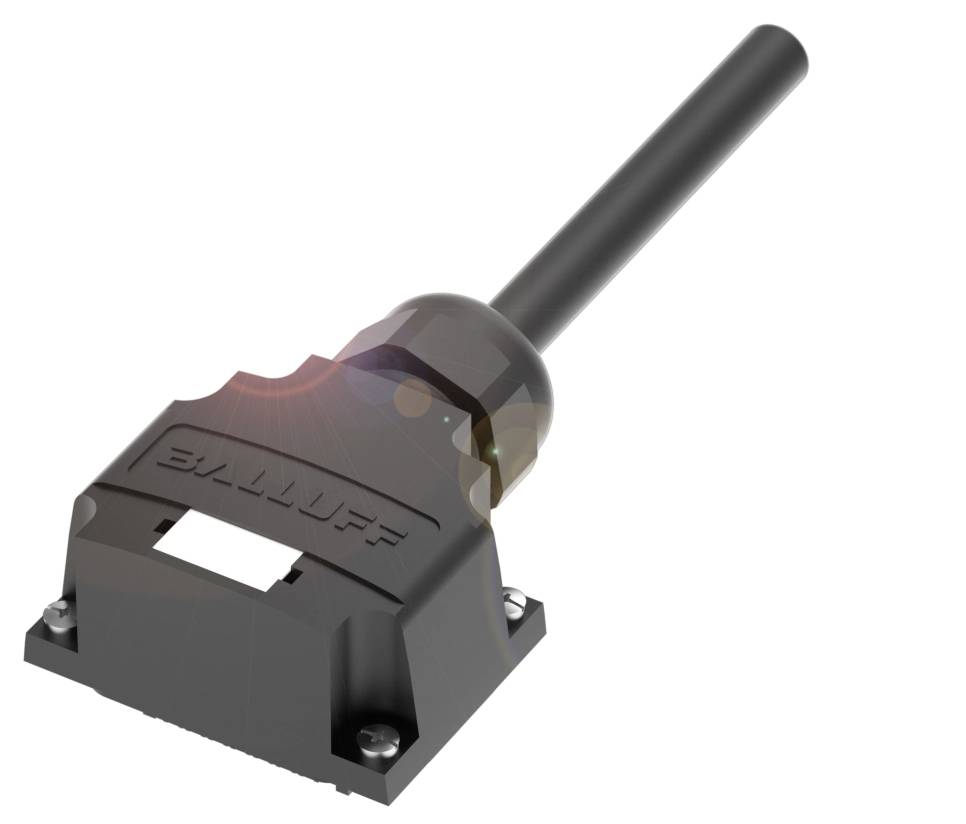

BALLUFF BPI0087 Sensor & actuator box (passive) Multi splitter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor & actuator box (passive)
Type
BPI0087
Status indicator
LED
IP rating
IP67
Max. power rating per slot
2 A
Datasheet (PDF)
Highlights & Details
Balluff BPI0087 Passive Distributor
- Cable: PUR black, 25 m, suitable for drag chains
- Connection (COM 1): Screw/plug terminals
- Output current max. 2 A
- Total current max. 8 A
- Protection class IP67
Technical specifications
- Main features:Connection (COM 1): Screw / plug terminals
- Output current max. 2 A
- Cable: PUR black, 25 m, suitable for drag chains
- Protection class IP67
- Total current max. 8 A
- Additional features:
- Cable diameter D:9.70 mm ±0.3 mm
- Number of conductors: 19
- Wire cross-section: 0.34 mm² + 1.0 mm²
- Output current max. 2 A
- Total current max. 8 A
- Cable: PUR black, 25 m,|suitable for drag chain
- Cable, bending radius min., fixed laying: 7.5 x D
- Cable, minimum bending radius, flexible laying 15 x D
- Cable, bending cycles min.: 2 MIO.
- Product type
Sensor & actuator box (passive)
- Type
BPI0087
- Status indicator
LED
IP67
- Max. power rating per slot
2 A
- Total current (direct supply)
8 A
- Connector type (distribution boxes)
M12 socket
- Manufacturer part #
BPI0087
- Content
1 pc(s)
- Power rating (total)
8 A
- Power rating per I/O
2 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3423133 BALLUFF BPI0087 Sensor & actuator box (passive) Multi splitter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3423133 BALLUFF BPI0087 Sensor & actuator box (passive) Multi splitter 1 pc(s)
Description
Passive distributors from Balluff connect sensors and actuators to the controller. Ideal are suitable for harsh conditions, especially when cooling and lubricating materials are used. Its fully cast housing offers a high degree of protection and excellent shock and vibration resistance.Its design makes these interfaces fit perfectly into all systems and machines, with metallic screw inserts guaranteeing the fit of the connectors.All distributors can be flexibly mounted on all standard profiles and base plates: Their mounting holes are positioned in the center. And the passive interface can also be laterally mounted by additional side fastening holes. The flexible mounting supports easily visible LEDs. Connection (COM 1) = screw/plug-in terminals, cable = PUR black, 25 m, suitable for drag chains, output current max. = 2 A, total current max. = 8 A, protection class = IP67
