BALLUFF BTL107H Magnetic field detector 1 pc(s) 24 Max. range (open field): 500 m
EAN:
Part number:
Item no:
Product type
Magnetic field detector
Min. operating voltage
10.0 V
Max. operating voltage
30.0 V
Max. range
500 m
Type
BTL107H
Datasheet (PDF)
Highlights & Details

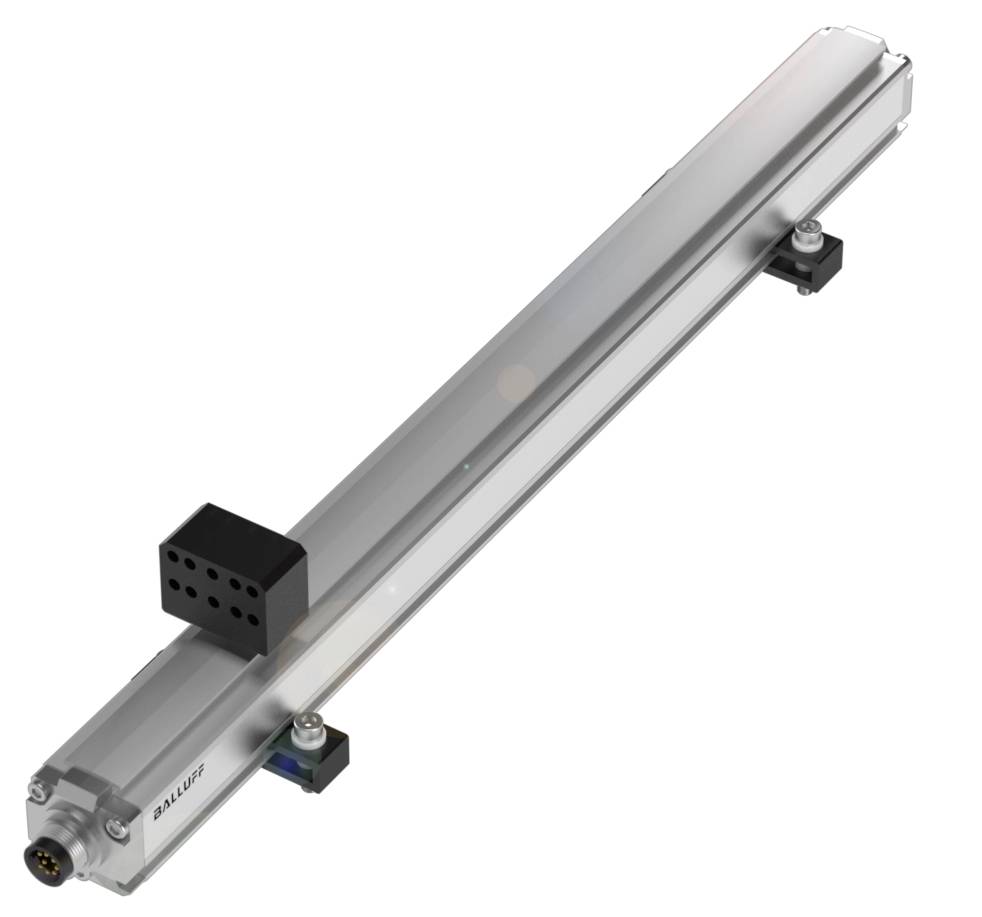

Balluff BTL107H Magnetic position measuring systems in profile design
- Connector: Plug connector M16x0.75, 8-pin
- Mounting: Fixing clips
- Housing material: Aluminium, anodized
- Shape: Profile series
- Position sensor, number max.: 2
Technical specifications
- Main features:Analogue output: Analogue, voltage 0...10 V.
- Analogue, voltage 10...0 V
- Connector: Plug connector M16x0.75, 8-pin
- Mounting: Fixing clips
- Operating voltage Ub 10...30 VDC
- Shape: Profile series
- Housing material: Aluminium, anodized
- Linearity deviation max.: ±50 µm
- Measurement range 500 mm
- Measuring frequency max. 2000 Hz
- Position sensor, number max.: 2
- Protection class IP67
- Ambient temperature -40...75 °C
- Repeatability ± 10 µm
- Additional features:
- Mounting: Fixing clips
- Operating voltage Ub 10...30 VDC
- Connector: Plug connector M16x0.75, 8-pin
- Short circuit protection: Against GND and to 36 V DC
- Reverse polarity protection Ub up to 36 V.
- MTTF (40 °C) 72 a
- Housing material: Aluminium, anodized
- EN 60068-2-27, shock 150 g, 6 ms
- EN 60068-2-6, vibration 20 g, 10…2000 Hz
- Protection class IP67, with connector
- Ambient temperature -40...75 °C
- Housing material, surface protection: Anodised
- Output current max. 5 mA
- Storage temperature: -40...100 °C
- Cover material: Aluminium, die-cast, nickel-plated
- Repeatability ± 10 µm
- Linearity deviation max.: ±50 µm
- Analogue output: Analogue, voltage 0…10 V|analogue, voltage 10…0 V
- Deviation from basic type: Shorter length
- Current consumption max. 150 mA at 24 V DC
- Relative humidity: ≤ 90%, non-condensing
- BASE TYPE: BTL7-A501-M….-P-S…
- Position sensor, number (factory setting): 1
- Position sensor, number max.: 2
- Output signal can be set: With the software tool
- Peak switch-on current ≤ 500 mA/10 ms
- Switch-on delay max. 600 ms
- Error signal Va falling: -0.5 V.
- Error signal Ua rising: 10.5 V
- Potential separation: No.
- Voltage-resistant to (GND housing): 500 V AC
- Overvoltage protection Ub to 36 V.
- Connection, design: Axial
- Measuring frequency max. 2000 Hz
- Measuring length 500 mm
- Length 605 mm
- Zero point 72.0 mm
- EN 55016-2-3, radiation: Industrial and home
- EN 60068-2-27, continuous shock 150 g, 2 ms
- EN 61000-4-2, ESD:Sharpness degree 3
- EN 61000-4-3, RFI:sharpness 3
- EN 61000-4-4, Burst: Strength 3
- EN 61000-4-5, Surge:Sharpness level 2
- EN 61000-4-6, high frequency fields: Degree of sharpness 3
- EN 61000-4-8, magnetic fields: Degree of sharpness 4
- Temperature coefficient typ.: ≤ 30 ppm/K at 50% of|nominal length 500mm
- Product type
Magnetic field detector
- Type
BTL107H
- Content
1 pc(s)
- Operating voltage
24
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
500 m
- Connector
Plug
- Cable length
0.3 m
IP67
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Length
24 mm
- Height
2.9 mm
- Thread type connection side
M16
- Manufacturer part #
BTL107H
- Jacket material
TPE
- Nominal voltage
30.0 V
- No. of pins
8
- Max. power rating per slot
5 mA
- Enclosure material
Aluminium (anodized)
- Material
Aluminium (anodized)
- Mounting type
Clip
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416161 BALLUFF BTL107H Magnetic field detector 1 pc(s) 24 Max. range (open field): 500 m
User & Safety Instructions
User & Safety Instructions 3416161 BALLUFF BTL107H Magnetic field detector 1 pc(s) 24 Max. range (open field): 500 m
Description
Position measuring systems in profile design are non-contact and absolutely measuring systems for the precise recording of one or more positions. They are convincing in harsh environments, such as presses, injection molding machines or portal robots, as they are made of a hermetically sealed IP67 aluminum housing. The magnets of the position sensor act on the measuring element through the wall of the profile. Form=series profile, fixing=mounting clamps, casing material=aluminum, position sensor, number max.=2, Connection=plug connector, M16x0.75, 8-pin, analogue output=analogue, voltage 0.10 V analogue, voltage 10.0 V, measuring range=500 mm, measuring frequency max.=2000 Hz, linearity deviation max.=±50 µm, Repeat accuracy=± 10 µm, operating voltage Ub=10...30 VDC, ambient temperature=-40...85 °C, protection class=IP67, approval/conformity=CecULusEACWEEE
