BALLUFF Capacitive sensor Capacitive BCS000W BCS000W M30 non-shielded (Ø x H) 30 mm x 99 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
250.0 V
Model
Capacitive
Connector
Cable
(Ø)
30 mm
Datasheet (PDF)
Highlights & Details

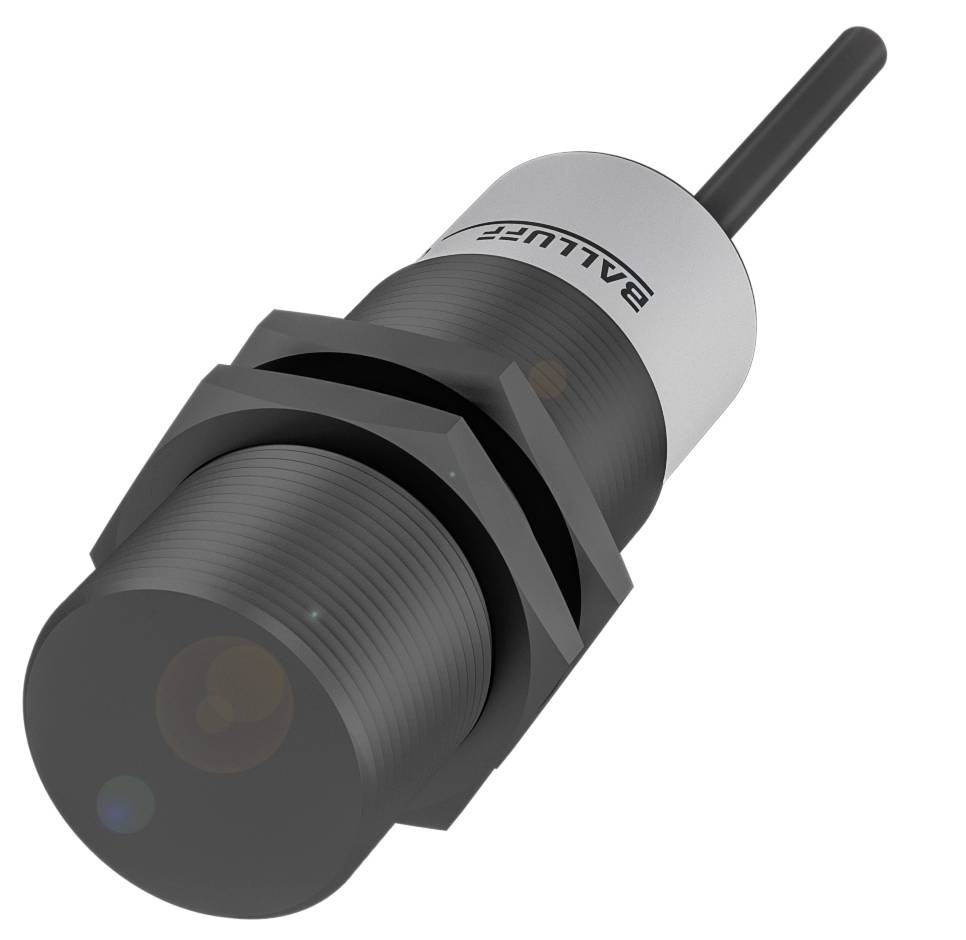

Balluff BCS000W Cylindrical version with M30 thread
- Connection: Cable, 2.00 m, PVC
- Dimensions: Ø 30 x 81 mm
- Fitting: Non-shielded
- Switch output: Normally open contact (NO)
- Series M30
Technical specifications
- Main features:Dimensions: Ø 30 x 81 mm
- Active surface, material: PBT
- Connection: Cable, 2.00 m, PVC
- Series M30
- Operating voltage Ub 20...250 VDC/20...250 VAC
- Fitting: Non-shielded
- PBT casing material
- Range 0...12.1 mm
- Switch output: Normally open contact (NO)
- Switching frequency 40 Hz
- Protection system: IP65
- Sensitivity: Adjustable switching distance
- Ambient temperature: -25 to 70 °C
- Additional features:
- Included in delivery: Screw driver|nut M30x1.5 (2x)
- Dimensions: Ø 30 x 81 mm
- Function display: Yes
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Operating voltage Ub 20...250 VDC/20...250 VAC
- Usage category: AC-140|DC-13
- Switching frequency 40 Hz
- Protection class: II
- Static voltage drop: 8 V
- Short-circuit protection: No.
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 15 mm
- Real switching distance Sr:15 mm
- Real switching distance Sr, tolerance: ±10 %
- MTTF (40 °C) 489 a
- Active surface, material: PBT
- Size M30x1.5
- Switch output: Normally open contact (NO)
- Cable diameter D 5.10 mm
- Cable length 2 m
- PBT casing material
- Jacket material PVC
- Protection system: IP65
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 2
- Conductor cross-section: 0.50 mm²
- Series M30
- Sensitivity: Adjustable switching distance
- Measurement range 0...12.1 mm
- Temperature drift max. of final value: ±15.0 %
- Mounted interface: Not flush
- Rated operating voltage Ue AC 110 V
- Rated operating current Ie AC:200 mA
- Recommended K protection device: Miniature fuse according to|IEC60127-2 Sheet 1, ≤ 2 A (quick-acting).
- Residual current l max. at 110 V DC: 1.7 mA
- Residual current l max. at 24 V DC: 1.5 mA
- Residual current lr max. at 250 V AC: 2.5 mA
- Switching frequency (AC) 25 Hz
- Product type
Capacitive sensor
- Type
BCS000W
- Min. operating voltage
20.0 V
- Max. operating voltage
250.0 V
- Operating voltage
20.0 - 250.0 V
- Cable length
2.00 m
- Switching frequency
40 Hz
- Model
Capacitive
- Connector
Cable
- Installation type
non-shielded
- Size
M30
- Material properties
rust-proof
- Enclosure material
PBT
- Contact type
1 maker
IP65
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
81.00 mm
- Width
81 mm
- Height
99 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 99 m
- Jacket material
PVC
- Nominal voltage
250.0 V
- Operating current
200 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417232 BALLUFF Capacitive sensor Capacitive BCS000W BCS000W M30 non-shielded (Ø x H) 30 mm x 99 m
User & Safety Instructions
User & Safety Instructions 3417232 BALLUFF Capacitive sensor Capacitive BCS000W BCS000W M30 non-shielded (Ø x H) 30 mm x 99 m
Description
We carry capacitive sensors especially for high technical requirements as well as high temperatures and pressures. As capacitive adhesive sensors, they adapt particularly easily and flexibly to the surface to be attached. Its stainless steel and Teflon housing makes it Ideal for use in difficult environments. They have a wide operating voltage and are available in particularly small designs. Dimension=Ø 30 x 99 mm, series=M30, thread (A)=M30x1.5, install=not flush, connection=cable, 2.00 m, PVC, switching output = NO, switching frequency = 100 Hz, range = 0...12.1 mm, Sensitivity = adjustable switching distance, housing material = PBT, active surface, material = PBT, ambient temperature = 25...70 °C, Operating voltage Ub=20...250 VDC/20...250 VAC, approval/conformity=CEWEEE, protection class=IP65
