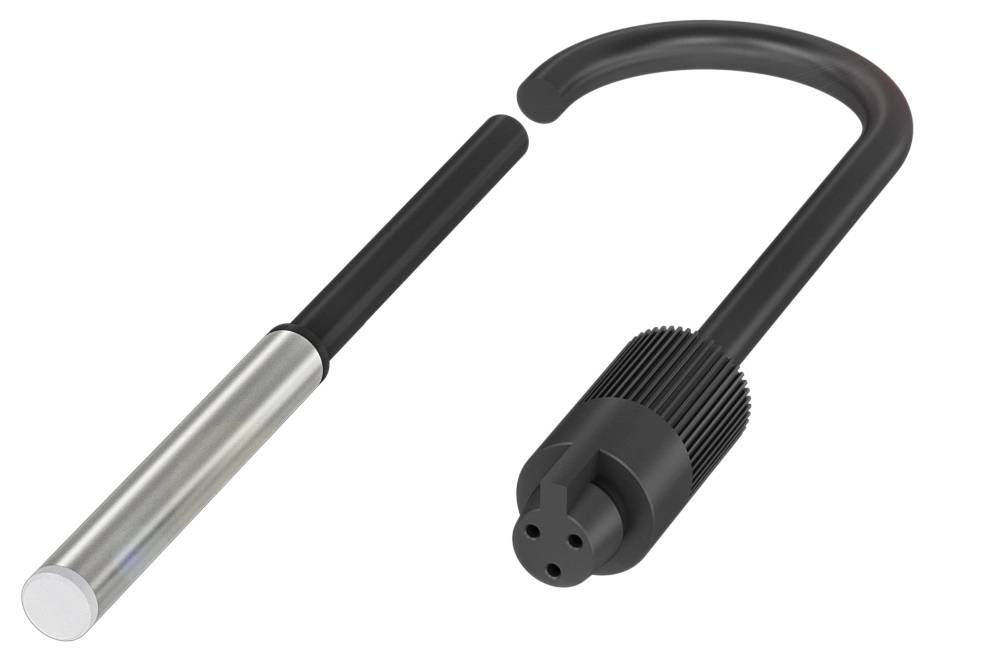

Image similar
BALLUFF Capacitive sensor Capacitive BCS0010 BCS0010 shielded (Ø x L) 4 mm x 29.00 mm
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
8.0 V
Model
Capacitive
Connector
Socket
Length
29.00 mm
Datasheet (PDF)
Highlights & Details
Balluff BCS0010 Cylindrical compact design without thread
- Connection: Cable with plug connector, snap-in IP40, Binder 719-socket, 2.00 m, PUR
- Dimensions: Ø 4 x 29 mm
- Flush mounting: Flush mounting
- G04 series
- Interface: Special interface
Technical specifications
- Main features:Dimensions: Ø 4 x 29 mm
- Active surface, material: PTFE
- Connection: Cable with plug connector, snap-in IP40, Binder 719-socket, 2.00 m, PUR
- G04 series
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4301)
- Range 0.1...1 mm
- Interface: Special interface
- Protection class IP67
- Sensitivity: Adjustable on the basis device
- Ambient temperature -10...70 °C
- Additional features:
- Dimensions: Ø 4 x 29 mm
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 4...8 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Snap-In IP40, Binder 719 socket
- Short circuit protection: Not relevant
- Reverse polarity protection: Not relevant
- Hysteresis H max. (% of Sr): 20.0%
- Rated switching distance Sn: 1 mm
- Temperature drift max. (% of Sr): 20%
- Repeatability max. (% of Sr): 2%
- MTTF (40 °C) 1813 a
- Active surface, material: PTFE
- Size D4.0
- Flush mounting: Flush mounting
- Cable length 2 m
- Housing material: Stainless steel (1.4301)
- Sheath material: PUR
- Protection class IP67
- Ambient temperature -10...70 °C
- Pollution level 1
- G04 series
- Sensitivity: Adjustable on the basis device
- Measurement range 0.1...1 mm
- Cover material POM
- Interface: Special interface
- Product type
Capacitive sensor
- Type
BCS0010
- Min. operating voltage
4.0 V
- Max. operating voltage
8.0 V
- Operating voltage
4.0 - 8.0 V
- Enclosure material
Stainless steel
- Model
Capacitive
- Material properties
rust-proof
- Installation type
shielded
- Connector
Socket
- Cable length
2.00 m
- Min. temperature
-10 °C
- Max. temperature
70 °C
IP67
- Length
29.00 mm
- Width
29 mm
- (Ø)
4 mm
- Dim
(Ø x L) 4 mm x 29.00 mm
- Content
1 pc(s)
- Nominal voltage
8.0 V
- Jacket material
PUR
- Switching frequency
100 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417285 BALLUFF Capacitive sensor Capacitive BCS0010 BCS0010 shielded (Ø x L) 4 mm x 29.00 mm
User & Safety Instructions
User & Safety Instructions 3417285 BALLUFF Capacitive sensor Capacitive BCS0010 BCS0010 shielded (Ø x L) 4 mm x 29.00 mm
Description
Our capacitive sensor heads are used where a sensor with integrated electronics would not function optimally due to its surroundings. For example at very extreme temperatures or under the highest pressure. The compact design makes them ideal for use in confined spaces. The sensor heads are operated via a separate amplifier. Dimension=Ø 4 x 29 mm, series=G04, installation=flush, connection=cable with plug connector, special plug-special plug, 2.00 m, PUR, interface=special interface, range=0.1...1 mm, sensitivity=adjustable at the basis device, Housing material=stainless steel (1.4301), active surface, material=PTFE, ambient temperature=-30...80 °C, approval/conformity=CecULusWEEE, Protection class=IP67
