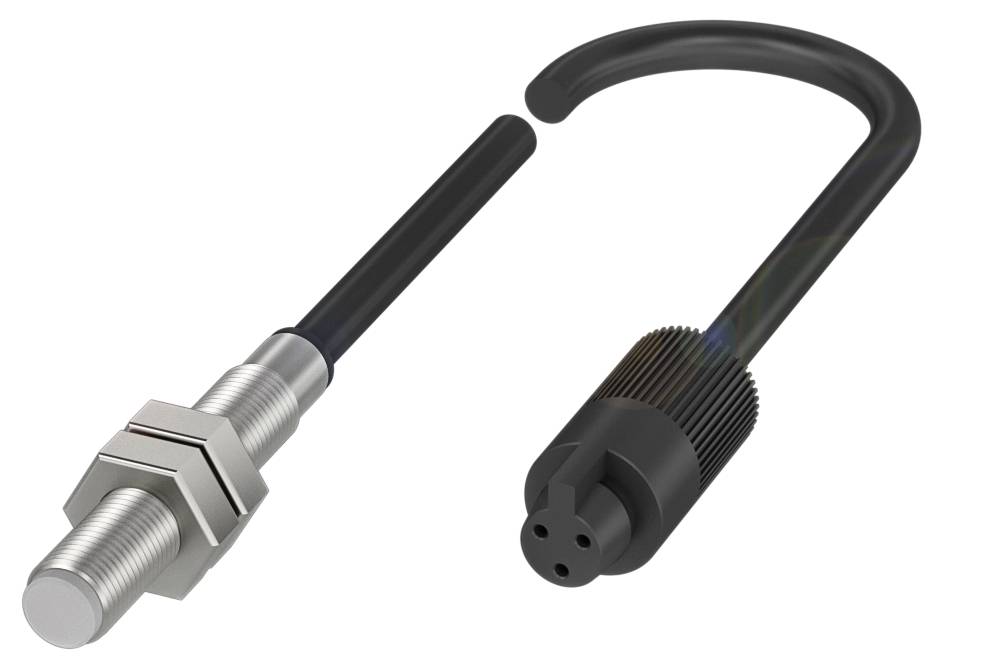

BALLUFF Capacitive sensor Capacitive BCS0011 BCS0011 M5 shielded (Ø x L) 5 mm x 29.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Capacitive sensor
Max. operating voltage
8.0 V
Model
Capacitive
Connector
M5
Datasheet (PDF)
Highlights & Details
Balluff BCS0011 Metric compact design for external signal amplifiers
- Connection: Cable with plug connector, snap-in IP40, Binder 719-socket, 2.00 m, PUR
- Dimensions: Ø 5 x 29 mm
- Flush mounting: Flush mounting
- Series M05
- Thread (A) M5x0.5
Technical specifications
- Main features:Dimensions: Ø 5 x 29 mm
- Active surface, material: PTFE
- Connection: Cable with plug connector, snap-in IP40, Binder 719-socket, 2.00 m, PUR
- Series M05
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4301)
- Thread (A) M5x0.5
- Range 0.1...1 mm
- Interface: Special interface
- Protection class IP67
- Sensitivity: Adjustable on the basis device
- Ambient temperature -10...70 °C
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 5 x 29 mm
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 4...8 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Snap-In IP40, Binder 719 socket
- Short circuit protection: Not relevant
- Reverse polarity protection: Not relevant
- Hysteresis H max. (% of Sr): 20.0%
- Rated switching distance Sn: 1 mm
- Temperature drift max. (% of Sr): 20%
- Repeatability max. (% of Sr): 2%
- MTTF (40 °C) 1813 a
- Active surface, material: PTFE
- Tightening torque 2 Nm
- Size M5x0.5
- Flush mounting: Flush mounting
- Cable length 2 m
- Housing material: Stainless steel (1.4301)
- Sheath material: PUR
- Protection class IP67
- Ambient temperature -10...70 °C
- Pollution level 1
- Series M05
- Sensitivity: Adjustable on the basis device
- Measurement range 0.1...1 mm
- Cover material POM
- Thread (A) M5x0.5
- Interface: Special interface
- Packaging type
Piece
- Product type
Capacitive sensor
- Type
BCS0011
- Min. operating voltage
4.0 V
- Max. operating voltage
8.0 V
- Operating voltage
4.0 - 8.0 V
- Enclosure material
Stainless steel
- Model
Capacitive
- Material properties
rust-proof
- Installation type
shielded
- Size
M5
- Connector
M5
- Cable length
2.00 m
- Features
Incl. ampilifer
- Min. temperature
-10 °C
- Max. temperature
70 °C
IP67
- Length
29.00 mm
- Width
29 mm
- (Ø)
5 mm
- Dim
(Ø x L) 5 mm x 29.00 mm
- Content
1 pc(s)
- Nominal voltage
8.0 V
- Jacket material
PUR
- Switching frequency
100 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417223 BALLUFF Capacitive sensor Capacitive BCS0011 BCS0011 M5 shielded (Ø x L) 5 mm x 29.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3417223 BALLUFF Capacitive sensor Capacitive BCS0011 BCS0011 M5 shielded (Ø x L) 5 mm x 29.00 mm Piece
Description
Our capacitive sensor heads are used where a sensor with integrated electronics would not function optimally due to its surroundings. For example at very extreme temperatures or under the highest pressure. The compact design makes them ideal for use in confined spaces. The sensor heads are operated via a separate amplifier. Dimension=Ø 5 x 29 mm, series=M05, thread (A)=M5x0.5, installation=flush, connection=cable with connector, Special plug special plug, 2.00 m, PUR, interface=special interface, range=0.1...1 mm, Sensitivity=adjustable on the basic device, housing material=stainless steel (1.4301), active surface, material=PTFE, ambient temperature=-30...80 °C, Approval/conformity=CecULusWEEE, protection class=IP67
