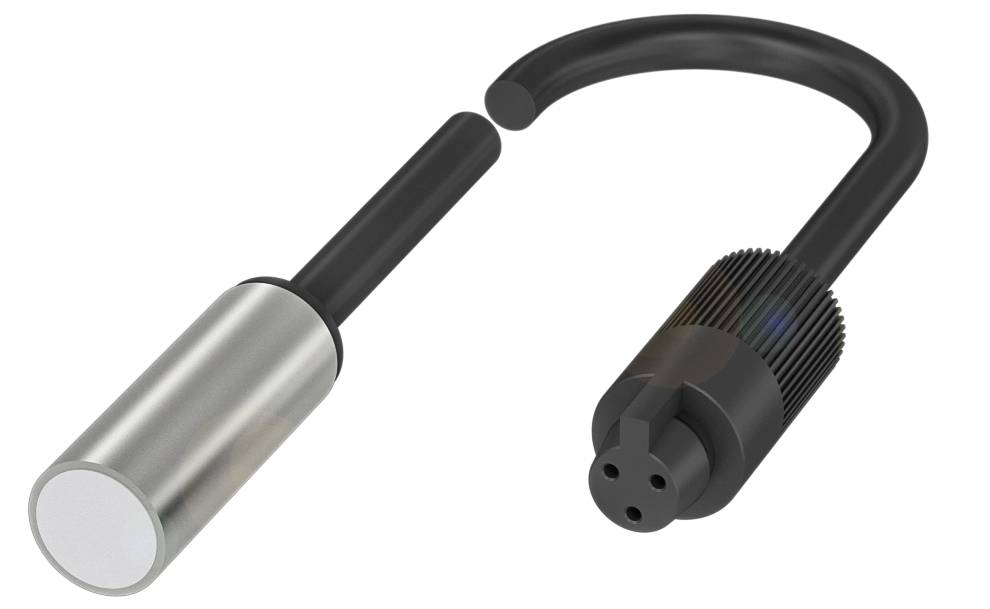

BALLUFF Capacitive sensor Capacitive BCS0012 BCS0012 6.5 mm shielded (Ø x H) 6.5 mm x 18 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
8.0 V
Model
Capacitive
Connector
Plug
Length
18.00 mm
Datasheet (PDF)
Highlights & Details
Balluff BCS0012 Cylindrical compact design without thread
- Connection: Cable with plug connector, special plug adapter, 2.00 m, PUR
- Dimensions: Ø 6.5 x 18 mm
- Flush mounting: Flush mounting
- Series G06
- Interface: Special interface
Technical specifications
- Main features:Dimensions: Ø 6.5 x 18 mm
- Active surface, material: PTFE
- Connection: Cable with plug connector, special plug adapter, 2.00 m, PUR
- Series G06
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4301)
- Range 0.1...1.5 mm
- Interface: Special interface
- Protection class IP67
- Sensitivity: Adjustable on the basis device
- Ambient temperature -30...80 °C
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 6.5 x 18 mm
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 4...8 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Connection: Special plug
- Short circuit protection: Not relevant
- Reverse polarity protection: Not relevant
- Hysteresis H max. (% of Sr): 10.0%
- Rated switching distance Sn: 1.5 mm
- Temperature drift max. (% of Sr): 20%
- Repeatability max. (% of Sr): 2%
- MTTF (40 °C) 1813 a
- Active surface, material: PTFE
- Size D6.5
- Flush mounting: Flush mounting
- Cable length 2 m
- Housing material: Stainless steel (1.4301)
- Sheath material: PUR
- Protection class IP67
- Ambient temperature -30...80 °C
- Series G06
- Sensitivity: Adjustable on the basis device
- Measurement range 0.1...1.5 mm
- Cover material POM
- Interface: Special interface
- Product type
Capacitive sensor
- Type
BCS0012
- Min. operating voltage
4.0 V
- Max. operating voltage
8.0 V
- Operating voltage
4.0 - 8.0 V
- Enclosure material
Stainless steel
- Model
Capacitive
- Installation type
shielded
- Size
6.5 mm
- Connector
Plug
- Cable length
2.00 m
- Min. temperature
-30 °C
- Max. temperature
80 °C
IP67
- Length
18.00 mm
- Width
18 mm
- Height
18 m
- (Ø)
6.5 mm
- Dim
(Ø x H) 6.5 mm x 18 m
- Content
1 pc(s)
- Nominal voltage
8.0 V
- Jacket material
PUR
- Switching frequency
100 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417311 BALLUFF Capacitive sensor Capacitive BCS0012 BCS0012 6.5 mm shielded (Ø x H) 6.5 mm x 18 m
User & Safety Instructions
User & Safety Instructions 3417311 BALLUFF Capacitive sensor Capacitive BCS0012 BCS0012 6.5 mm shielded (Ø x H) 6.5 mm x 18 m
Description
Our capacitive sensor heads are used where a sensor with integrated electronics would not function optimally due to its surroundings. For example at very extreme temperatures or under the highest pressure. The compact design makes them ideal for use in confined spaces. The sensor heads are operated via a separate amplifier. Dimensions = Ø 6.5 x 18 mm, series = G06, installation = flush, connection = cable with plug connector, special plug-in plug, 2.00 m, PUR, interface=special interface, range=0.1...1.5 mm, sensitivity=adjustable at the basis device, Housing material=stainless steel (1.4301), active surface, material=PTFE, ambient temperature=-30...80 °C, approval/conformity=CecULusWEEE, Protection class=IP67
