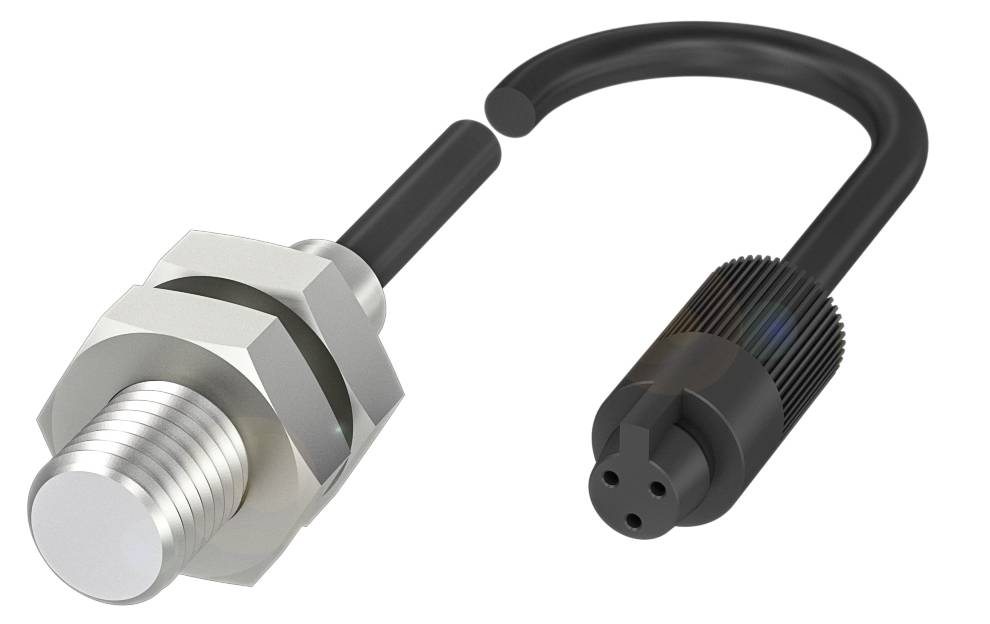

BALLUFF Capacitive sensor Capacitive BCS0014 BCS0014 M8 shielded (Ø x H) 8 mm x 25 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
8.0 V
Model
Capacitive
Connector
M8
Length
25.00 mm
Datasheet (PDF)
Highlights & Details
Balluff BCS0014 Metric compact design for external signal amplifiers
- Connection: Cable with plug connector, special plug adapter, 2.00 m, PUR
- Dimensions: Ø 8 x 25 mm
- Flush mounting: Flush mounting
- M08 series
- Thread (A) M8x1
Technical specifications
- Main features:Dimensions: Ø 8 x 25 mm
- Active surface, material: PTFE
- Connection: Cable with plug connector, special plug adapter, 2.00 m, PUR
- M08 series
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4301)
- Thread (A) M8x1
- Range 0.1...1.5 mm
- Interface: Special interface
- Protection class IP67
- Sensitivity: Adjustable on the basis device
- Ambient temperature -30...80 °C
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 8 x 25 mm
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 4...8 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Connection: Special plug
- Short circuit protection: Not relevant
- Reverse polarity protection: Not relevant
- Hysteresis H max. (% of Sr): 10.0%
- Rated switching distance Sn: 1.5 mm
- Temperature drift max. (% of Sr): 20%
- Repeatability max. (% of Sr): 2%
- MTTF (40 °C) 1813 a
- Active surface, material: PTFE
- Tightening torque 6 Nm
- Size M8x1
- Flush mounting: Flush mounting
- Cable length 2 m
- Housing material: Stainless steel (1.4301)
- Sheath material: PUR
- Protection class IP67
- Ambient temperature -30...80 °C
- M08 series
- Sensitivity: Adjustable on the basis device
- Measurement range 0.1...1.5 mm
- Cover material POM
- Thread (A) M8x1
- Interface: Special interface
- Product type
Capacitive sensor
- Type
BCS0014
- Min. operating voltage
4.0 V
- Max. operating voltage
8.0 V
- Operating voltage
4.0 - 8.0 V
- Enclosure material
Stainless steel
- Model
Capacitive
- Installation type
shielded
- Size
M8
- Connector
M8
- Cable length
2.00 m
- Min. temperature
-30 °C
- Max. temperature
80 °C
IP67
- Length
25.00 mm
- Width
25 mm
- Height
25 m
- (Ø)
8 mm
- Dim
(Ø x H) 8 mm x 25 m
- Content
1 pc(s)
- Nominal voltage
8.0 V
- Jacket material
PUR
- Switching frequency
100 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417271 BALLUFF Capacitive sensor Capacitive BCS0014 BCS0014 M8 shielded (Ø x H) 8 mm x 25 m
User & Safety Instructions
User & Safety Instructions 3417271 BALLUFF Capacitive sensor Capacitive BCS0014 BCS0014 M8 shielded (Ø x H) 8 mm x 25 m
Description
Our capacitive sensor heads are used where a sensor with integrated electronics would not function optimally due to its surroundings. For example at very extreme temperatures or under the highest pressure. The compact design makes them ideal for use in confined spaces. The sensor heads are operated via a separate amplifier. Dimensions=Ø 8 x 25 mm, series=M08, thread (A)=M8x1, mounting=flush, connection=cable with connector, Special plug special plug, 2.00 m, PUR, interface=special interface, range=0.1...1.5 mm, Sensitivity=adjustable on the basic device, housing material=stainless steel (1.4301), active surface, material=PTFE, ambient temperature=-30...80 °C, Approval/conformity=CecULusWEEE, protection class=IP67
