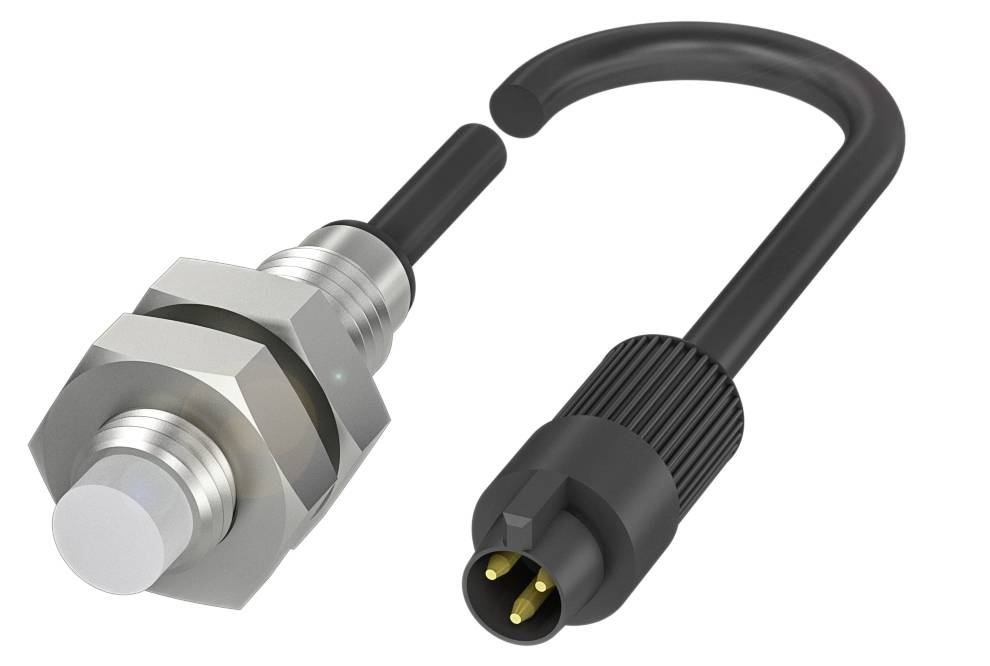

Image similar
BALLUFF Capacitive sensor Capacitive BCS0015 BCS0015 non-shielded (Ø x H) 8 mm x 28 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
8.0 V
Model
Capacitive
Connector
M8
(Ø)
8 mm
Datasheet (PDF)
Highlights & Details
Balluff BCS0015 Metric compact design for external signal amplifiers
- Connection: Cable with plug connector, special plug adapter, 2.00 m, PUR
- Dimensions: Ø 8 x 28 mm
- Fitting: Non-shielded
- M08 series
- Thread (A) M8x1
Technical specifications
- Main features:Dimensions: Ø 8 x 28 mm
- Active surface, material: PTFE
- Connection: Cable with plug connector, special plug adapter, 2.00 m, PUR
- M08 series
- Fitting: Non-shielded
- Housing material: Stainless steel (1.4301)
- Thread (A) M8x1
- Range 0.1...3 mm
- Interface: Special interface
- Protection class IP67
- Sensitivity: Adjustable on the basis device
- Ambient temperature -30...80 °C
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 8 x 28 mm
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 4...8 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Connection: Special plug
- Short circuit protection: Not relevant
- Reverse polarity protection: Not relevant
- Hysteresis H max. (% of Sr): 10.0%
- Rated switching distance Sn: 3 mm
- Temperature drift max. (% of Sr): 20%
- Repeatability max. (% of Sr): 2%
- MTTF (40 °C) 1813 a
- Active surface, material: PTFE
- Tightening torque 6 Nm
- Size M8x1
- Fitting: Non-shielded
- Cable length 2 m
- Housing material: Stainless steel (1.4301)
- Sheath material: PUR
- Protection class IP67
- Ambient temperature -30...80 °C
- M08 series
- Sensitivity: Adjustable on the basis device
- Measurement range 0.1...3 mm
- Cover material POM
- Thread (A) M8x1
- Interface: Special interface
- Product type
Capacitive sensor
- Type
BCS0015
- Min. operating voltage
4.0 V
- Max. operating voltage
8.0 V
- Operating voltage
4.0 - 8.0 V
- Cable length
2.00 m
- Switching frequency
100 Hz
- Model
Capacitive
- Connector
M8
- Installation type
non-shielded
- Enclosure material
Stainless steel
IP67
- Min. temperature
-30 °C
- Max. temperature
80 °C
- Length
28.00 mm
- Width
28 mm
- Height
28 m
- (Ø)
8 mm
- Dim
(Ø x H) 8 mm x 28 m
- Jacket material
PUR
- Nominal voltage
8.0 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417249 BALLUFF Capacitive sensor Capacitive BCS0015 BCS0015 non-shielded (Ø x H) 8 mm x 28 m
User & Safety Instructions
User & Safety Instructions 3417249 BALLUFF Capacitive sensor Capacitive BCS0015 BCS0015 non-shielded (Ø x H) 8 mm x 28 m
Description
Our capacitive sensor heads are used where a sensor with integrated electronics would not function optimally due to its surroundings. For example at very extreme temperatures or under the highest pressure. The compact design makes them ideal for use in confined spaces. The sensor heads are operated via a separate amplifier. Dimensions=Ø 8 x 28 mm, series=M08, thread (A)=M8x1, mounting=not flush, connection=cable with connector, Special plug special plug, 2.00 m, PUR, interface=special interface, range=0.1...3 mm, Sensitivity=adjustable on the basic device, housing material=stainless steel (1.4301), active surface, material=PTFE, ambient temperature=-30...80 °C, Approval/conformity=CecULusWEEE, protection class=IP67
