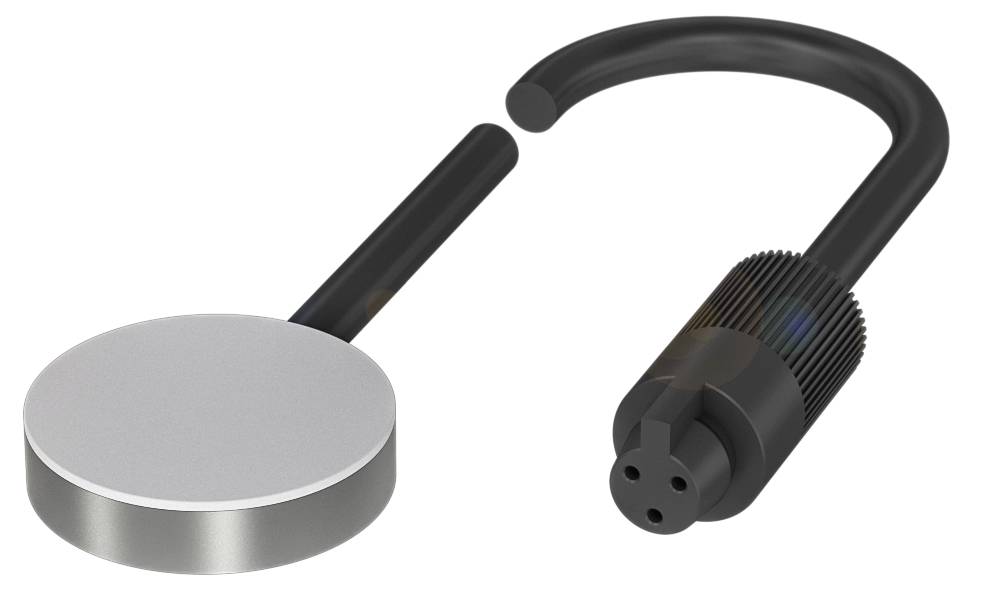

BALLUFF Capacitive sensor Capacitive BCS001C BCS001C shielded (Ø x L) 18 mm x 4.00 mm
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
8.0 V
Model
Capacitive
Connector
Plug
(Ø)
18 mm
Datasheet (PDF)
Highlights & Details
BCS001C Easy to mount disc design for external signal amplifiers
- Connection: Cable with plug connector, special plug adapter, 2.00 m, PUR
- Dimensions: Ø 18 x 4 mm
- Flush mounting: Flush mounting
- Series D18
- Interface: Special interface
Technical specifications
- Main features:Dimensions: Ø 18 x 4 mm
- Active surface, material: PTFE
- Connection: Cable with plug connector, special plug adapter, 2.00 m, PUR
- Series D18
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4301)
- Range 1...5 mm
- Interface: Special interface
- IP66 protection rating
- Sensitivity: Adjustable on the basis device
- Ambient temperature -30...80 °C
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 18 x 4 mm
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 4...8 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Connection: Special plug
- Short circuit protection: Not relevant
- Reverse polarity protection: Not relevant
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 5 mm
- Temperature drift max. (% of Sr): 20%
- Repeatability max. (% of Sr): 2%
- MTTF (40 °C) 1813 a
- Active surface, material: PTFE
- Size D18.0
- Flush mounting: Flush mounting
- Cable length 2 m
- Housing material: Stainless steel (1.4301)
- Sheath material: PUR
- IP66 protection rating
- Ambient temperature -30...80 °C
- Series D18
- Sensitivity: Adjustable on the basis device
- Measurement range 1...5 mm
- Cover material POM
- Interface: Special interface
- Product type
Capacitive sensor
- Type
BCS001C
- Min. operating voltage
4.0 V
- Max. operating voltage
8.0 V
- Operating voltage
4.0 - 8.0 V
- Cable length
2.00 m
- Switching frequency
100 Hz
- Model
Capacitive
- Connector
Plug
- Installation type
shielded
- Enclosure material
Stainless steel
IP66
- Min. temperature
-30 °C
- Max. temperature
80 °C
- Length
4.00 mm
- Width
4 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 4.00 mm
- Jacket material
PUR
- Nominal voltage
8.0 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417424 BALLUFF Capacitive sensor Capacitive BCS001C BCS001C shielded (Ø x L) 18 mm x 4.00 mm
User & Safety Instructions
User & Safety Instructions 3417424 BALLUFF Capacitive sensor Capacitive BCS001C BCS001C shielded (Ø x L) 18 mm x 4.00 mm
Description
Our capacitive sensor heads are used where a sensor with integrated electronics would not function optimally due to its surroundings. For example at very extreme temperatures or under the highest pressure. The compact design makes them ideal for use in confined spaces. The sensor heads are operated via a separate amplifier. Dimension=Ø 18 x 4 mm, series=D18, installation=flush, connection=cable with connector, special plug-in contact, 2.00 m, PUR, interface=special interface, range=1...5 mm, sensitivity=adjustable at the basis device, Housing material=stainless steel (1.4301), active surface, material=PTFE, ambient temperature=-30...80 °C, approval/conformity=CecULusWEEE, Protection class=IP66
