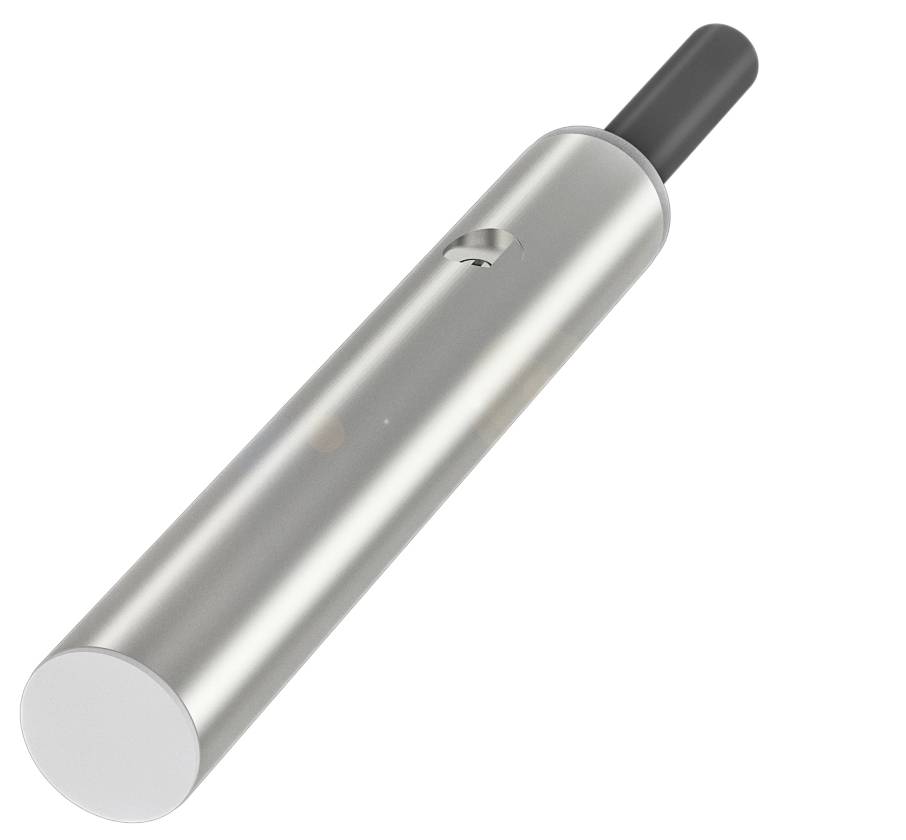

BALLUFF Capacitive sensor Capacitive BCS001L BCS001L 6.5 mm shielded PNP (Ø x H) 6.5 mm x 40.00 mm
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Model
Capacitive
Connector
Cable
Datasheet (PDF)
Highlights & Details
Balluff BCS001L Cylindrical compact design without thread
- Connection: Cable, 2.00 m, PUR
- Dimensions: Ø 6.5 x 42 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Series G06
Technical specifications
- Main features:Dimensions: Ø 6.5 x 42 mm
- Active surface, material: PTFE
- Connection: Cable, 2.00 m, PUR
- Series G06
- Operating voltage Ub 11...30 VDC
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4301)
- Range 0.1...1.5 mm
- Switching output: PNP NO
- Switching frequency 100 Hz
- Protection system: IP65
- Sensitivity: Adjustable switching distance
- Ambient temperature -10...70 °C
- Additional features:
- Scope of delivery: Screwdriver|quick start guide
- Dimensions: Ø 6.5 x 42 mm
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 50 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 11...30 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 2 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Temperature drift max. (% of Sr): 15%
- MTTF (40 °C) 444 a
- Active surface, material: PTFE
- Size D6.5
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Cable length 2 m
- Housing material: Stainless steel (1.4301)
- Sheath material: PUR
- Number of conductors: 3
- Conductor cross-section: 0.14 mm²
- Series G06
- Idle current IO max. at Ue 10 mA
- Sensitivity: Adjustable switching distance
- Measurement range 0.1...1.5 mm
- Cover material POM
- Repeatability max. (% of Sr) Functional safety: 2.0%
- Product type
Capacitive sensor
- Type
BCS001L
- Min. operating voltage
11.0 V
- Max. operating voltage
30.0 V
- Operating voltage
11.0 - 30.0 V
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Capacitive
- Installation type
shielded
- Size
6.5 mm
- Connector
Cable
- Cable length
2.00 m
- Min. temperature
-10 °C
- Max. temperature
70 °C
IP65
- Length
42.00 mm
- Width
40.00 mm
- Height
40.00 mm
- (Ø)
6.5 mm
- Dim
(Ø x H) 6.5 mm x 40.00 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- Jacket material
PUR
- Operating voltage
24 V DC
- Switching frequency
100 Hz
- Operating current
50 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417455 BALLUFF Capacitive sensor Capacitive BCS001L BCS001L 6.5 mm shielded PNP (Ø x H) 6.5 mm x 40.00 mm
User & Safety Instructions
User & Safety Instructions 3417455 BALLUFF Capacitive sensor Capacitive BCS001L BCS001L 6.5 mm shielded PNP (Ø x H) 6.5 mm x 40.00 mm
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). Dimensions = Ø 6.5 x 42 mm, series = G06, installation = flush, connection = cable, 2.00 m, PUR, switching output=PNP NO (NO), switching frequency=100 Hz, range=0.1...1.5 mm, sensitivity=switching distance adjustable, Housing material=stainless steel (1.4301), active surface, material=PTFE, ambient temperature=-10...70 °C, operating voltage Ub=11...30 VDC, Approval/conformity=CecULusWEEE, protection class=IP65
