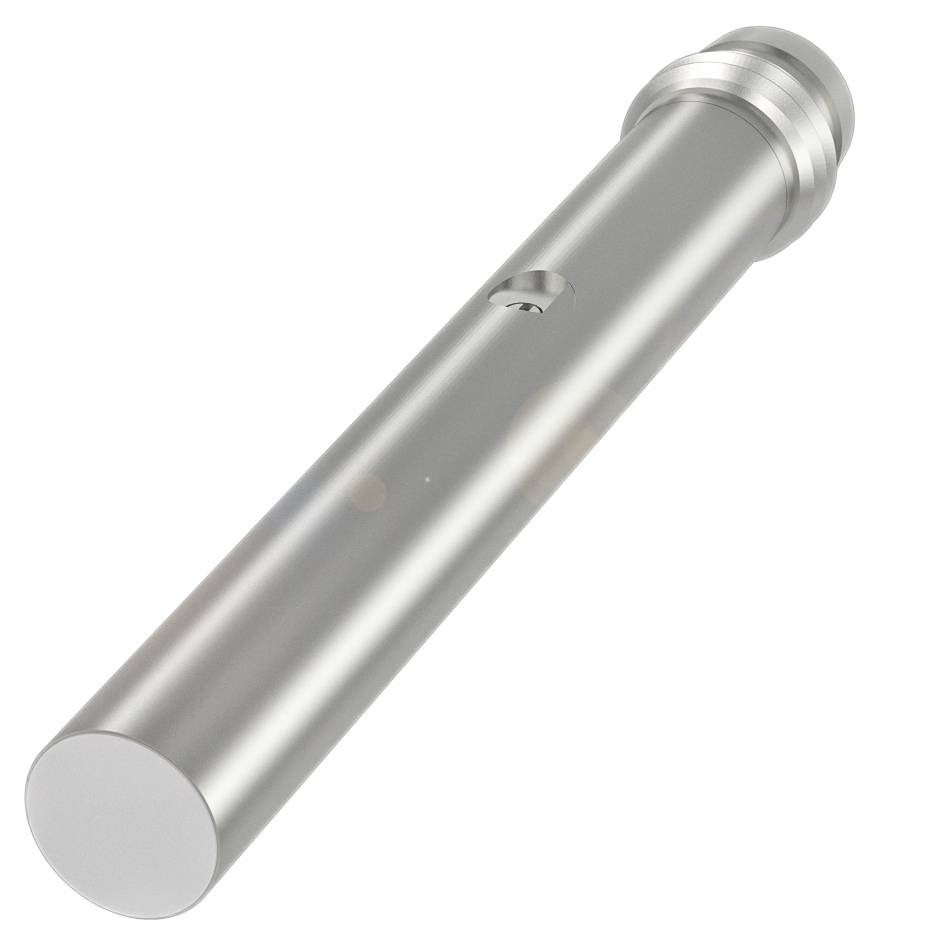

BALLUFF Capacitive sensor Capacitive BCS001R BCS001R 6.5 mm shielded PNP (Ø x H) 6.5 mm x 54 mm
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Contact type
1 maker
Switching distance (max.)
1.5 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BCS001R Cylindrical compact design without thread
- Connection: Plug connector, M8x1 plug, 3-pin
- Dimensions: Ø 6.5 x 54 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Series G06
Technical specifications
- Main features:Dimensions: Ø 6.5 x 54 mm
- Active surface, material: PTFE
- Connection: Plug connector, M8x1 plug, 3-pin
- Series G06
- Operating voltage Ub 11...30 VDC
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4301)
- Range 0.1...1.5 mm
- Switching output: PNP NO
- Switching frequency 100 Hz
- Protection system: IP65
- Sensitivity: Adjustable switching distance
- Ambient temperature -10...70 °C
- Additional features:
- Scope of delivery: Screwdriver|quick start guide
- Dimensions: Ø 6.5 x 54 mm
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 50 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 11...30 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 2 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Temperature drift max. (% of Sr): 15%
- Repeatability max. (% of Sr): 2.0%
- MTTF (40 °C) 444 a
- Active surface, material: PTFE
- Size D6.5
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Housing material: Stainless steel (1.4301)
- Number of pins: 3
- Series G06
- Idle current IO max. at Ue 10 mA
- Sensitivity: Adjustable switching distance
- Measurement range 0.1...1.5 mm
- Product type
Capacitive sensor
- Type
BCS001R
- Min. operating voltage
11.0 V
- Max. operating voltage
30.0 V
- Operating voltage
11.0 - 30.0 V
- Contact type
1 maker
- Switching distance (max.)
1.5 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Capacitive
- Material properties
rust-proof
- Installation type
shielded
- Size
6.5 mm
- Connector
Plug
- Min. temperature
-10 °C
- Max. temperature
70 °C
IP65
- Length
54.00 mm
- Width
54 mm
- Height
54 mm
- (Ø)
6.5 mm
- Dim
(Ø x H) 6.5 mm x 54 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Switching frequency
100 Hz
- Operating current
50 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417362 BALLUFF Capacitive sensor Capacitive BCS001R BCS001R 6.5 mm shielded PNP (Ø x H) 6.5 mm x 54 mm
User & Safety Instructions
User & Safety Instructions 3417362 BALLUFF Capacitive sensor Capacitive BCS001R BCS001R 6.5 mm shielded PNP (Ø x H) 6.5 mm x 54 mm
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). Dimension=Ø 6.5 x 54 mm, series=G06, built-in=flush, connection=plug connector, M8x1 plug, 3-pole, switching output = PNP NO (NO), switching frequency = 100 Hz, range = 0.1...1.5 mm, sensitivity = adjustable switching distance, Housing material=stainless steel (1.4301), active surface, material=PTFE, ambient temperature=-10...70 °C, operating voltage Ub=11...30 VDC, Approval/conformity=CecULusWEEE, protection class=IP65
