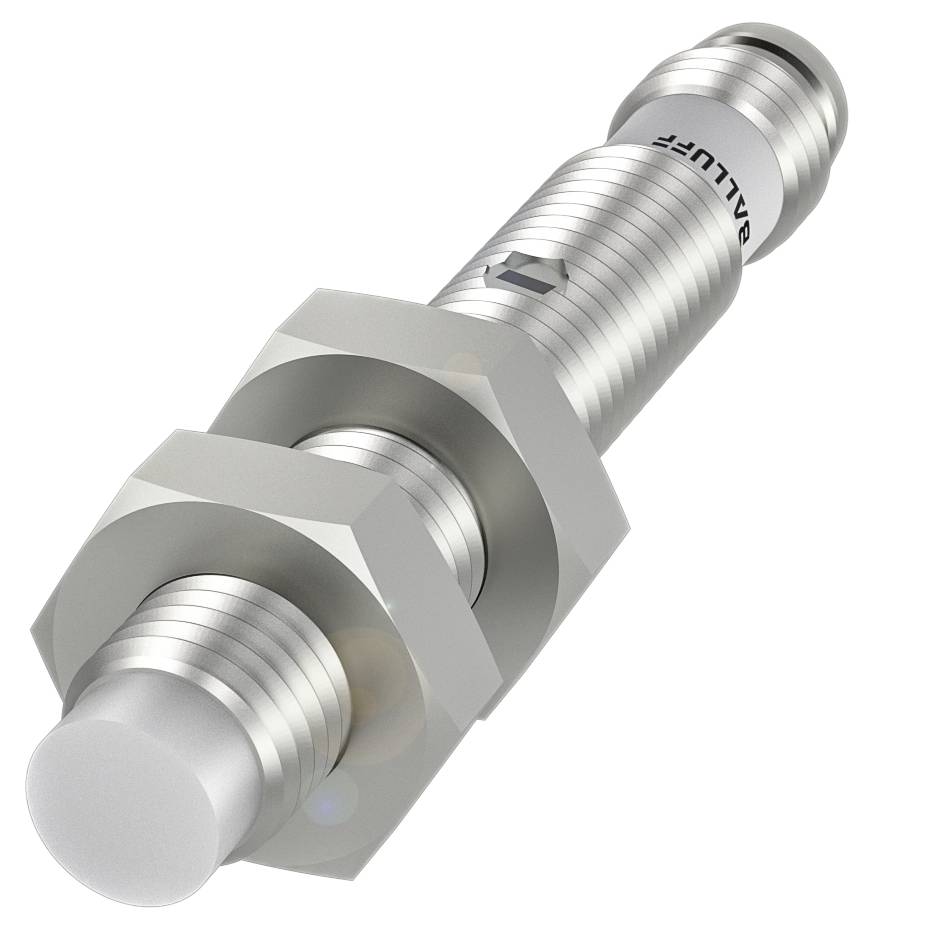

BALLUFF Capacitive sensor Capacitive BCS002N BCS002N M8 non-shielded PNP (Ø x L) 8 mm x 54.00 mm
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Model
Capacitive
Connector
M8
Datasheet (PDF)
Highlights & Details
Balluff BCS002N Cylindrical compact design with M5 or M8 thread
- Connection: Plug connector, M8x1 plug, 3-pin
- Dimensions: Ø 8 x 54 mm
- Fitting: Non-shielded
- Switching output: PNP NC
- M08 series
Technical specifications
- Main features:Dimensions: Ø 8 x 54 mm
- Active surface, material: PTFE
- Connection: Plug connector, M8x1 plug, 3-pin
- M08 series
- Operating voltage Ub 11...30 VDC
- Fitting: Non-shielded
- Housing material: Stainless steel (1.4301)
- Switching output: PNP NC
- Switching frequency 100 Hz
- Protection system: IP65
- Sensitivity: Adjustable switching distance
- Ambient temperature -10...70 °C
- Additional features:
- Supplied with: Nut (2x)|screwdriver|quick start guide
- Dimensions: Ø 8 x 54 mm
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 50 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 100 ms
- Operating voltage Ub 11...30 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 2 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 3 mm
- Temperature drift max. (% of Sr): 15%
- Repeatability max. (% of Sr): 2.0%
- MTTF (40 °C) 444 a
- Active surface, material: PTFE
- Tightening torque 6 Nm
- Size M8x1
- Fitting: Non-shielded
- Switching output: PNP NC
- Housing material: Stainless steel (1.4301)
- Number of pins: 3
- M08 series
- Idle current IO max. at Ue 10 mA
- Sensitivity: Adjustable switching distance
- Measurement range 0.1...3 mm
- Thread (A) M8x1
- Product type
Capacitive sensor
- Type
BCS002N
- Min. operating voltage
11.0 V
- Max. operating voltage
30.0 V
- Operating voltage
11.0 - 30.0 V
- Outputs
PNP
- Switching frequency
100 Hz
- Model
Capacitive
- Connector
M8
- Installation type
non-shielded
- Size
M8
- Enclosure material
Stainless steel
IP65
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
54.00 mm
- Width
54 mm
- (Ø)
8 mm
- Dim
(Ø x L) 8 mm x 54.00 mm
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Operating current
50 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417112 BALLUFF Capacitive sensor Capacitive BCS002N BCS002N M8 non-shielded PNP (Ø x L) 8 mm x 54.00 mm
User & Safety Instructions
User & Safety Instructions 3417112 BALLUFF Capacitive sensor Capacitive BCS002N BCS002N M8 non-shielded PNP (Ø x L) 8 mm x 54.00 mm
Description
These capacitive sensors for level detection detect with their active surface the product, bulk material or liquids to be scanned in contact with the medium. Its spherical electrical field effectively compensates for adhesion to the active surface of the sensor. Dimension=Ø 8 x 54 mm, series=M08, thread (A)=M8x1, mounting=not flush, connection=plug connector, M8x1 plug, 3-pin, switching output=PNP NC, switching frequency=100 Hz, range=0.1...3 mm, Sensitivity = adjustable switching distance, case material = stainless steel (1.4301), active surface, material = PTFE, ambient temperature = 10...70 °C, Operating voltage Ub=11...30 VDC, approval/conformity=CecULusWEEE, protection class=IP65
