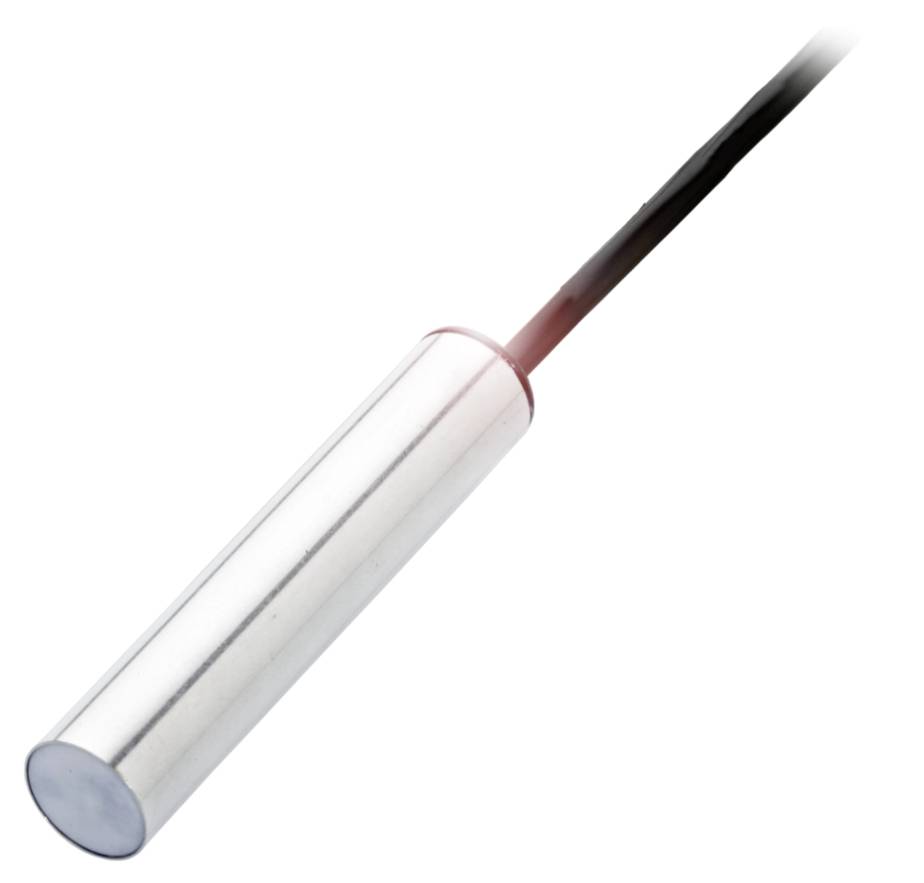

Image similar
Image similar
BALLUFF Capacitive sensor Capacitive BCS002T BCS002T 10 shielded PNP (Ø x H) 10 mm x 50 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
35.0 V
Outputs
PNP
Model
Capacitive
Connector
Cable
Datasheet (PDF)
Highlights & Details
Balluff BCS002T Cylindrical compact design without thread
- Connection: Cable, 2.00 m, PUR
- Dimensions: Ø 10 x 50 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- G10 Series
Technical specifications
- Main features:Dimensions: Ø 10 x 50 mm
- Active surface, material: PTFE
- Connection: Cable, 2.00 m, PUR
- G10 Series
- Operating voltage Ub 12...35 VDC
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4301)
- Range 1...4 mm
- Switching output: PNP NO
- Switching frequency 100 Hz
- Protection system: IP65
- Sensitivity: Adjustable switching distance
- Ambient temperature -30...70 °C
- Additional features:
- Scope of delivery: Screwdriver|quick start guide
- Dimensions: Ø 10 x 50 mm
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 12...35 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 0.8 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 4 mm
- Temperature drift max. (% of Sr): 20%
- MTTF (40 °C) 450 a
- Active surface, material: PTFE
- Size D10.0
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Cable length 2 m
- Housing material: Stainless steel (1.4301)
- Sheath material: PUR
- Number of conductors: 3
- Conductor cross-section: 0.14 mm²
- G10 Series
- Idle current IO max. at Ue 15 mA
- Sensitivity: Adjustable switching distance
- Measurement range 1...4 mm
- Cover material POM
- Repeatability max. (% of Sr) Functional safety: 2.0%
- Product type
Capacitive sensor
- Type
BCS002T
- Min. operating voltage
12.0 V
- Max. operating voltage
35.0 V
- Operating voltage
12.0 - 35.0 V
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Capacitive
- Installation type
shielded
- Size
10
- Connector
Cable
- Cable length
2.00 m
- Min. temperature
-30 °C
- Max. temperature
70 °C
IP65
- Length
50.00 mm
- Width
50 mm
- Height
50 m
- (Ø)
10 mm
- Dim
(Ø x H) 10 mm x 50 m
- Content
1 pc(s)
- Nominal voltage
35.0 V
- Jacket material
PUR
- Operating voltage
24 V DC
- Switching frequency
100 Hz
- Operating current
200 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417178 BALLUFF Capacitive sensor Capacitive BCS002T BCS002T 10 shielded PNP (Ø x H) 10 mm x 50 m
User & Safety Instructions
User & Safety Instructions 3417178 BALLUFF Capacitive sensor Capacitive BCS002T BCS002T 10 shielded PNP (Ø x H) 10 mm x 50 m
Description
Balluff capacitive sensors are available in various designs with a wide range of connectors and cables. With switch or analog output or with IO-Link interface. In addition, especially economical models are available. Dimensions = Ø 10 x 50 mm, series = G10, installation = flush mounting, connection = cable, 2.00 m, PUR, switching output = PNP NO, switching frequency = 100 Hz, range = 1...4 mm, sensitivity = adjustable switching distance, housing material = stainless steel (1.4301), active surface, material = PTFE, ambient temperature = -30...70 °C, Operating voltage Ub = 12...35 VDC, approval/conformity = CE, UKCA, cULus, WEEE, Protection class = IP65
