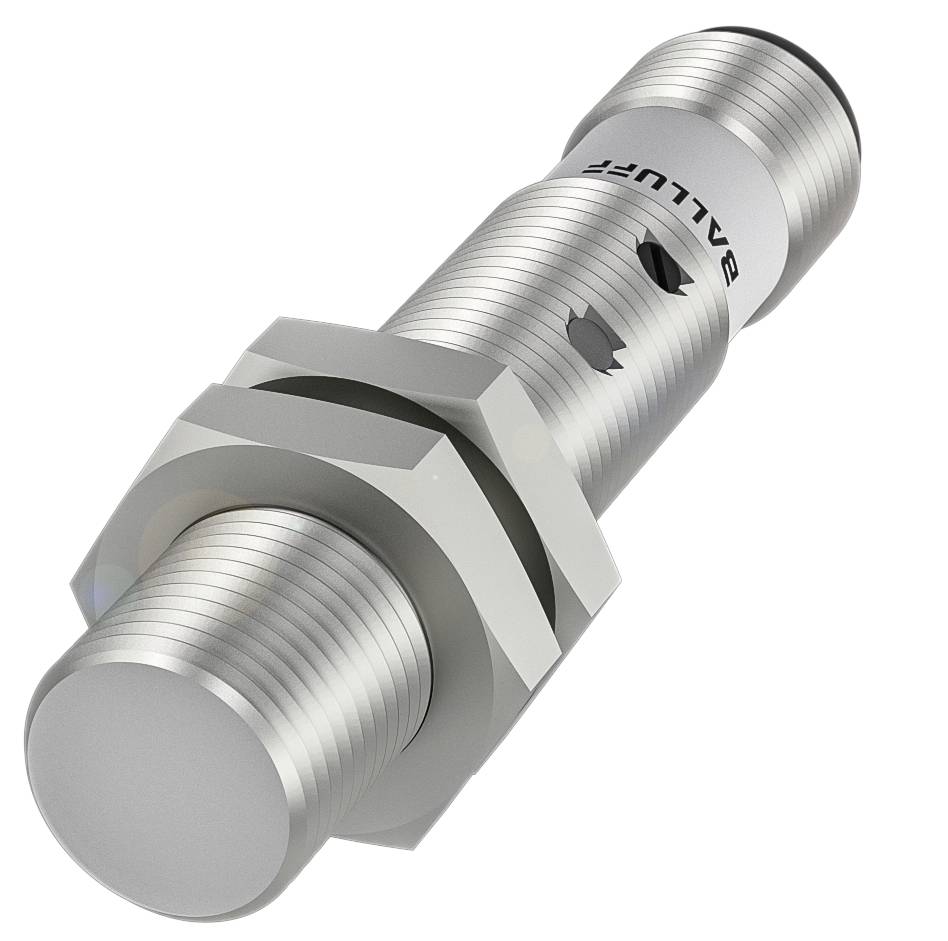

BALLUFF Capacitive sensor Capacitive BCS0037 BCS0037 M12 shielded PNP (Ø x L) 12 mm x 60.00 mm
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
35.0 V
Contact type
1 PNP
Outputs
PNP
Model
Capacitive
Datasheet (PDF)
Highlights & Details
Balluff BCS0037 Capacitive proximity switches for object detection
- Connection: Connector, M12x1 connector, 4-pin
- Dimensions: Ø 12 x 60 mm
- Flush mounting: Flush mounting
- M12 series
- Thread (A) M12x1
Technical specifications
- Main features:Dimensions: Ø 12 x 60 mm
- Active surface, material: PTFE
- Connection: Connector, M12x1 connector, 4-pin
- M12 series
- Operating voltage Ub 12...35 VDC
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4301)
- Thread (A) M12x1
- Range 1...4 mm
- Switching output: PNP NO
- Switching frequency 100 Hz
- Protection system: IP65
- Sensitivity: Adjustable switching distance
- Ambient temperature -30...70 °C
- Additional features:
- Supplied with: Nut (2x)|screwdriver|quick start guide
- Dimensions: Ø 12 x 60 mm
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 12...35 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 1.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 4 mm
- Temperature drift max. (% of Sr): 20%
- Repeatability max. (% of Sr): 2.0%
- MTTF (40 °C) 584 a
- Active surface, material: PTFE
- Tightening torque 8 Nm
- Size M12x1
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Housing material: Stainless steel (1.4301)
- Number of pins: 4
- M12 series
- Idle current IO max. at Ue 12 mA
- Sensitivity: Adjustable switching distance
- Measurement range 1...4 mm
- Cover material PA
- Thread (A) M12x1
- Product type
Capacitive sensor
- Type
BCS0037
- Min. operating voltage
12.0 V
- Max. operating voltage
35.0 V
- Operating voltage
12.0 - 35.0 V
- Contact type
1 PNP
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Capacitive
- Installation type
shielded
- Size
M12
- Connector
M12
- Min. temperature
-30 °C
- Max. temperature
70 °C
IP65
- Length
60.00 mm
- Width
60 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 60.00 mm
- Content
1 pc(s)
- Nominal voltage
35.0 V
- Operating voltage
24 V DC
- Switching frequency
100 Hz
- Operating current
200 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416545 BALLUFF Capacitive sensor Capacitive BCS0037 BCS0037 M12 shielded PNP (Ø x L) 12 mm x 60.00 mm
User & Safety Instructions
User & Safety Instructions 3416545 BALLUFF Capacitive sensor Capacitive BCS0037 BCS0037 M12 shielded PNP (Ø x L) 12 mm x 60.00 mm
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). M12, Capacitive Sensor, M12x1, Connector, NO, PNP, 4 mm, flush
