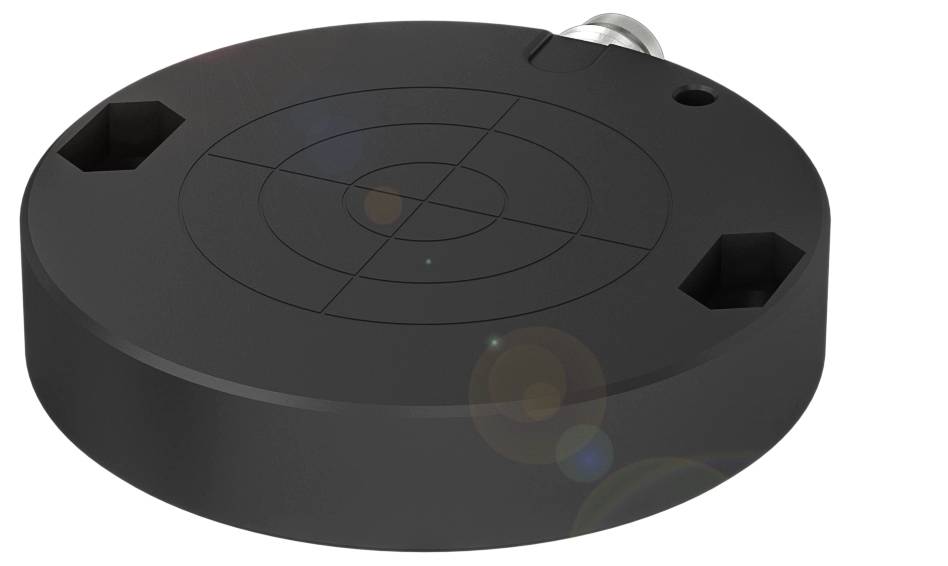

BALLUFF Capacitive sensor Capacitive BCS003L BCS003L shielded NPN, change-over, PNP, change-over (Ø x H) 50 mm x 10 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Outputs
NPN, change-over, PNP, change-over
Model
Capacitive
Connector
Plug
Datasheet (PDF)
Highlights & Details
Balluff BCS003L Easily mountable disc design with and without threaded hole
- Connection: Plug connector, M8x1 plug, 3-pin
- Dimensions: Ø 50 x 10 mm
- Flush mounting: Flush mounting
- Switching output PNP/NPN NO/NC programmable
- Series D50
Technical specifications
- Main features:Dimensions: Ø 50 x 10 mm
- Active surface, material: POM
- Connection: Plug connector, M8x1 plug, 3-pin
- Series D50
- Operating voltage Ub 10...30 VDC
- Flush mounting: Flush mounting
- POM casing material
- Range 2...25 mm
- Switching output PNP/NPN NO/NC programmable
- Switching frequency 50 Hz
- Protection system: IP65
- Sensitivity: Adjustable switching distance
- Ambient temperature -30...60 °C
- Additional features:
- Scope of delivery: Screwdriver|quick start guide
- Dimensions: Ø 50 x 10 mm
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 150 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 50 Hz
- Static voltage drop: 1.5 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- MTTF (40 °C) 230 a
- Active surface, material: POM
- Size D50.0
- Flush mounting: Flush mounting
- Switching output: PNP/NPN NO/NC (NO/|NC) can be programmed
- POM casing material
- Protection system: IP65
- Ambient temperature -30...60 °C
- Pollution level 1
- Number of pins: 3
- Series D50
- Idle current IO max. at Ue 15 mA
- Sensitivity: Adjustable switching distance
- Measurement range 2...25 mm
- Cover material POM
- Product type
Capacitive sensor
- Type
BCS003L
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
NPN, change-over, PNP, change-over
- Enclosure material
POM
- Model
Capacitive
- Installation type
shielded
- Connector
Plug
- Min. temperature
-30 °C
- Max. temperature
60 °C
IP65
- Length
10.00 mm
- Width
10 mm
- Height
10 m
- (Ø)
50 mm
- Dim
(Ø x H) 50 mm x 10 m
- Content
1 pc(s)
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Switching frequency
50 Hz
- Operating current
150 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417224 BALLUFF Capacitive sensor Capacitive BCS003L BCS003L shielded NPN, change-over, PNP, change-over (Ø x H) 50 mm x 10 m
User & Safety Instructions
User & Safety Instructions 3417224 BALLUFF Capacitive sensor Capacitive BCS003L BCS003L shielded NPN, change-over, PNP, change-over (Ø x H) 50 mm x 10 m
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). Dimension=Ø 50 x 10 mm, series=D50, built-in=flush, connection=plug connector, M8x1 plug, 3-pole, switching output=PNP/NPN NO/NC contact (NO/NC) programmable, switching frequency=50 Hz, range=2...25 mm, sensitivity=switching distance adjustable, housing material=POM, Active surface, material=POM, ambient temperature=-30...60 °C, operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE, Protection class = IP65
