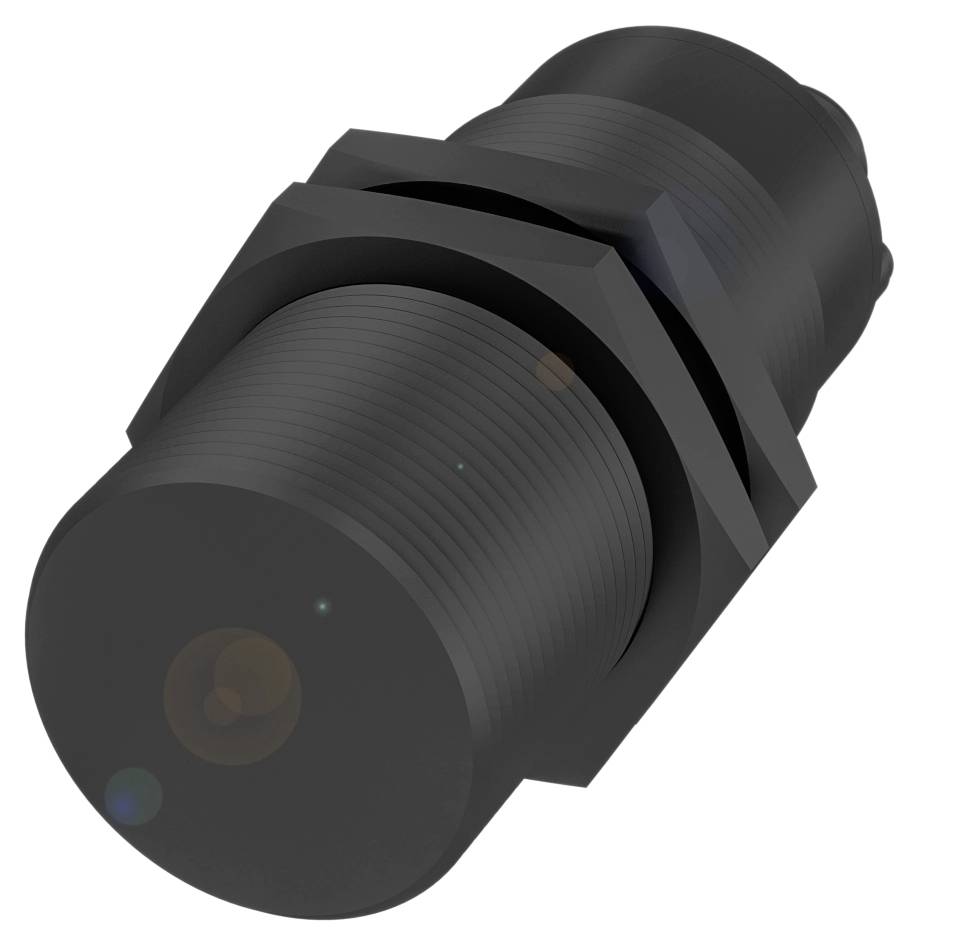

BALLUFF Capacitive sensor Capacitive BCS004M BCS004M M30 shielded PNP (Ø x H) 30 mm x 87 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
35.0 V
Outputs
PNP
Model
Capacitive
Connector
Plug
Datasheet (PDF)
Highlights & Details
Balluff BCS004M Cylindrical version with M30 thread
- Connection: Connector, M12x1 connector, 4-pin
- Dimensions: Ø 30 x 87 mm
- Flush mounting: Flush mounting
- Series M30
- Thread (A) M30x1.5
Technical specifications
- Main features:Dimensions: Ø 30 x 87 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 4-pin
- Series M30
- Operating voltage Ub 10...35 VDC
- Flush mounting: Flush mounting
- PBT casing material
- Thread (A) M30x1.5
- Range 1...20 mm
- Switching output: PNP NO/NC (NO/NC) can be programmed
- Switching frequency 100 Hz
- IP66 protection rating
- Sensitivity: Adjustable switching distance
- Ambient temperature -30...70 °C
- Additional features:
- Supplied with: Nut (2x)|quick start guide|screwdriver
- Dimensions: Ø 30 x 87 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating current Ie 300 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 10...35 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 1.8 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 20 mm
- Temperature drift max. (% of Sr): 20%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 455 a
- Active surface, material: PBT
- Tightening torque 4 Nm
- Size M30x1.5
- Flush mounting: Flush mounting
- Switching output PNP NO/NC
- PBT casing material
- IP66, IP64 at the plug output
- Ambient temperature -30...70 °C
- Pollution level 1
- Number of pins: 4
- Series M30
- Idle current IO max. at Ue 18 mA
- Sensitivity: Adjustable switching distance
- Measurement range 1...20 mm
- Cover material PBT|PE
- Thread (A) M30x1.5
- Product type
Capacitive sensor
- Type
BCS004M
- Min. operating voltage
10.0 V
- Max. operating voltage
35.0 V
- Operating voltage
10.0 - 35.0 V
- Outputs
PNP
- Switching frequency
100 Hz
- Model
Capacitive
- Connector
Plug
- Installation type
shielded
- Size
M30
- Enclosure material
PBT
- Contact type
1 PNP
IP66
- Min. temperature
-30 °C
- Max. temperature
70 °C
- Length
87.00 mm
- Width
87 mm
- Height
87 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 87 m
- Nominal voltage
35.0 V
- Operating current
300 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417520 BALLUFF Capacitive sensor Capacitive BCS004M BCS004M M30 shielded PNP (Ø x H) 30 mm x 87 m
User & Safety Instructions
User & Safety Instructions 3417520 BALLUFF Capacitive sensor Capacitive BCS004M BCS004M M30 shielded PNP (Ø x H) 30 mm x 87 m
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). Dimension=Ø 30 x 87 mm, series=M30, thread (A)=M30x1.5, build-in=flush, connection=plug connector, M12x1 plug, 4-pin, switching output=PNP NO/NC programmable, switching frequency=100 Hz, range=1...20 mm, sensitivity=switching distance adjustable, housing material=PBT, Active surface, material=PBT, ambient temperature=-30...70 °C, operating voltage Ub=10...35 VDC, approval/conformity=CecULusWEEE, Protection class=IP66
