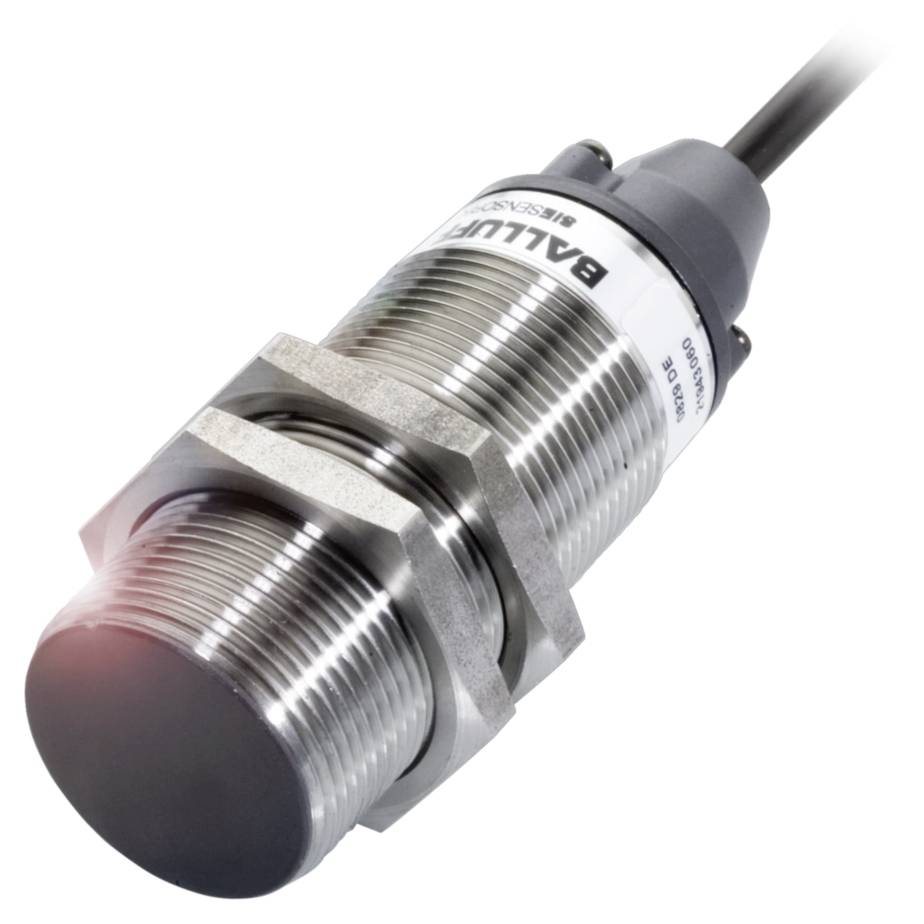

BALLUFF Capacitive sensor Capacitive BCS004P BCS004P M30 shielded PNP (Ø x H) 30 mm x 82 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
35.0 V
Outputs
PNP
Model
Capacitive
Connector
Cable
Datasheet (PDF)
Highlights & Details
Balluff BCS004P Capacitive proximity switches for object detection
- Connection: Cable, 2.00 m, PUR
- Dimensions: Ø 30 x 82 mm
- Flush mounting: Flush mounting
- Series M30
- Thread (A) M30x1.5
Technical specifications
- Main features:Dimensions: Ø 30 x 82 mm
- Active surface, material: PBT
- Connection: Cable, 2.00 m, PUR
- Series M30
- Operating voltage Ub 10...35 VDC
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4301)
- Thread (A) M30x1.5
- Range 1...20 mm
- Switching output: PNP NO/NC (NO/NC) can be programmed
- Switching frequency 100 Hz
- IP66 protection rating
- Sensitivity: Adjustable switching distance
- Ambient temperature -30...70 °C
- Additional features:
- Supplied with: Nut (2x)|screwdriver|quick start guide
- Dimensions: Ø 30 x 82 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 300 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 10...35 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 1.8 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 20 mm
- Temperature drift max. (% of Sr): 20%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 455 a
- Active surface, material: PBT
- Tightening torque 90 Nm
- Size M30x1.5
- Flush mounting: Flush mounting
- Switching output PNP NO/NC
- Cable length 2 m
- Housing material: Stainless steel (1.4301)
- Sheath material: PUR
- IP66, IP64 at the cable outlet
- Ambient temperature -30...70 °C
- Pollution level 1
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Series M30
- Idle current IO max. at Ue 18 mA
- Sensitivity: Adjustable switching distance
- Measurement range 1...20 mm
- Cover material PBT|PE
- Thread (A) M30x1.5
- Product type
Capacitive sensor
- Type
BCS004P
- Min. operating voltage
10.0 V
- Max. operating voltage
35.0 V
- Operating voltage
10.0 - 35.0 V
- Outputs
PNP
- Cable length
2.00 m
- Switching frequency
100 Hz
- Model
Capacitive
- Connector
Cable
- Installation type
shielded
- Size
M30
- Material properties
rust-proof
- Enclosure material
Stainless steel
- Contact type
1 PNP
IP66
- Min. temperature
-30 °C
- Max. temperature
70 °C
- Length
82.00 mm
- Width
82 mm
- Height
82 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 82 m
- Jacket material
PUR
- Nominal voltage
35.0 V
- Operating voltage
24 V DC
- Operating current
300 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417211 BALLUFF Capacitive sensor Capacitive BCS004P BCS004P M30 shielded PNP (Ø x H) 30 mm x 82 m
User & Safety Instructions
User & Safety Instructions 3417211 BALLUFF Capacitive sensor Capacitive BCS004P BCS004P M30 shielded PNP (Ø x H) 30 mm x 82 m
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). M30, capacitive sensor, M30x1.5, cable, NO/NC (NO/NC), PNP, 20 mm, flush
