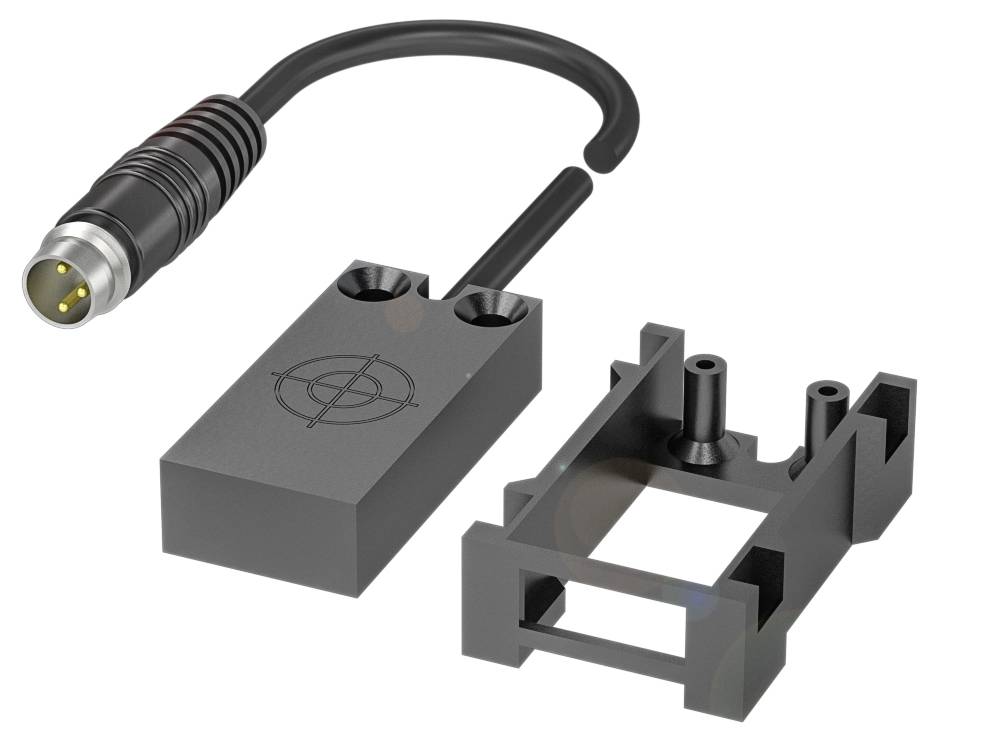

BALLUFF Capacitive sensor Capacitive BCS0055 BCS0055 shielded PNP (L x W x H) 8.00 x 34.00 x 16.00 mm
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Model
Capacitive
Connector
Plug
Datasheet (PDF)
Highlights & Details
BCS0055 Cubic design with learning switching distance
- Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.20 m, PUR
- Dimensions 34 x 16 x 8 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- R08 series
Technical specifications
- Main features:Dimension 34 x 16 x 8 mm
- Active surface, material: PP
- Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.20 m, PUR
- R08 series
- Operating voltage Ub 12...30 VDC
- Flush mounting: Flush mounting
- Housing material PP
- Range 1...8 mm
- Switching output: PNP NO
- Switching frequency 100 Hz
- Protection class IP67
- Sensitivity: Adjustable switching distance
- Ambient temperature -30...70 °C
- Additional features:
- Scope of delivery: Screwdriver|holder|quick start guide
- Dimensions 34 x 16 x 8 mm
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 50 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 100 ms
- Operating voltage Ub 12...30 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 1.5 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 8 mm
- Temperature drift max. (% of Sr): 20%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 680 a
- Active surface, material: PP
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Cable diameter D 3.0 mm
- Cable length 0.2 m
- Housing material PP
- Sheath material: PUR
- Number of pins: 3
- R08 series
- Idle current IO max. at Ue 10 mA
- Sensitivity: Adjustable switching distance
- Measurement range 1...8 mm
- Cover material PP
- Product type
Capacitive sensor
- Type
BCS0055
- Min. operating voltage
12.0 V
- Max. operating voltage
30.0 V
- Operating voltage
12.0 - 30.0 V
- Outputs
PNP
- Enclosure material
PP
- Model
Capacitive
- Installation type
shielded
- Connector
Plug
- Cable length
0.20 m
- Min. temperature
-30 °C
- Max. temperature
70 °C
IP67
- Length
8.00 mm
- Width
34.00 mm
- Height
16.00 mm
- Depth
8 m
- Dim
(L x W x H) 8.00 x 34.00 x 16.00 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- Jacket material
PUR
- Operating voltage
24 V DC
- Switching frequency
100 Hz
- Operating current
50 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416542 BALLUFF Capacitive sensor Capacitive BCS0055 BCS0055 shielded PNP (L x W x H) 8.00 x 34.00 x 16.00 mm
User & Safety Instructions
User & Safety Instructions 3416542 BALLUFF Capacitive sensor Capacitive BCS0055 BCS0055 shielded PNP (L x W x H) 8.00 x 34.00 x 16.00 mm
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). Dimensions=34 x 16 x 8 mm, series=R08, installation=flush, connection=cable with connector, M8x1 connector, 3-pole, 0.20 m, PUR, switching output = PNP NO, switching frequency = 100 Hz, Range=1...8 mm, sensitivity=switching distance adjustable, casing material=PP, active surface, material=PP, Ambient temperature=-30...70 °C, operating voltage Ub=12...30 VDC, approval/conformity=CecULusWEEE, protection class=IP67
